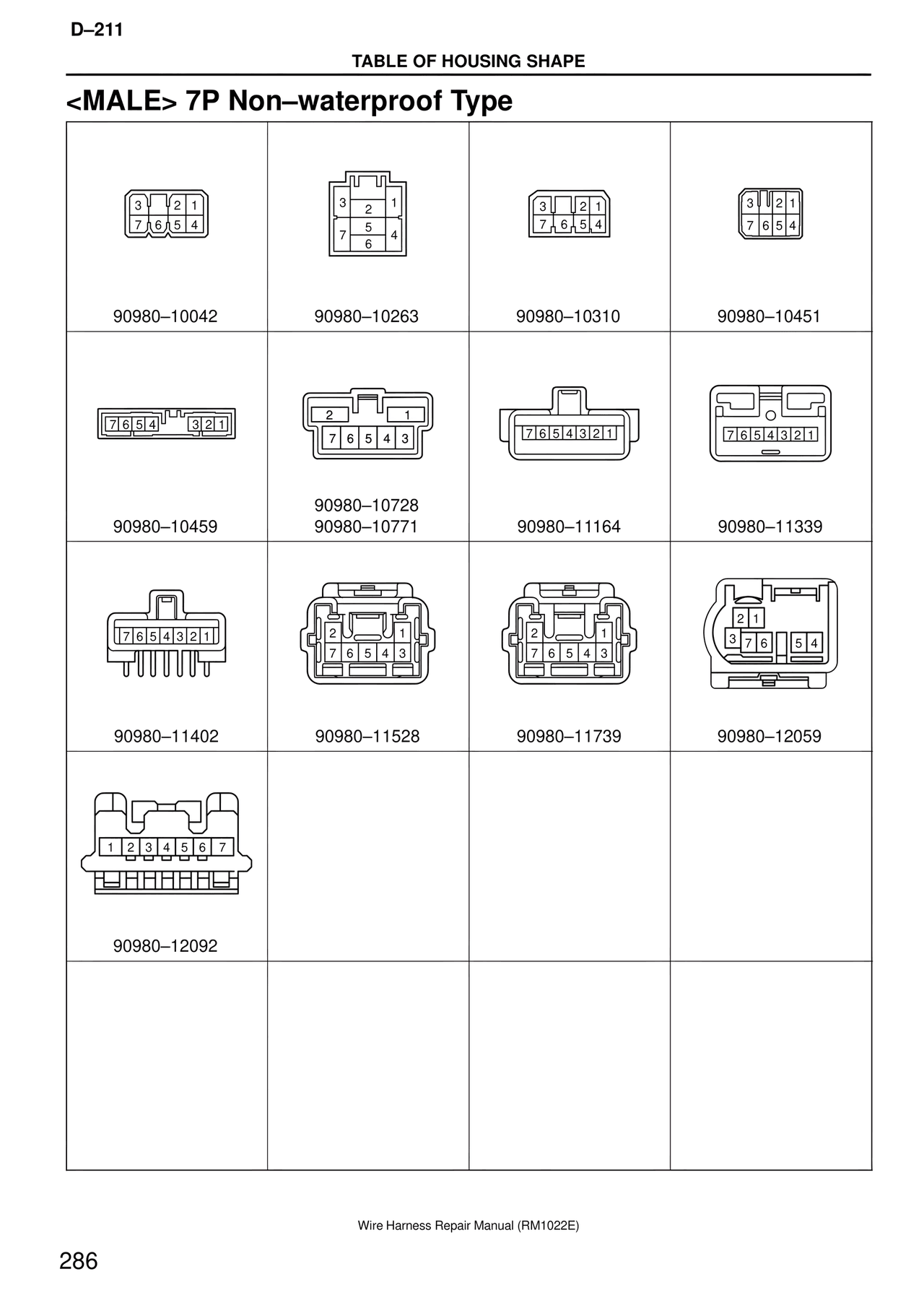

<male> 7P Non–waterproof Type — MK4 Supra Wire Harness, page 286
100%
Page text (OCR transcript)
D–211

TABLE OF HOUSING SHAPE

<MALE> 7P Non–waterproof Type

3  2  1
7  6  5  4

90980–10042

3    2    1
7    5    4
     6

90980–10263

3   2  1
7  6  5  4

90980–10310

3  2  1
7  6  5  4

90980–10451

7  6  5  4    3  2  1

90980–10459

2       1
7  6  5  4  3

90980–10728
90980–10771

7  6  5  4  3  2  1

90980–11164

7  6  5  4  3  2  1

90980–11339

7  6  5  4  3  2  1

90980–11402

2       1
7  6  5  4  3

90980–11528

2       1
7  6  5  4  3

90980–11739

2  1
3  7  6    5  4

90980–12059

1  2  3  4  5  6  7

90980–12092

Wire Harness Repair Manual (RM1022E)

286
