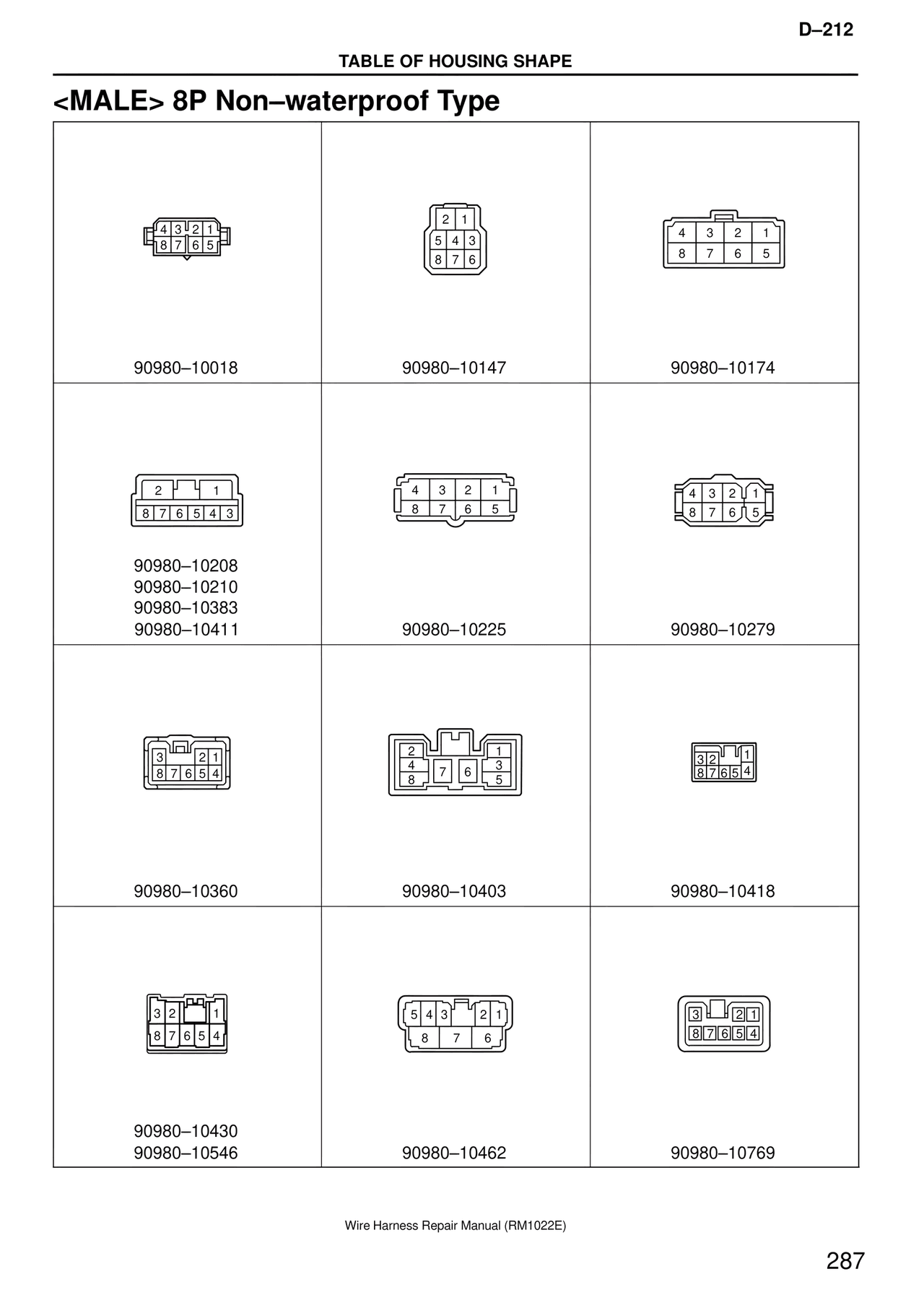

TABLE OF HOUSING SHAPE

<MALE> 8P Non–waterproof Type

4 3 2 1
8 7 6 5

90980–10018

2 1
5 4 3
8 7 6

90980–10147

4 3 2 1
8 7 6 5

90980–10174

2 1
8 7 6 5 4 3

90980–10208
90980–10210
90980–10383
90980–10411

4 3 2 1
8 7 6 5

90980–10225

4 3 2 1
8 7 6 5

90980–10279

3 2 1
8 7 6 5 4

90980–10360

2 1
4 7 6 3
8 5

90980–10403

3 2 1
8 7 6 5 4

90980–10418

3 2 1
8 7 6 5 4

90980–10430
90980–10546

5 4 3 2 1
8 7 6

90980–10462

3 2 1
8 7 6 5 4

90980–10769
