D–213

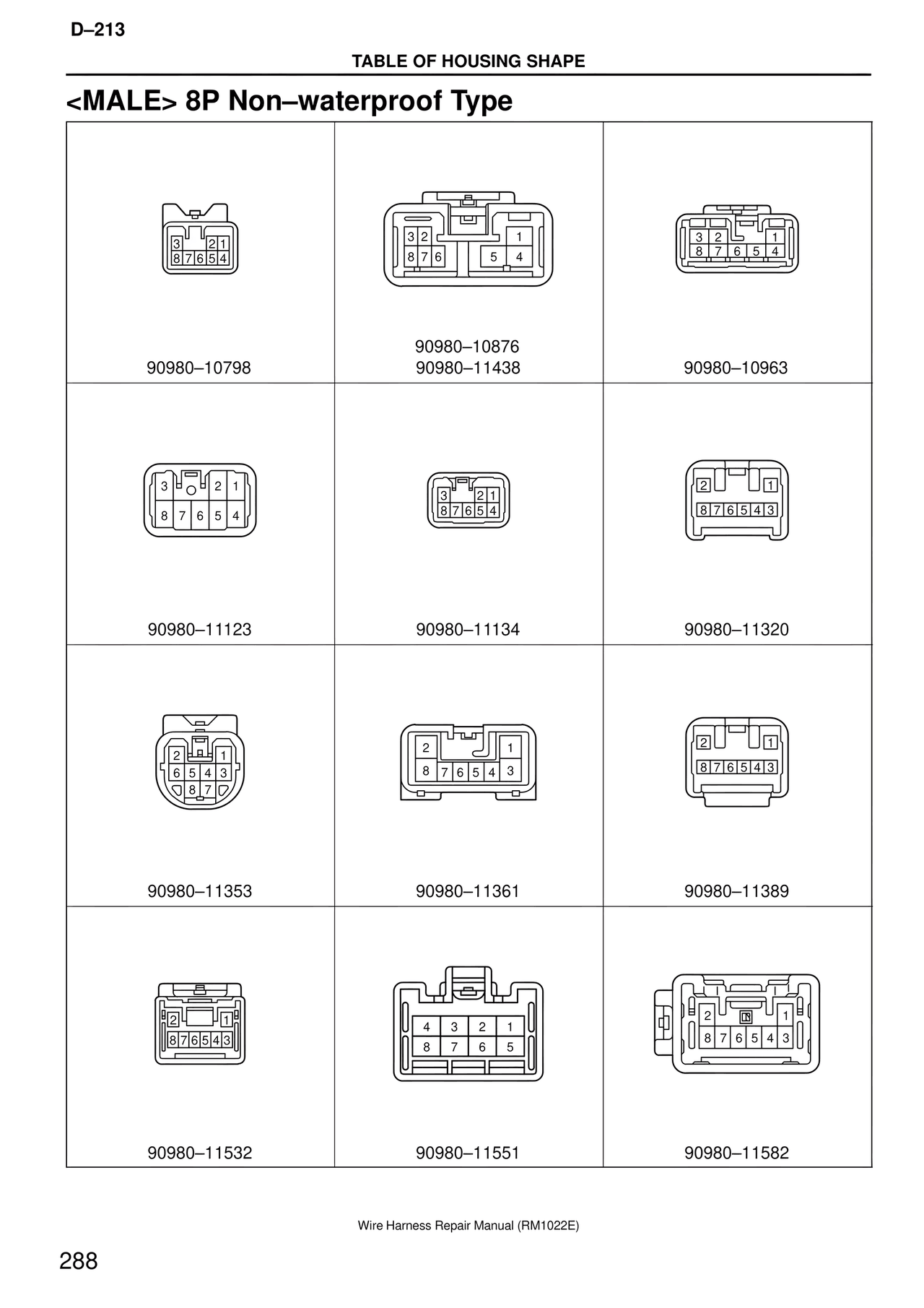

TABLE OF HOUSING SHAPE

<MALE> 8P Non–waterproof Type

3  2  1
8  7  6  5  4

90980–10798

3  2       1
8  7  6    5    4

90980–10876
90980–11438

3  2    1
8  7  6  5  4

90980–10963

3    O   2  1
8   7   6   5   4

90980–11123

3    2  1
8  7  6  5  4

90980–11134

2        1
8  7  6  5  4  3

90980–11320

2    1
6  5  4  3
8  7

90980–11353

2          1
8   7  6  5  4   3

90980–11361

2        1
8  7  6  5  4  3

90980–11389

2      1
8  7  6  5  4  3

90980–11532

4   3   2   1
8   7   6   5

90980–11551

2        1
8   7   6   5   4   3

90980–11582

Wire Harness Repair Manual (RM1022E)

288
