WH/Wire Harness — <male> 8P Non–waterproof Type, page 289

D–214

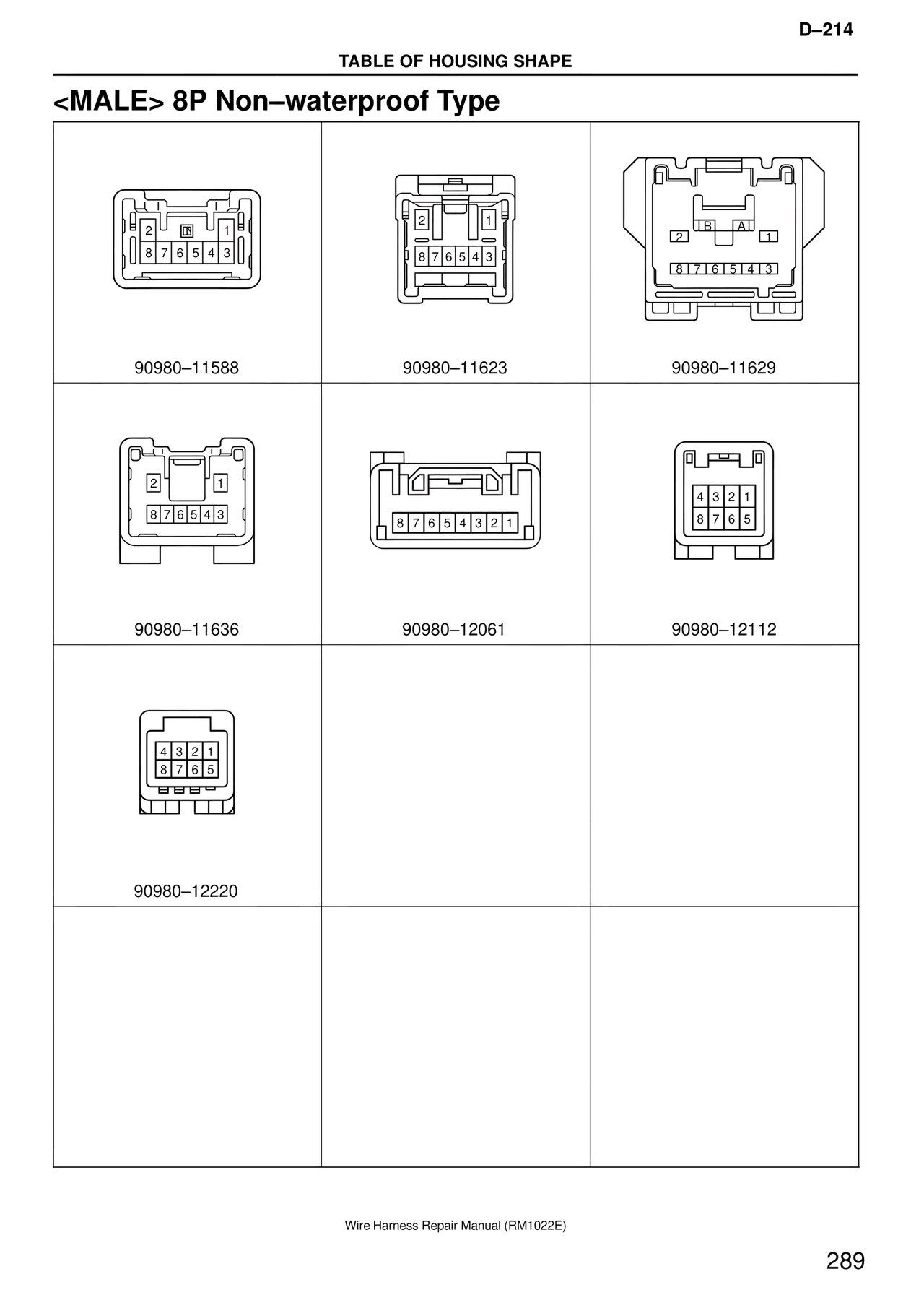

TABLE OF HOUSING SHAPE

<MALE> 8P Non–waterproof Type

2  [N]  1
8 7 6 5 4 3

90980–11588

2       1
8 7 6 5 4 3

90980–11623

2  B  A  1
8 7 6 5 4 3

90980–11629

2       1
8 7 6 5 4 3

90980–11636

8 7 6 5 4 3 2 1

90980–12061

4 3 2 1
8 7 6 5

90980–12112

4 3 2 1
8 7 6 5

90980–12220

Wire Harness Repair Manual (RM1022E)
