D–215

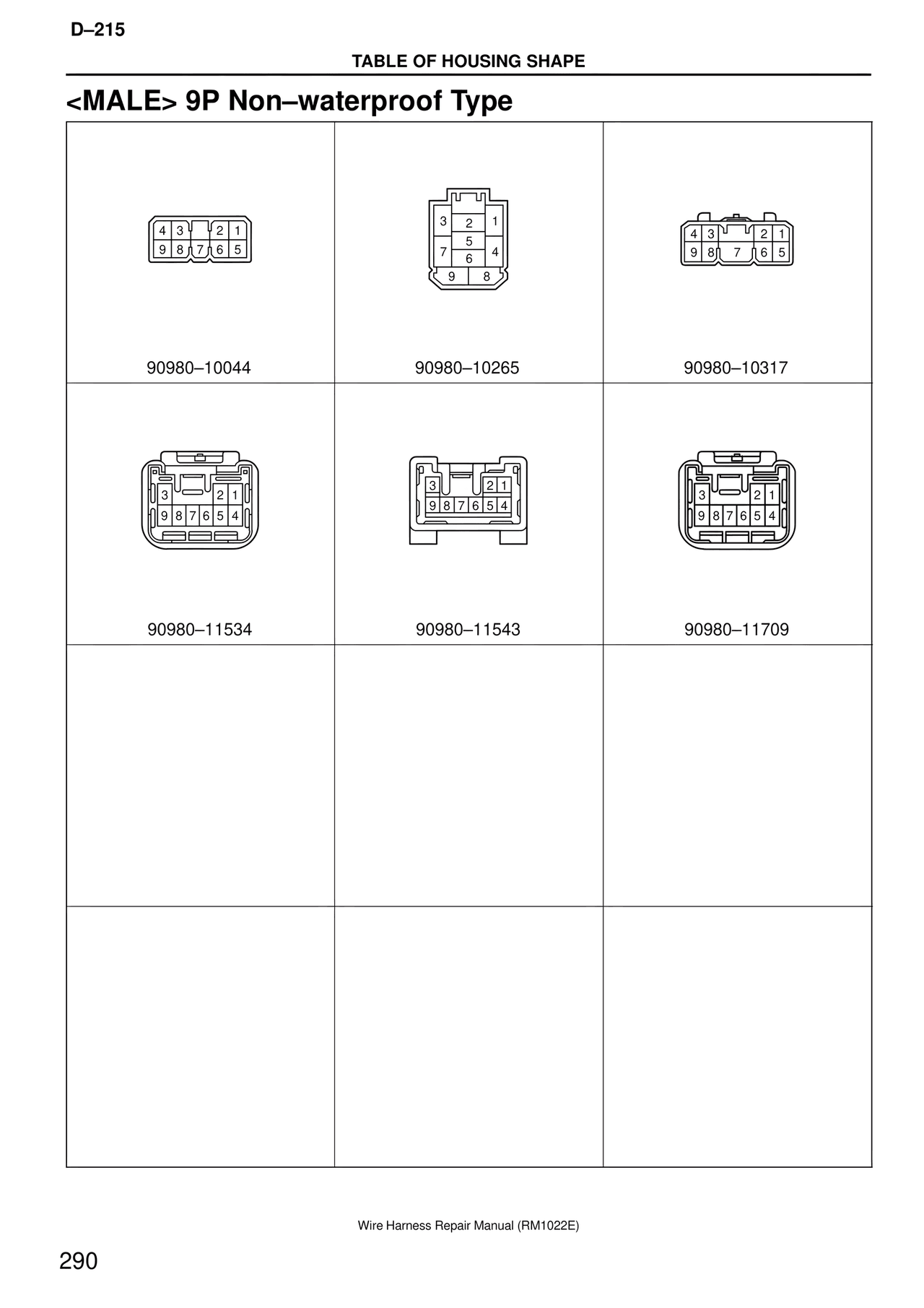

TABLE OF HOUSING SHAPE

<MALE> 9P Non–waterproof Type

4 3  2 1
9 8 7 6 5

90980–10044

3  2  1
   5
7     4
   6
9     8

90980–10265

4 3  2 1
9 8  7  6 5

90980–10317

3    2 1
9 8 7 6 5 4

90980–11534

3    2 1
9 8 7 6 5 4

90980–11543

3    2 1
9 8 7 6 5 4

90980–11709

Wire Harness Repair Manual (RM1022E)

290
