TSRM/MK4 Supra/Repair Manual
Repair ManualWiring Diagrams
p.290
WH/Wire Harness291 / 414
p.292
<MALE> 10P Non–waterproof Type — MK4 Supra Wire Harness, page 291
100%

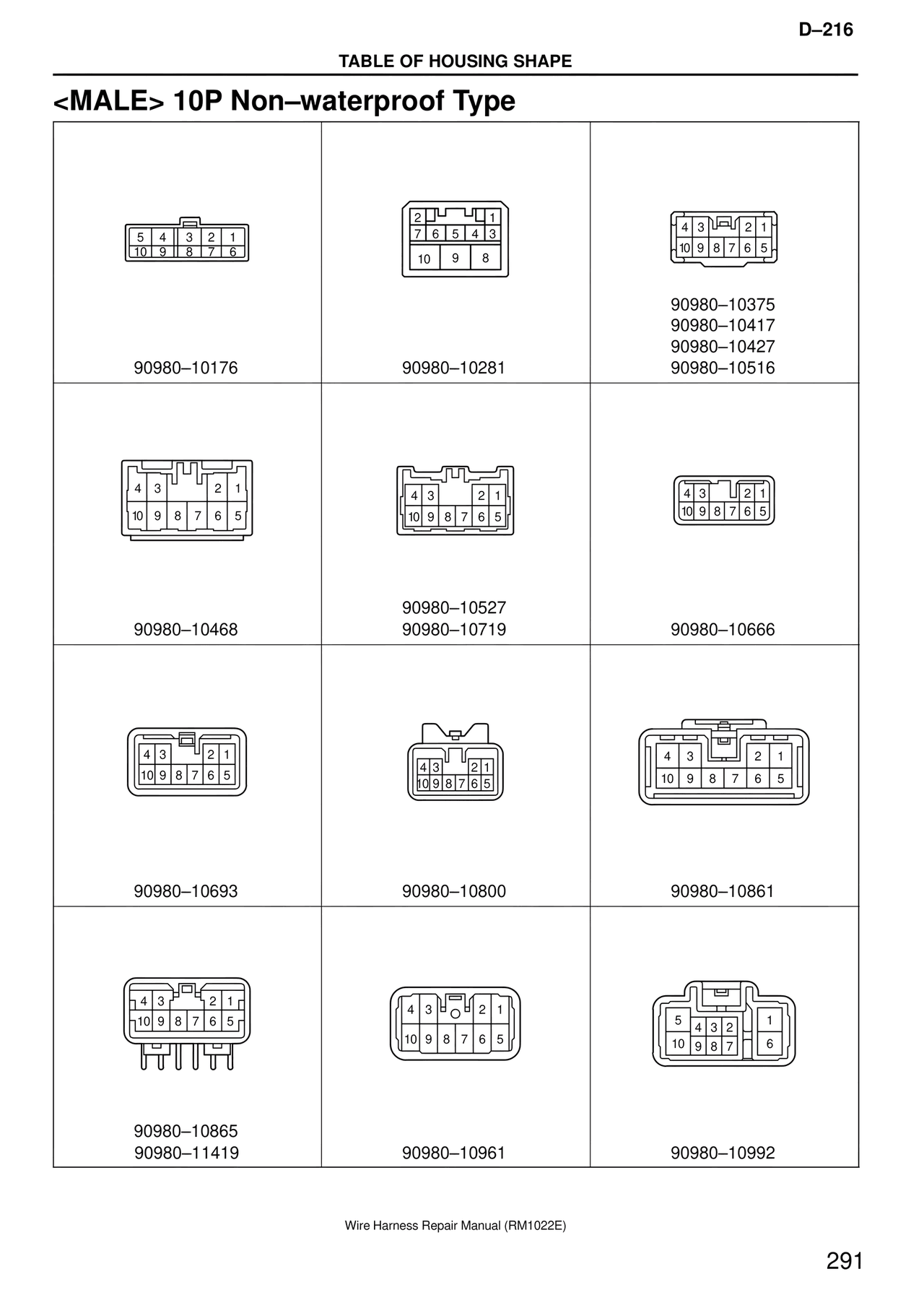

D–216 TABLE OF HOUSING SHAPE <MALE> 10P Non–waterproof Type 5 4 3 2 1 10 9 8 7 6 90980–10176 2 1 7 6 5 4 3 10 9 8 90980–10281 4 3 2 1 10 9 8 7 6 5 90980–10375 90980–10417 90980–10427 90980–10516 4 3 2 1 10 9 8 7 6 5 90980–10468 4 3 2 1 10 9 8 7 6 5 90980–10527 90980–10719 4 3 2 1 10 9 8 7 6 5 90980–10666 4 3 2 1 10 9 8 7 6 5 90980–10693 4 3 2 1 10 9 8 7 6 5 90980–10800 4 3 2 1 10 9 8 7 6 5 90980–10861 4 3 2 1 10 9 8 7 6 5 90980–10865 90980–11419 4 3 2 1 10 9 8 7 6 5 90980–10961 5 4 3 2 1 10 9 8 7 6 90980–10992 Wire Harness Repair Manual (RM1022E) 291
