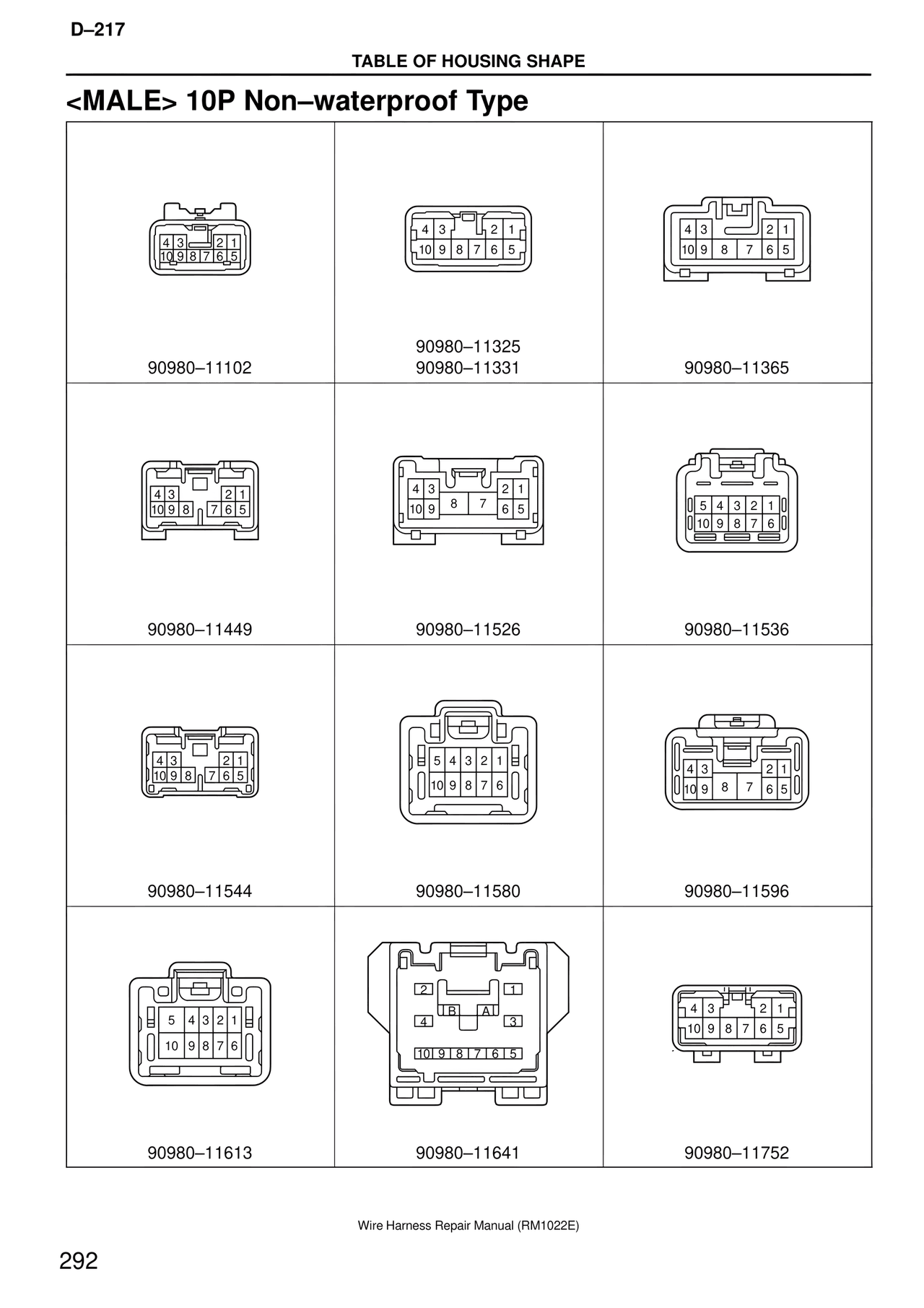

WH/Wire Harness — <male> 10P Non-waterproof Type, page 292

D–217

TABLE OF HOUSING SHAPE

<MALE> 10P Non–waterproof Type

4 3    2 1
10 9 8 7 6 5

90980–11102

4 3    2 1
10 9 8 7 6 5

90980–11325
90980–11331

4 3    2 1
10 9 8 7 6 5

90980–11365

4 3    2 1
10 9 8    7 6 5

90980–11449

4 3    8    7 2 1
10 9              6 5

90980–11526

5 4 3 2 1
10 9 8 7 6

90980–11536

4 3    2 1
10 9 8    7 6 5

90980–11544

5 4 3 2 1
10 9 8 7 6

90980–11580

4 3    2 1
10 9    8    7 6 5

90980–11596

5 4 3 2 1
10 9 8 7 6

90980–11613

2      1
4  B  A  3
10 9 8 7 6 5

90980–11641

4 3    2 1
10 9 8 7 6 5

90980–11752
