D–218

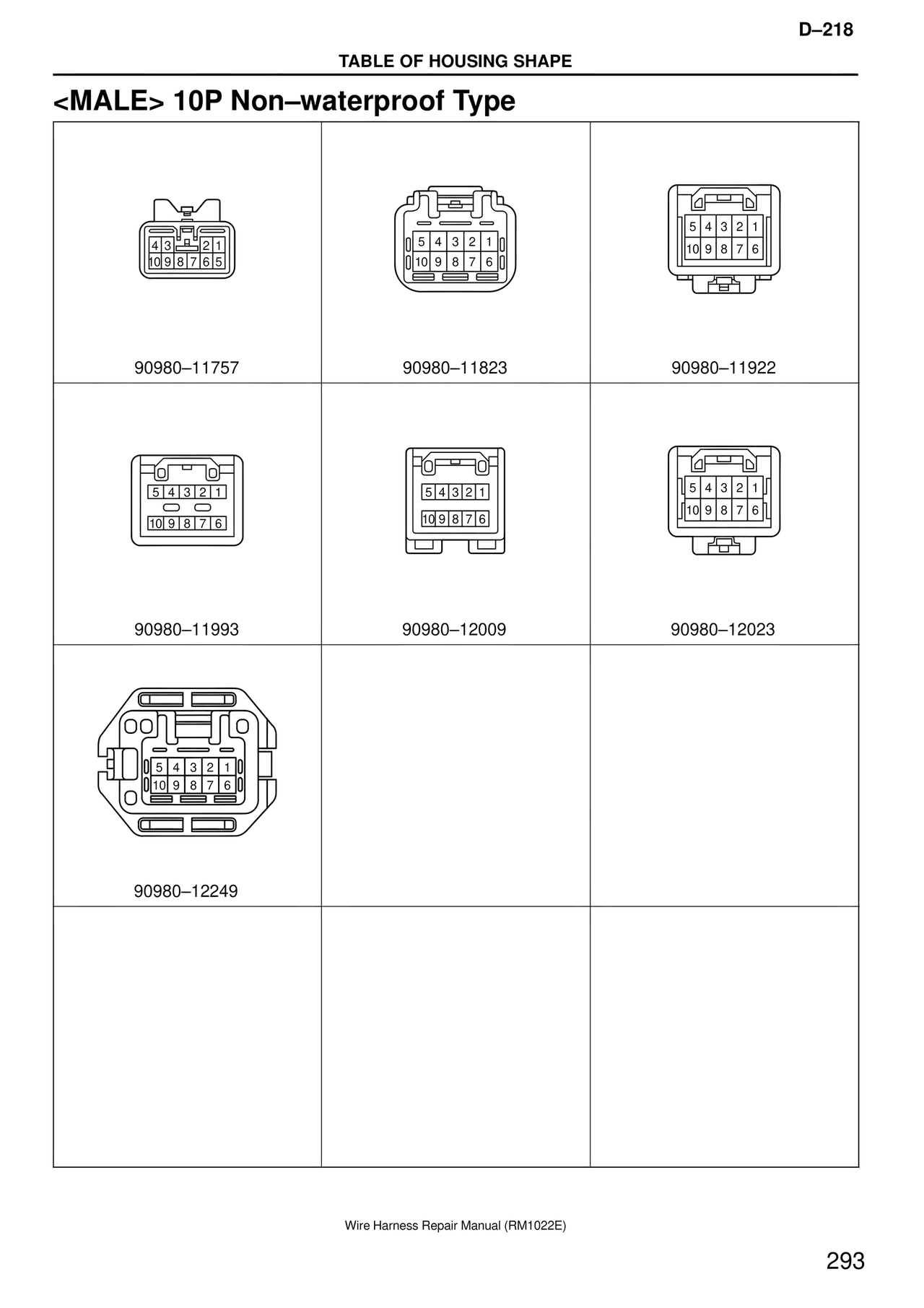

TABLE OF HOUSING SHAPE

<MALE> 10P Non–waterproof Type

4 3  2 1
10 9 8 7 6 5

90980–11757

5 4 3 2 1
10 9 8 7 6

90980–11823

5 4 3 2 1
10 9 8 7 6

90980–11922

5 4 3 2 1
10 9 8 7 6

90980–11993

5 4 3 2 1
10 9 8 7 6

90980–12009

5 4 3 2 1
10 9 8 7 6

90980–12023

5 4 3 2 1
10 9 8 7 6

90980–12249

Wire Harness Repair Manual (RM1022E)

293
