D–224

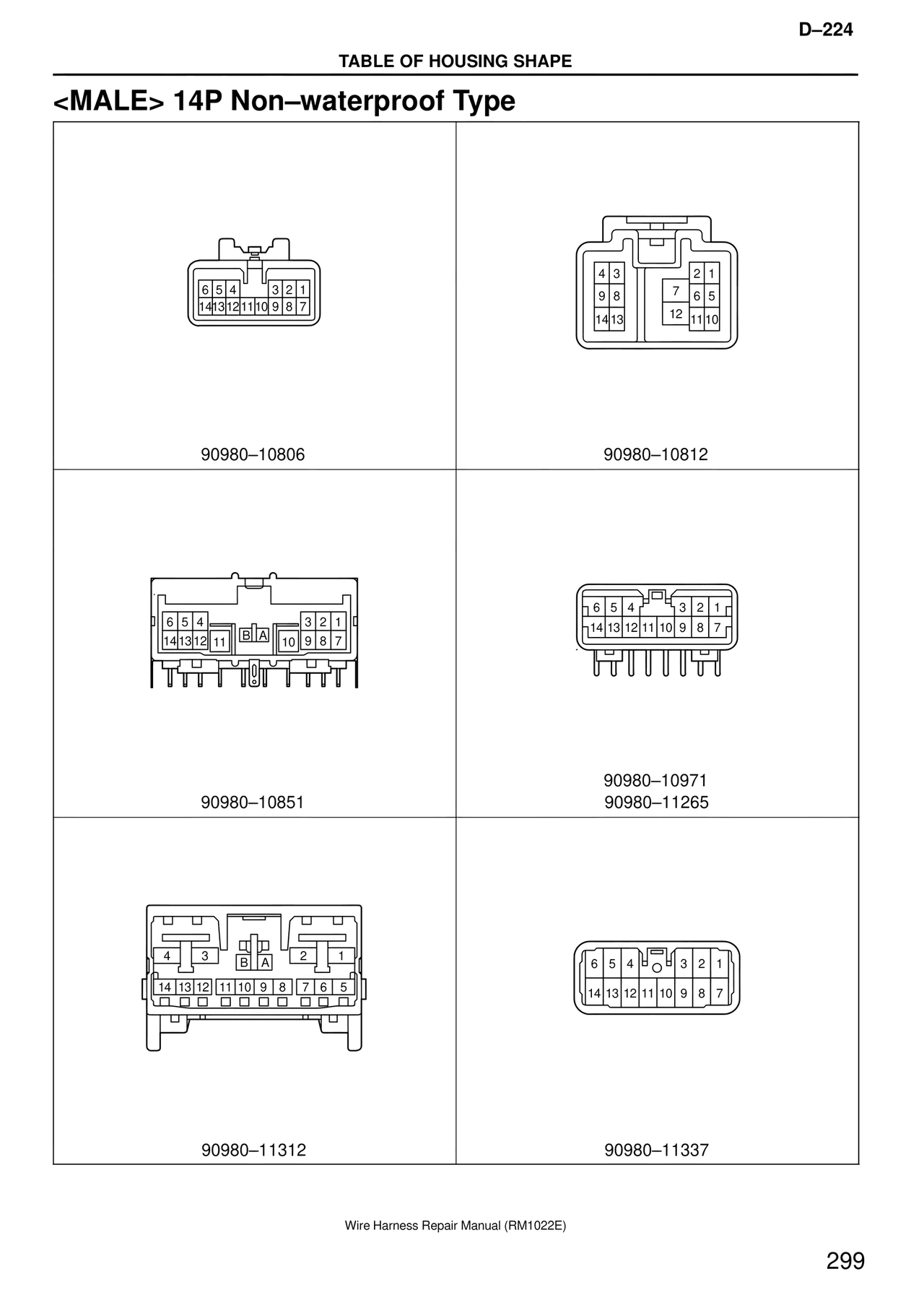

TABLE OF HOUSING SHAPE

<MALE> 14P Non–waterproof Type

6 5 4    3 2 1
14 13 12 11 10 9 8 7

90980–10806

4 3    2 1
9 8    7
      6 5
14 13   12
        11 10

90980–10812

6 5 4    3 2 1
14 13 12 11  B A  10 9 8 7

90980–10851

6 5 4    3 2 1
14 13 12 11 10 9 8 7

90980–10971
90980–11265

4  3   B A   2   1
14 13 12 11 10 9 8 7 6 5

90980–11312

6 5 4  O  3 2 1
14 13 12 11 10 9 8 7

90980–11337

Wire Harness Repair Manual (RM1022E)

299
