B–21

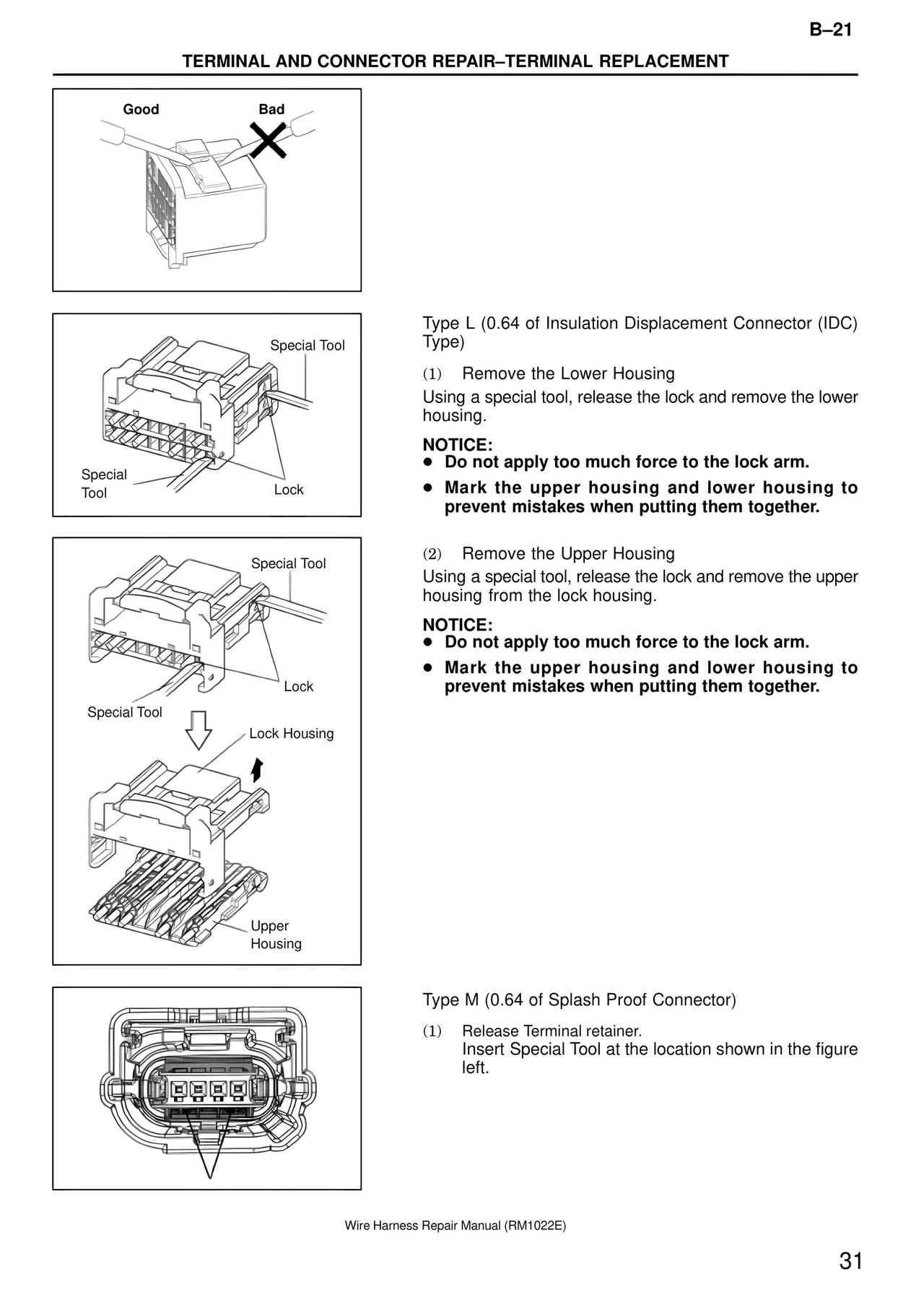

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT

Good        Bad

Special Tool

Special
Tool                    Lock

Special Tool

Lock

Special Tool

Lock Housing

Upper
Housing

Type L (0.64 of Insulation Displacement Connector (IDC)
Type)

(1)    Remove the Lower Housing
Using a special tool, release the lock and remove the lower
housing.
NOTICE:
● Do not apply too much force to the lock arm.
● Mark the upper housing and lower housing to
   prevent mistakes when putting them together.

(2)    Remove the Upper Housing
Using a special tool, release the lock and remove the upper
housing from the lock housing.
NOTICE:
● Do not apply too much force to the lock arm.
● Mark the upper housing and lower housing to
   prevent mistakes when putting them together.

Type M (0.64 of Splash Proof Connector)

(1)    Release Terminal retainer.
        Insert Special Tool at the location shown in the figure
        left.

Wire Harness Repair Manual (RM1022E)

31
