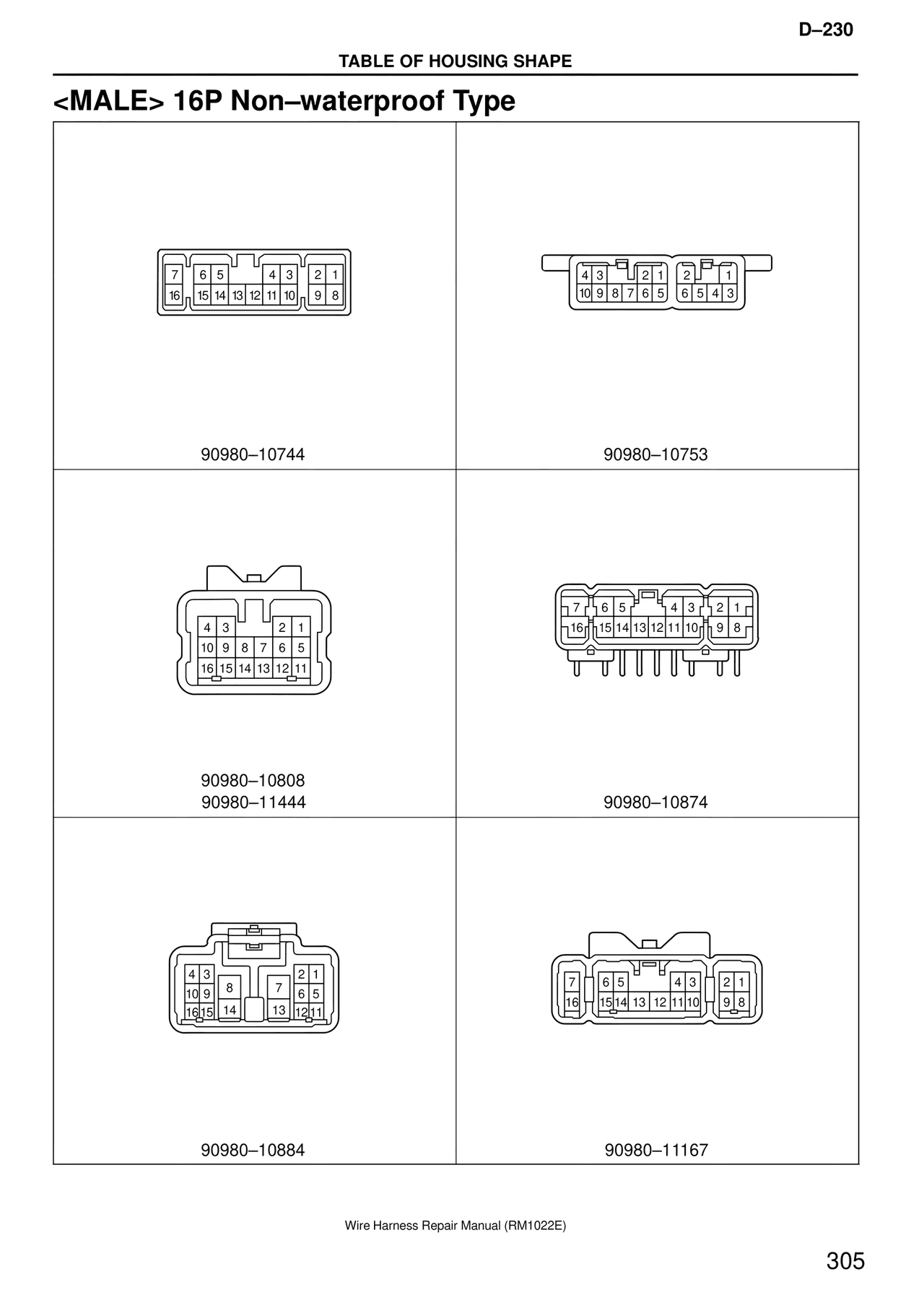

TABLE OF HOUSING SHAPE

<MALE> 16P Non–waterproof Type

7  6 5    4 3   2 1
16  15 14 13 12 11 10   9 8

90980–10744

4 3   2 1   2   1
10 9 8 7 6 5   6 5 4 3

90980–10753

4 3    2 1
10 9 8 7 6 5
16 15 14 13 12 11

90980–10808
90980–11444

7   6 5    4 3   2 1
16  15 14 13 12 11 10   9 8

90980–10874

4 3    2 1
10 9   8   7   6 5
16 15   14    13  12 11

90980–10884

7   6 5    4 3   2 1
16  15 14 13 12 11 10   9 8

90980–11167
