WH/Wire Harness — <male> 16P Non–waterproof Type, page 306

D–231

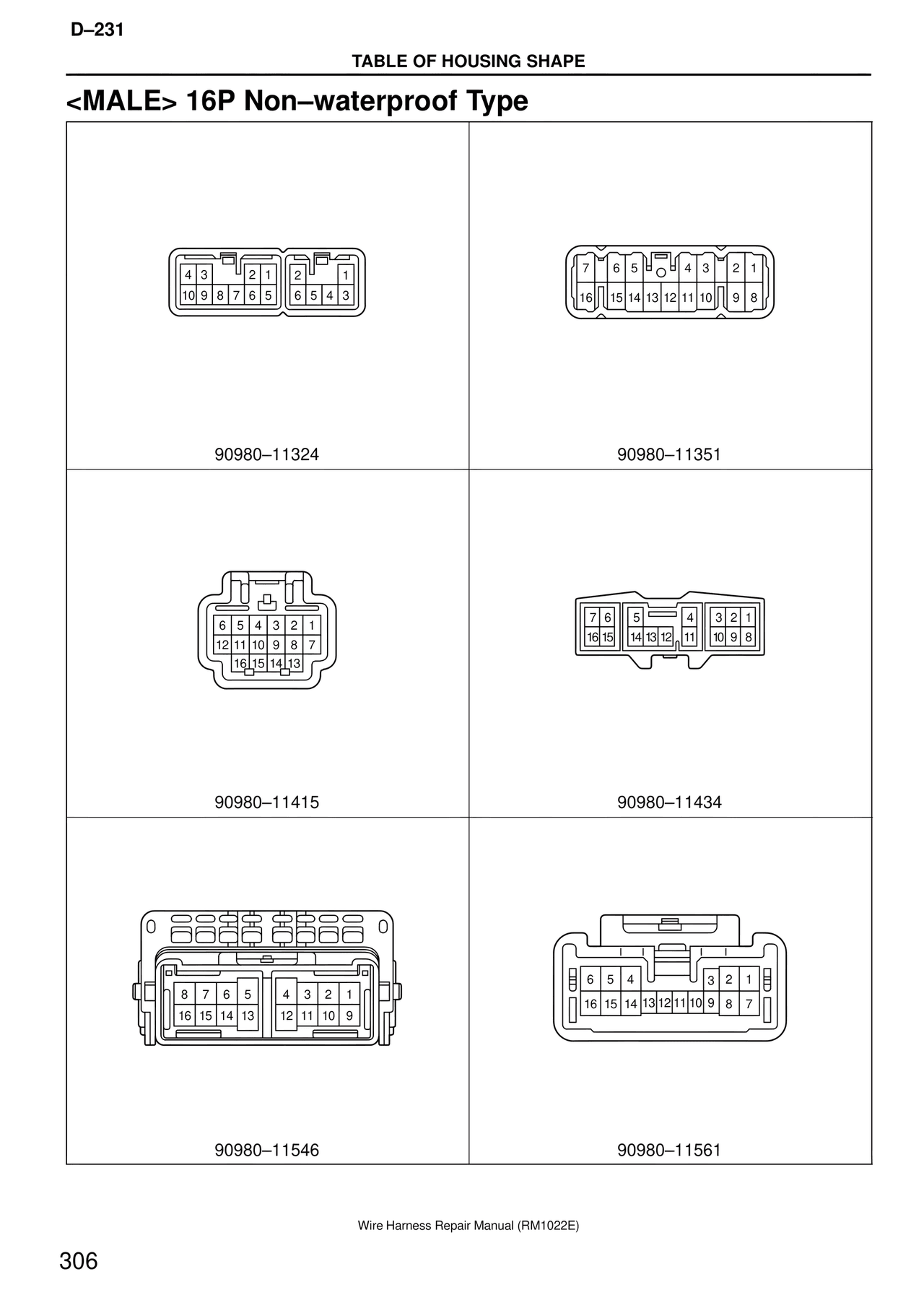

TABLE OF HOUSING SHAPE

<MALE> 16P Non–waterproof Type

4 3  2 1  2  1
10 9 8 7 6 5  6 5 4 3

90980–11324

7  6 5  4 3  2 1
16  15 14 13 12 11 10  9 8

90980–11351

6 5 4 3 2 1
12 11 10 9 8 7
16 15 14 13

90980–11415

7 6  5  4  3 2 1
16 15  14 13 12  11  10 9 8

90980–11434

8 7 6 5  4 3 2 1
16 15 14 13  12 11 10 9

90980–11546

6 5 4  3 2 1
16 15 14 13 12 11 10 9 8 7

90980–11561

Wire Harness Repair Manual (RM1022E)
