D–232

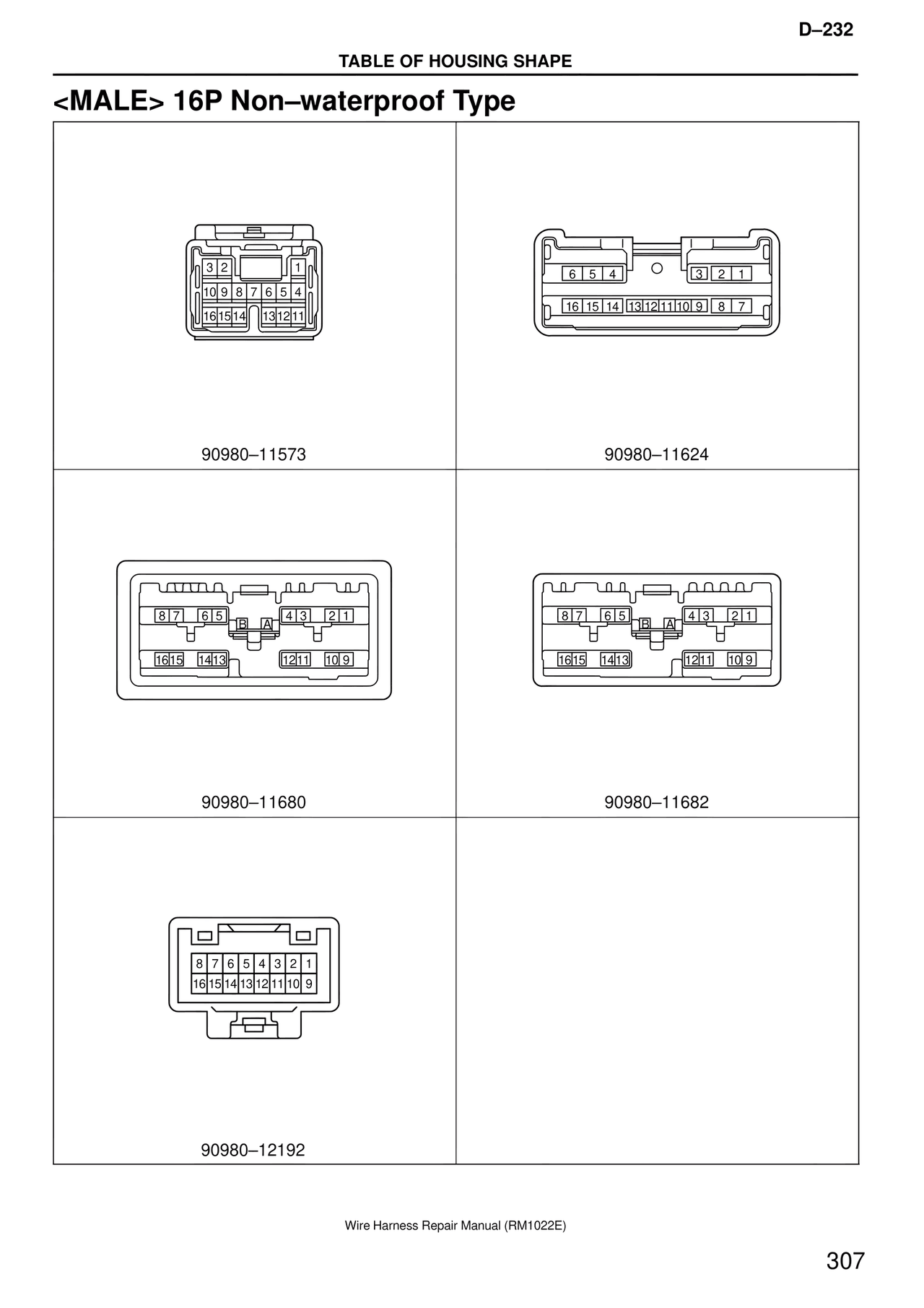

TABLE OF HOUSING SHAPE

<MALE> 16P Non–waterproof Type

3 2    1
10 9 8 7 6 5 4
16 15 14   13 12 11

90980–11573

6 5 4    ○    3 2 1
16 15 14  13 12 11 10 9   8 7

90980–11624

8 7  6 5  B A  4 3  2 1
16 15  14 13     12 11  10 9

90980–11680

8 7  6 5  B A  4 3  2 1
16 15  14 13     12 11  10 9

90980–11682

8 7 6 5 4 3 2 1
16 15 14 13 12 11 10 9

90980–12192

Wire Harness Repair Manual (RM1022E)

307
