WH/Wire Harness — <male> 17P Non–waterproof Type, page 308

D–233

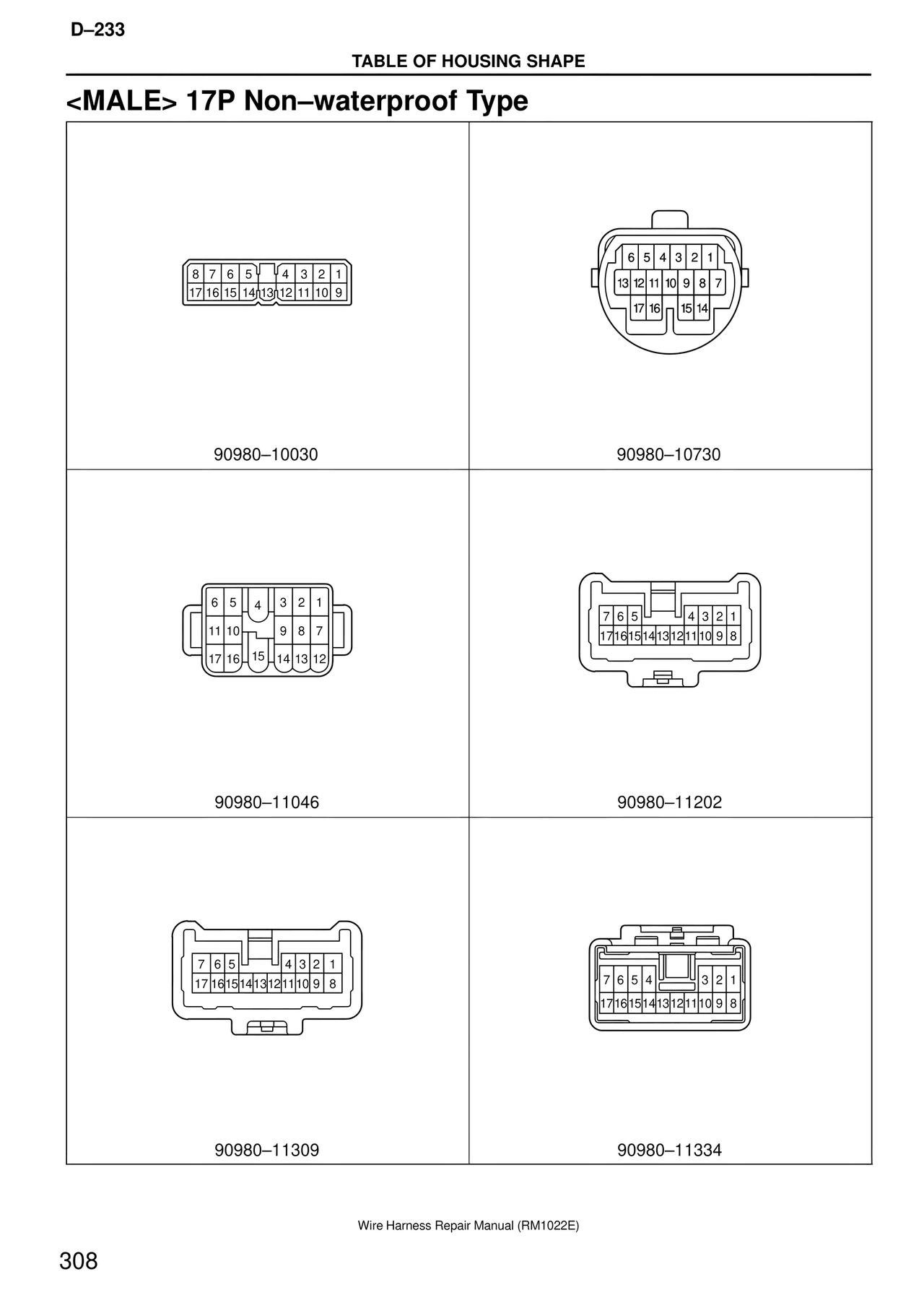

TABLE OF HOUSING SHAPE

<MALE> 17P Non–waterproof Type

8 7 6 5  4 3 2 1
17 16 15 14 13 12 11 10 9

90980–10030

6 5 4 3 2 1
13 12 11 10 9 8 7
17 16  15 14

90980–10730

6 5 4  3 2 1
11 10  9 8 7
17 16 15 14 13 12

90980–11046

7 6 5  4 3 2 1
17 16 15 14 13 12 11 10 9 8

90980–11202

7 6 5  4 3 2 1
17 16 15 14 13 12 11 10 9 8

90980–11309

7 6 5 4  3 2 1
17 16 15 14 13 12 11 10 9 8

90980–11334

Wire Harness Repair Manual (RM1022E)

308
