WH/Wire Harness — <male> 17P Non–waterproof Type, page 309

D–234

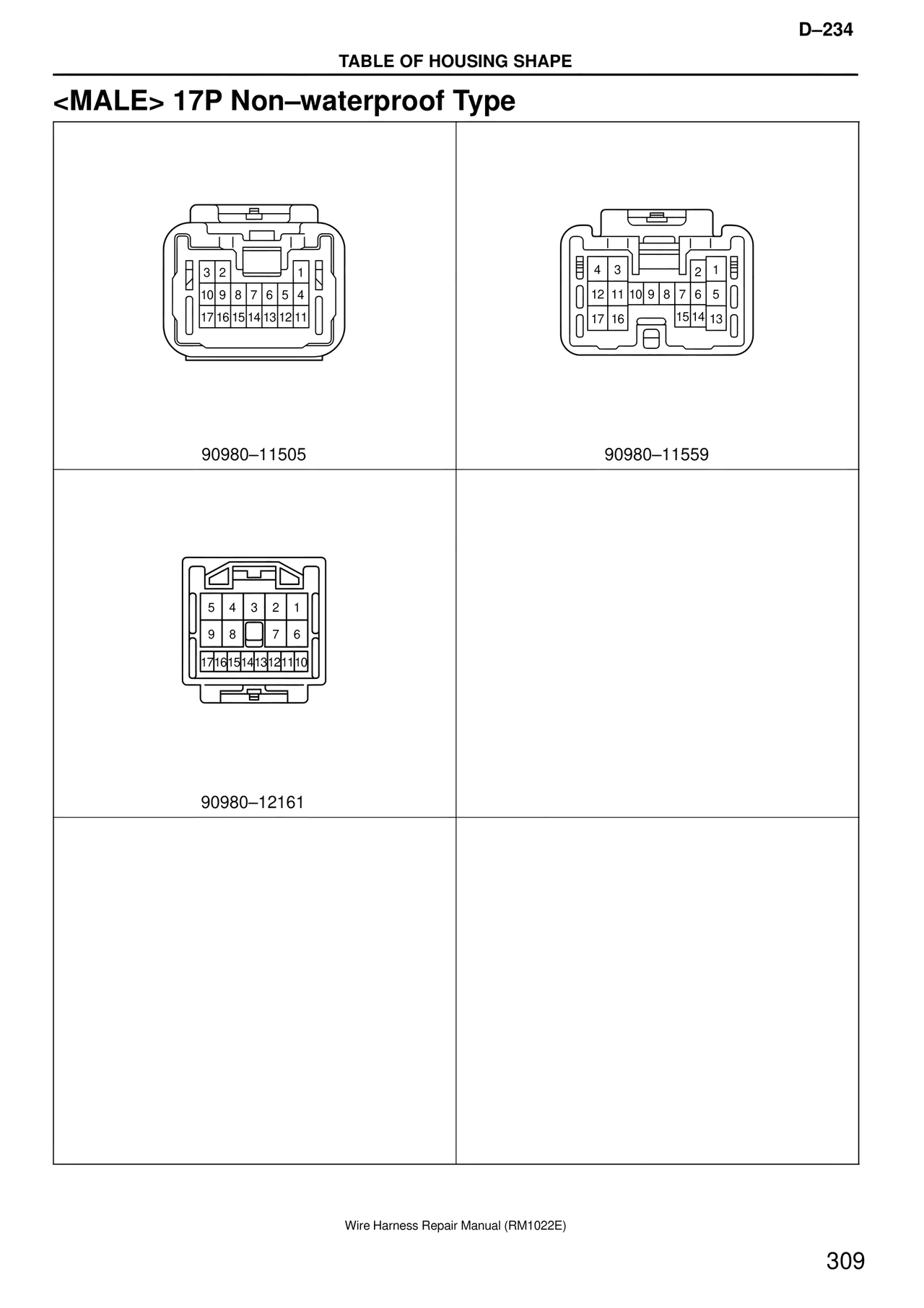

TABLE OF HOUSING SHAPE

<MALE> 17P Non–waterproof Type

3  2        1
10 9  8  7  6  5  4
17 16 15 14 13 12 11

90980–11505

4  3        2  1
12 11 10  9  8  7  6  5
17  16        15 14  13

90980–11559

5  4  3  2  1
9  8     7  6
17 16 15 14 13 12 11 10

90980–12161

Wire Harness Repair Manual (RM1022E)
