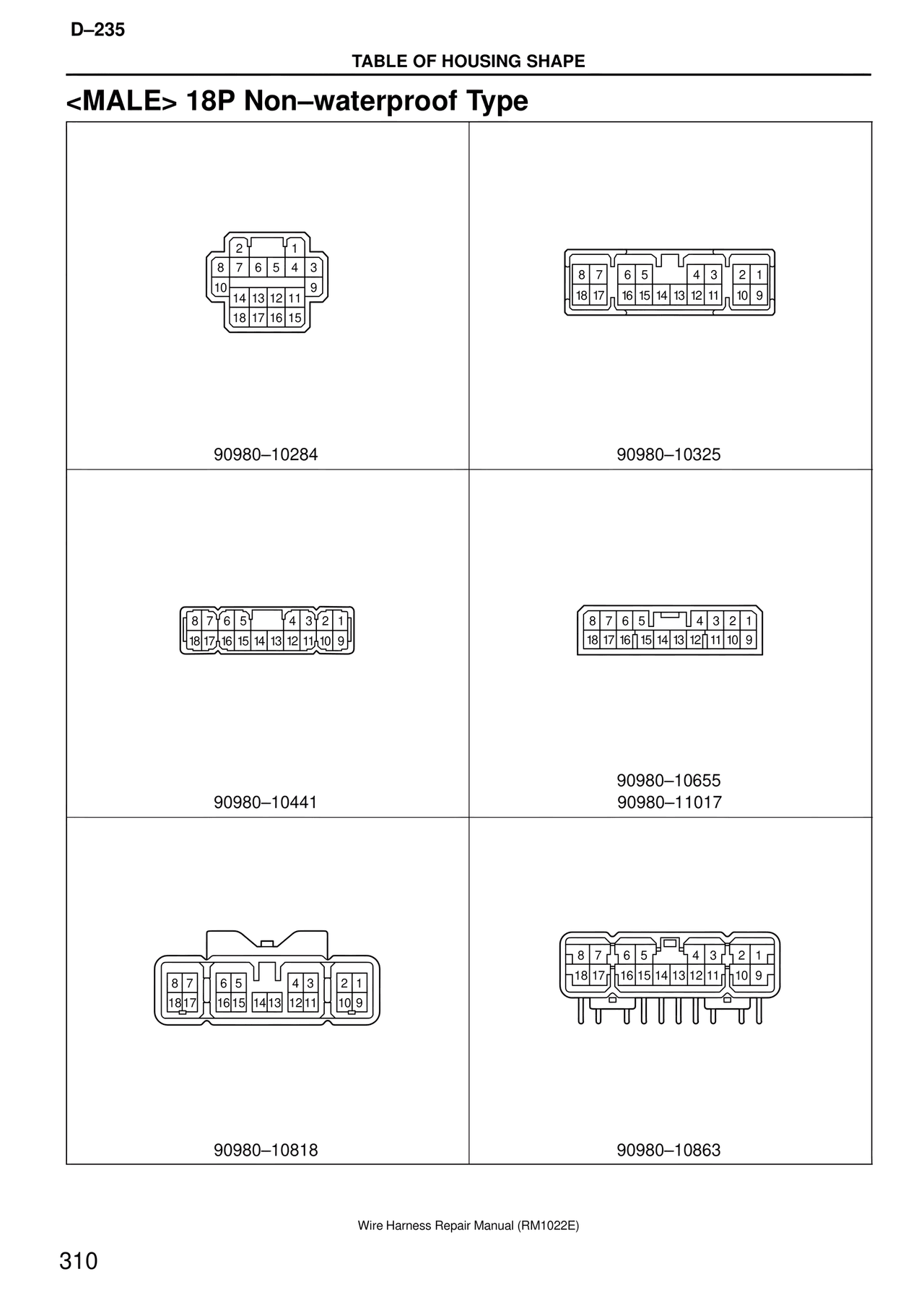

<MALE> 18P Non–waterproof Type — MK4 Supra Wire Harness, page 310
100%
D–235 TABLE OF HOUSING SHAPE <MALE> 18P Non–waterproof Type 2 1 8 7 6 5 4 3 10 9 14 13 12 11 18 17 16 15 90980–10284 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 9 90980–10325 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 9 90980–10441 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 9 90980–10655 90980–11017 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 9 90980–10818 8 7 6 5 4 3 2 1 18 17 16 15 14 13 12 11 10 9 90980–10863 Wire Harness Repair Manual (RM1022E) 310
