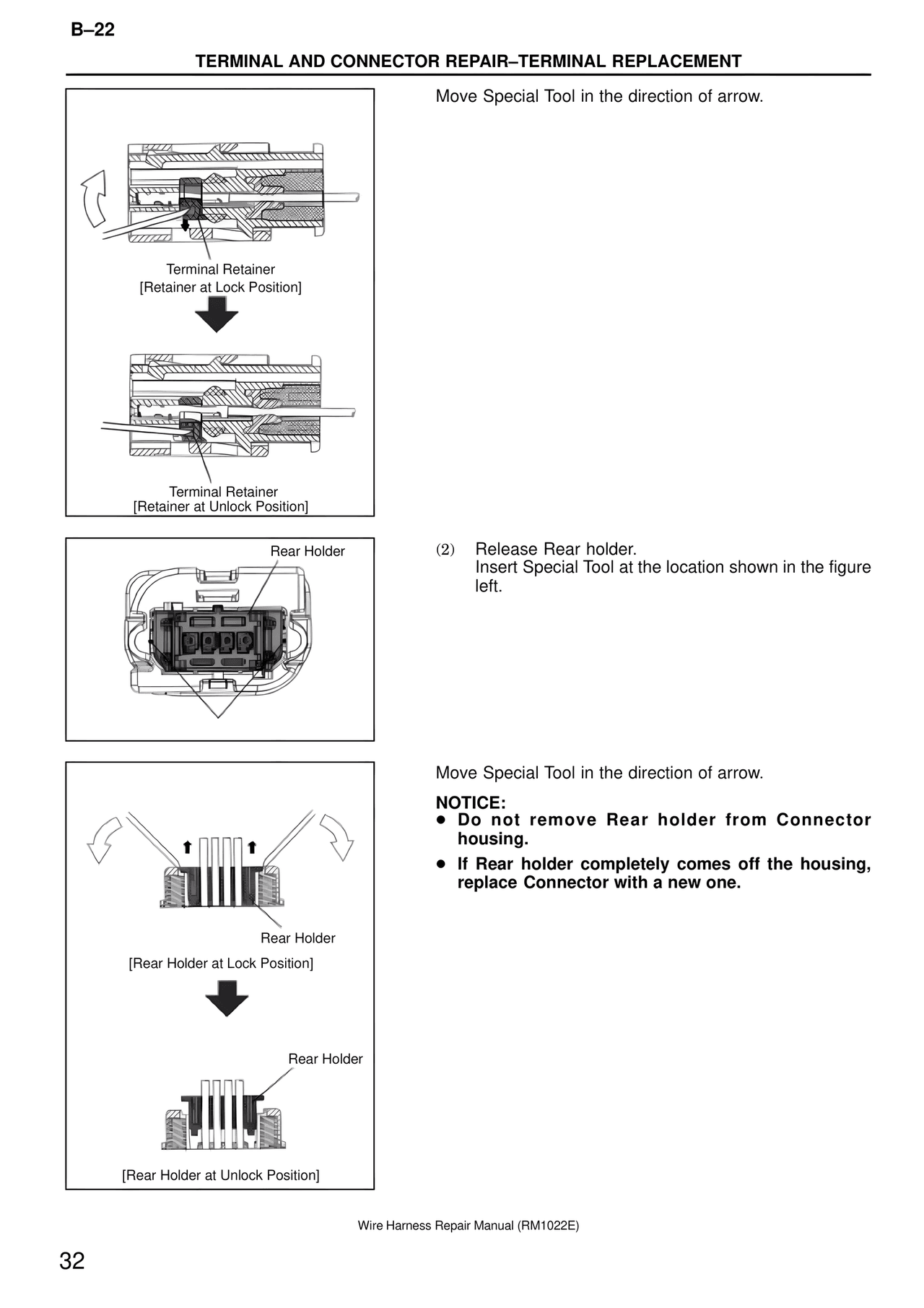

B–22
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Move Special Tool in the direction of arrow.
Terminal Retainer
[Retainer at Lock Position]
Terminal Retainer
[Retainer at Unlock Position]
Rear Holder
(2) Release Rear holder.
Insert Special Tool at the location shown in the figure
left.
Move Special Tool in the direction of arrow.
NOTICE:
● Do not remove Rear holder from Connector
housing.
● If Rear holder completely comes off the housing,
replace Connector with a new one.
Rear Holder
[Rear Holder at Lock Position]
Rear Holder
[Rear Holder at Unlock Position]
Wire Harness Repair Manual (RM1022E)
32
