D–236

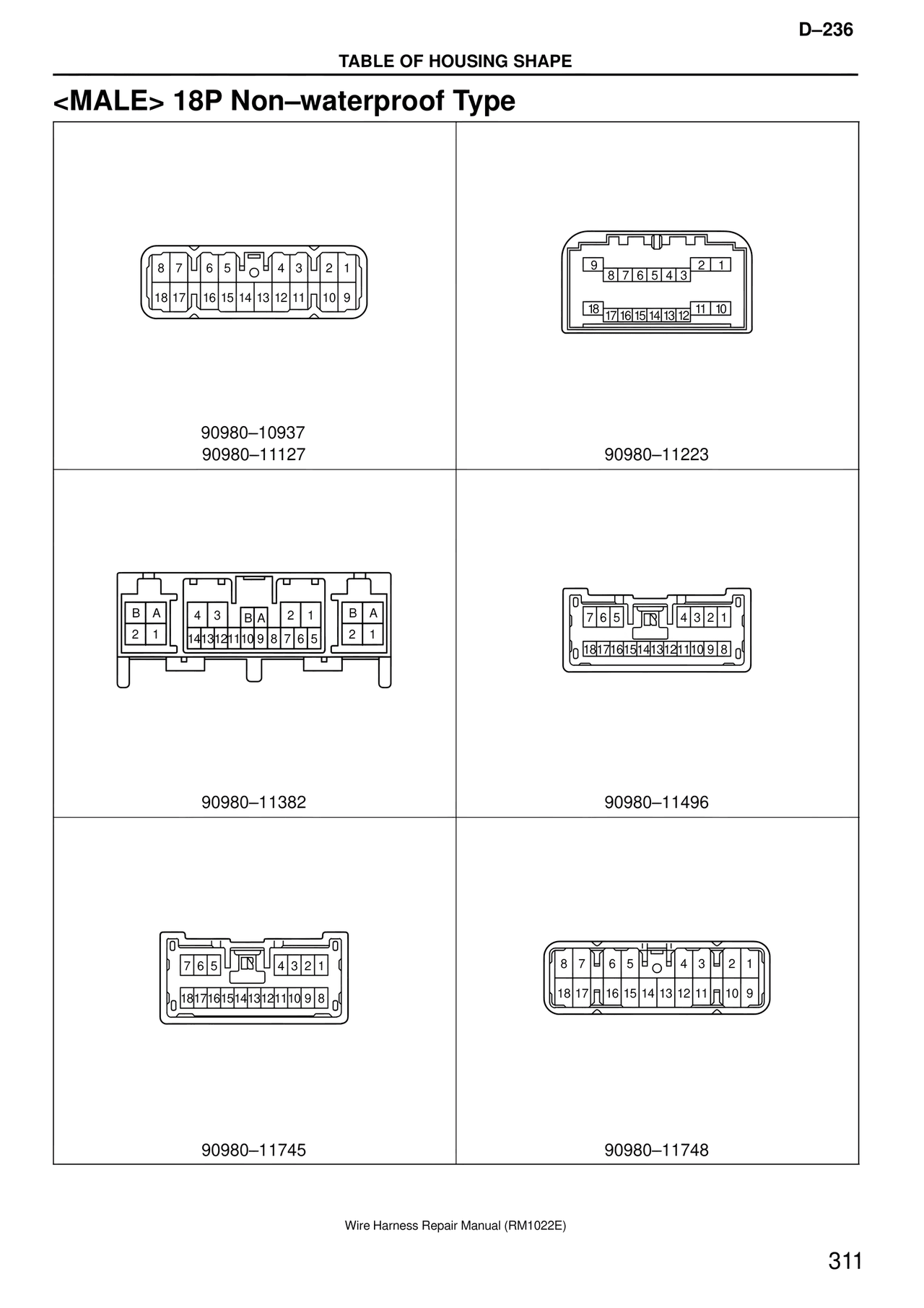

TABLE OF HOUSING SHAPE

<MALE> 18P Non–waterproof Type

8 7 U 6 5 O 4 3 U 2 1
18 17 N 16 15 14 13 12 11 N 10 9

90980–10937
90980–11127

9        2 1
8 7 6 5 4 3
18 17 16 15 14 13 12  11 10

90980–11223

B A   4 3  B A   2 1   B A
2 1  14 13 12 11 10 9 8 7 6 5  2 1

90980–11382

0          0
7 6 5  N  4 3 2 1
0 18 17 16 15 14 13 12 11 10 9 8 0

90980–11496

0        0
7 6 5  N  4 3 2 1
0 18 17 16 15 14 13 12 11 10 9 8 0

90980–11745

8 7 U 6 5 O 4 3 U 2 1
18 17 N 16 15 14 13 12 11 N 10 9

90980–11748

Wire Harness Repair Manual (RM1022E)

311
