E–49

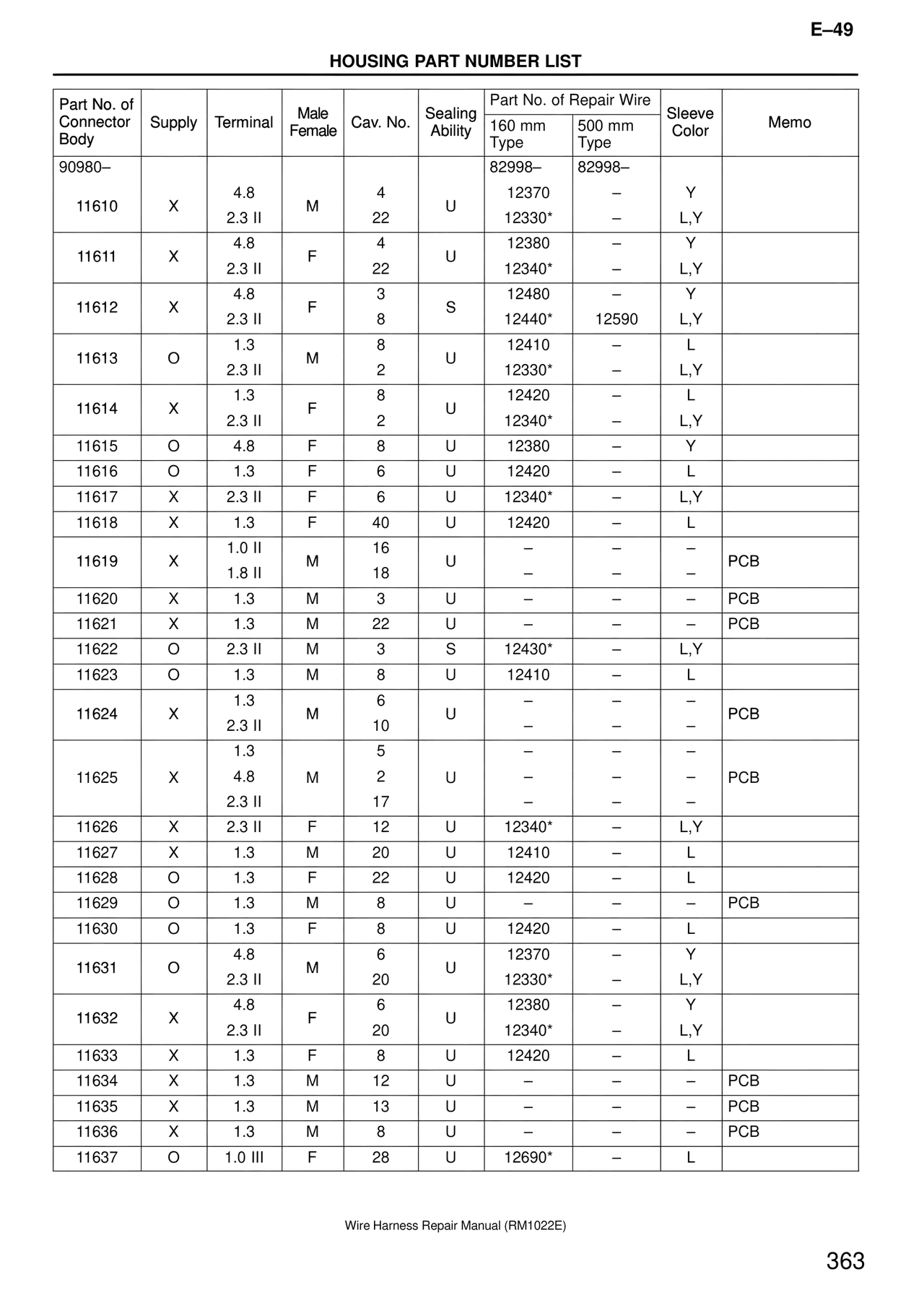

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
11610 | X | 4.8 | M | 4 | U | 82998–12370 | 82998– – | Y
| | 2.3 II | | 22 | | 12330* | – | L,Y
11611 | X | 4.8 | F | 4 | U | 12380 | – | Y
| | 2.3 II | | 22 | | 12340* | – | L,Y
11612 | X | 4.8 | F | 3 | S | 12480 | – | Y
| | 2.3 II | | 8 | | 12440* | 12590 | L,Y
11613 | O | 1.3 | M | 8 | U | 12410 | – | L
| | 2.3 II | | 2 | | 12330* | – | L,Y
11614 | X | 1.3 | F | 8 | U | 12420 | – | L
| | 2.3 II | | 2 | | 12340* | – | L,Y
11615 | O | 4.8 | F | 8 | U | 12380 | – | Y
11616 | O | 1.3 | F | 6 | U | 12420 | – | L
11617 | X | 2.3 II | F | 6 | U | 12340* | – | L,Y
11618 | X | 1.3 | F | 40 | U | 12420 | – | L
11619 | X | 1.0 II | M | 16 | U | – | – | – | PCB
| | 1.8 II | | 18 | | – | – | –
11620 | X | 1.3 | M | 3 | U | – | – | – | PCB
11621 | X | 1.3 | M | 22 | U | – | – | – | PCB
11622 | O | 2.3 II | M | 3 | S | 12430* | – | L,Y
11623 | O | 1.3 | M | 8 | U | 12410 | – | L
11624 | X | 1.3 | M | 6 | U | – | – | – | PCB
| | 2.3 II | | 10 | | – | – | –
11625 | X | 1.3 | M | 5 | U | – | – | – | PCB
| | 4.8 | | 2 | | – | – | –
| | 2.3 II | | 17 | | – | – | –
11626 | X | 2.3 II | F | 12 | U | 12340* | – | L,Y
11627 | X | 1.3 | M | 20 | U | 12410 | – | L
11628 | O | 1.3 | F | 22 | U | 12420 | – | L
11629 | O | 1.3 | M | 8 | U | – | – | – | PCB
11630 | O | 1.3 | F | 8 | U | 12420 | – | L
11631 | O | 4.8 | M | 6 | U | 12370 | – | Y
| | 2.3 II | | 20 | | 12330* | – | L,Y
11632 | X | 4.8 | F | 6 | U | 12380 | – | Y
| | 2.3 II | | 20 | | 12340* | – | L,Y
11633 | X | 1.3 | F | 8 | U | 12420 | – | L
11634 | X | 1.3 | M | 12 | U | – | – | – | PCB
11635 | X | 1.3 | M | 13 | U | – | – | – | PCB
11636 | X | 1.3 | M | 8 | U | – | – | – | PCB
11637 | O | 1.0 III | F | 28 | U | 12690* | – | L
Wire Harness Repair Manual (RM1022E)
363
