E–58

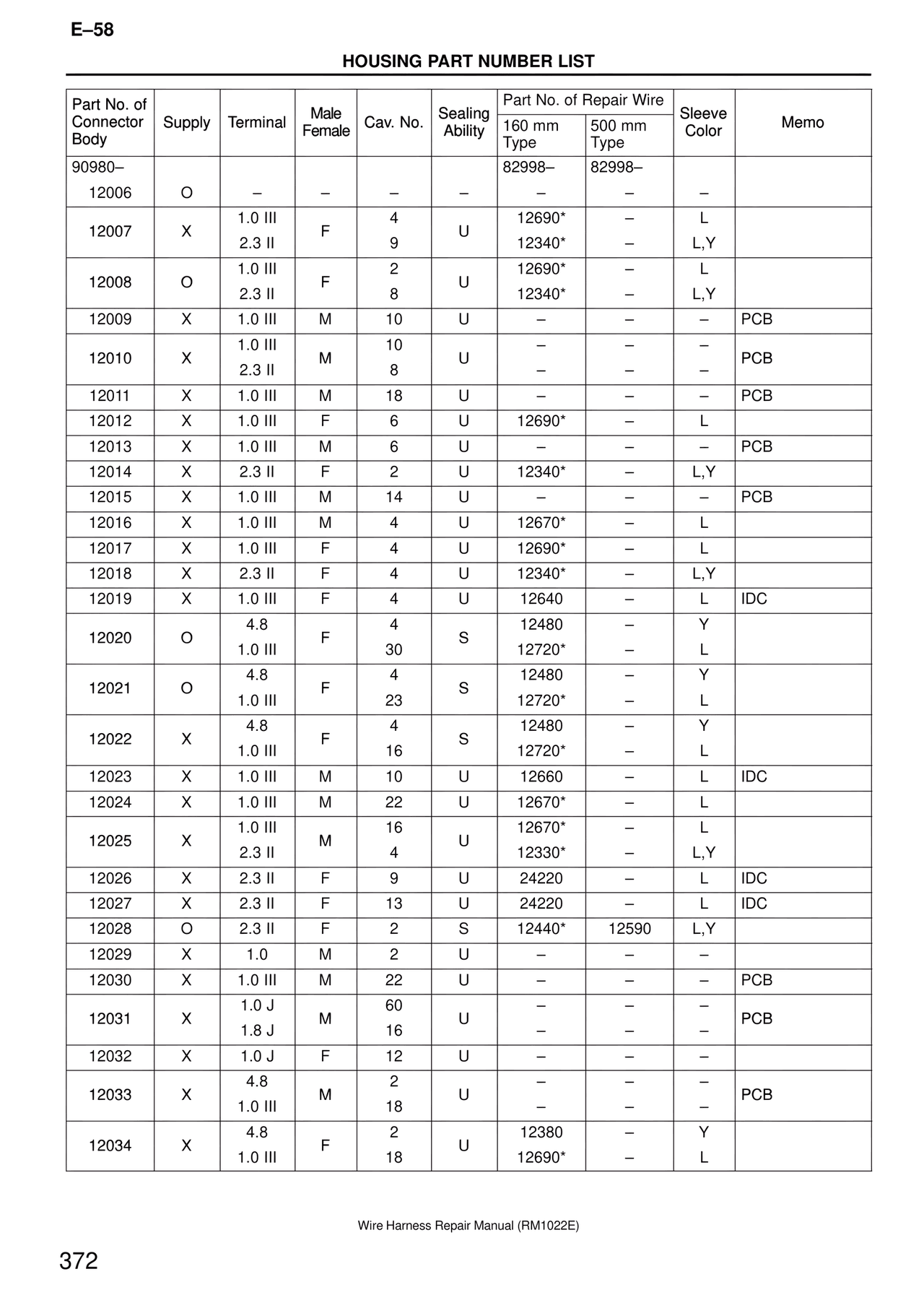

HOUSING PART NUMBER LIST

Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo

90980–
12006 | O | – | – | – | – | 82998– | 82998– | –

12007 | X | 1.0 III | F | 4 | U | 12690* | – | L
        |   | 2.3 II  |   | 9 |   | 12340* | – | L,Y

12008 | O | 1.0 III | F | 2 | U | 12690* | – | L
        |   | 2.3 II  |   | 8 |   | 12340* | – | L,Y

12009 | X | 1.0 III | M | 10 | U | – | – | – | PCB

12010 | X | 1.0 III | M | 10 | U | – | – | – | PCB
        |   | 2.3 II  |   | 8  |   | – | – | –

12011 | X | 1.0 III | M | 18 | U | – | – | – | PCB

12012 | X | 1.0 III | F | 6 | U | 12690* | – | L

12013 | X | 1.0 III | M | 6 | U | – | – | – | PCB

12014 | X | 2.3 II | F | 2 | U | 12340* | – | L,Y

12015 | X | 1.0 III | M | 14 | U | – | – | – | PCB

12016 | X | 1.0 III | M | 4 | U | 12670* | – | L

12017 | X | 1.0 III | F | 4 | U | 12690* | – | L

12018 | X | 2.3 II | F | 4 | U | 12340* | – | L,Y

12019 | X | 1.0 III | F | 4 | U | 12640 | – | L | IDC

12020 | O | 4.8     | F | 4  | S | 12480  | – | Y
        |   | 1.0 III |   | 30 |   | 12720* | – | L

12021 | O | 4.8     | F | 4  | S | 12480  | – | Y
        |   | 1.0 III |   | 23 |   | 12720* | – | L

12022 | X | 4.8     | F | 4  | S | 12480  | – | Y
        |   | 1.0 III |   | 16 |   | 12720* | – | L

12023 | X | 1.0 III | M | 10 | U | 12660 | – | L | IDC

12024 | X | 1.0 III | M | 22 | U | 12670* | – | L

12025 | X | 1.0 III | M | 16 | U | 12670* | – | L
        |   | 2.3 II  |   | 4  |   | 12330* | – | L,Y

12026 | X | 2.3 II | F | 9 | U | 24220 | – | L | IDC

12027 | X | 2.3 II | F | 13 | U | 24220 | – | L | IDC

12028 | O | 2.3 II | F | 2 | S | 12440* | 12590 | L,Y

12029 | X | 1.0 | M | 2 | U | – | – | –

12030 | X | 1.0 III | M | 22 | U | – | – | – | PCB

12031 | X | 1.0 J | M | 60 | U | – | – | – | PCB
        |   | 1.8 J |   | 16 |   | – | – | –

12032 | X | 1.0 J | F | 12 | U | – | – | –

12033 | X | 4.8     | M | 2  | U | – | – | – | PCB
        |   | 1.0 III |   | 18 |   | – | – | –

12034 | X | 4.8     | F | 2  | U | 12380  | – | Y
        |   | 1.0 III |   | 18 |   | 12690* | – | L

Wire Harness Repair Manual (RM1022E)

372
