E–59

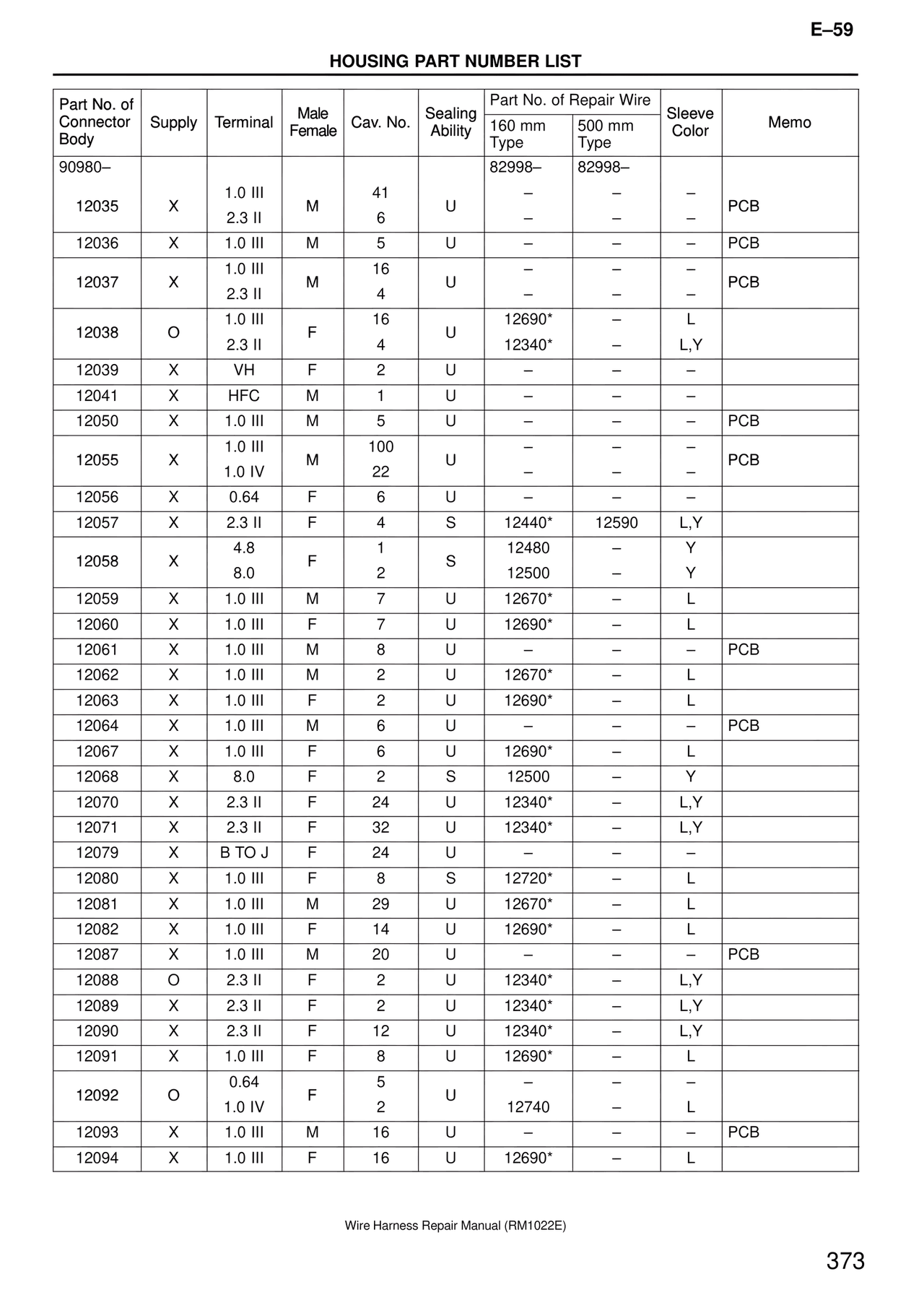

HOUSING PART NUMBER LIST

Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo

90980–

12035 | X | 1.0 III | M | 41 | U | 82998– – | 82998– – | – | PCB
         |   | 2.3 II  |   | 6  |   | –          | –          | – |

12036 | X | 1.0 III | M | 5 | U | – | – | – | PCB

12037 | X | 1.0 III | M | 16 | U | – | – | – | PCB
         |   | 2.3 II  |   | 4  |   | – | – | – |

12038 | O | 1.0 III | F | 16 | U | 12690* | – | L |
         |   | 2.3 II  |   | 4  |   | 12340* | – | L,Y |

12039 | X | VH | F | 2 | U | – | – | – |
12041 | X | HFC | M | 1 | U | – | – | – |
12050 | X | 1.0 III | M | 5 | U | – | – | – | PCB

12055 | X | 1.0 III | M | 100 | U | – | – | – | PCB
         |   | 1.0 IV  |   | 22  |   | – | – | – |

12056 | X | 0.64 | F | 6 | U | – | – | – |
12057 | X | 2.3 II | F | 4 | S | 12440* | 12590 | L,Y |

12058 | X | 4.8 | F | 1 | S | 12480 | – | Y |
         |   | 8.0 |   | 2 |   | 12500 | – | Y |

12059 | X | 1.0 III | M | 7 | U | 12670* | – | L |
12060 | X | 1.0 III | F | 7 | U | 12690* | – | L |
12061 | X | 1.0 III | M | 8 | U | – | – | – | PCB
12062 | X | 1.0 III | M | 2 | U | 12670* | – | L |
12063 | X | 1.0 III | F | 2 | U | 12690* | – | L |
12064 | X | 1.0 III | M | 6 | U | – | – | – | PCB
12067 | X | 1.0 III | F | 6 | U | 12690* | – | L |
12068 | X | 8.0 | F | 2 | S | 12500 | – | Y |
12070 | X | 2.3 II | F | 24 | U | 12340* | – | L,Y |
12071 | X | 2.3 II | F | 32 | U | 12340* | – | L,Y |
12079 | X | B TO J | F | 24 | U | – | – | – |
12080 | X | 1.0 III | F | 8 | S | 12720* | – | L |
12081 | X | 1.0 III | M | 29 | U | 12670* | – | L |
12082 | X | 1.0 III | F | 14 | U | 12690* | – | L |
12087 | X | 1.0 III | M | 20 | U | – | – | – | PCB
12088 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y |
12089 | X | 2.3 II | F | 2 | U | 12340* | – | L,Y |
12090 | X | 2.3 II | F | 12 | U | 12340* | – | L,Y |
12091 | X | 1.0 III | F | 8 | U | 12690* | – | L |

12092 | O | 0.64 | F | 5 | U | – | – | – |
         |   | 1.0 IV |   | 2 |   | 12740 | – | L |

12093 | X | 1.0 III | M | 16 | U | – | – | – | PCB
12094 | X | 1.0 III | F | 16 | U | 12690* | – | L |

Wire Harness Repair Manual (RM1022E)

373
