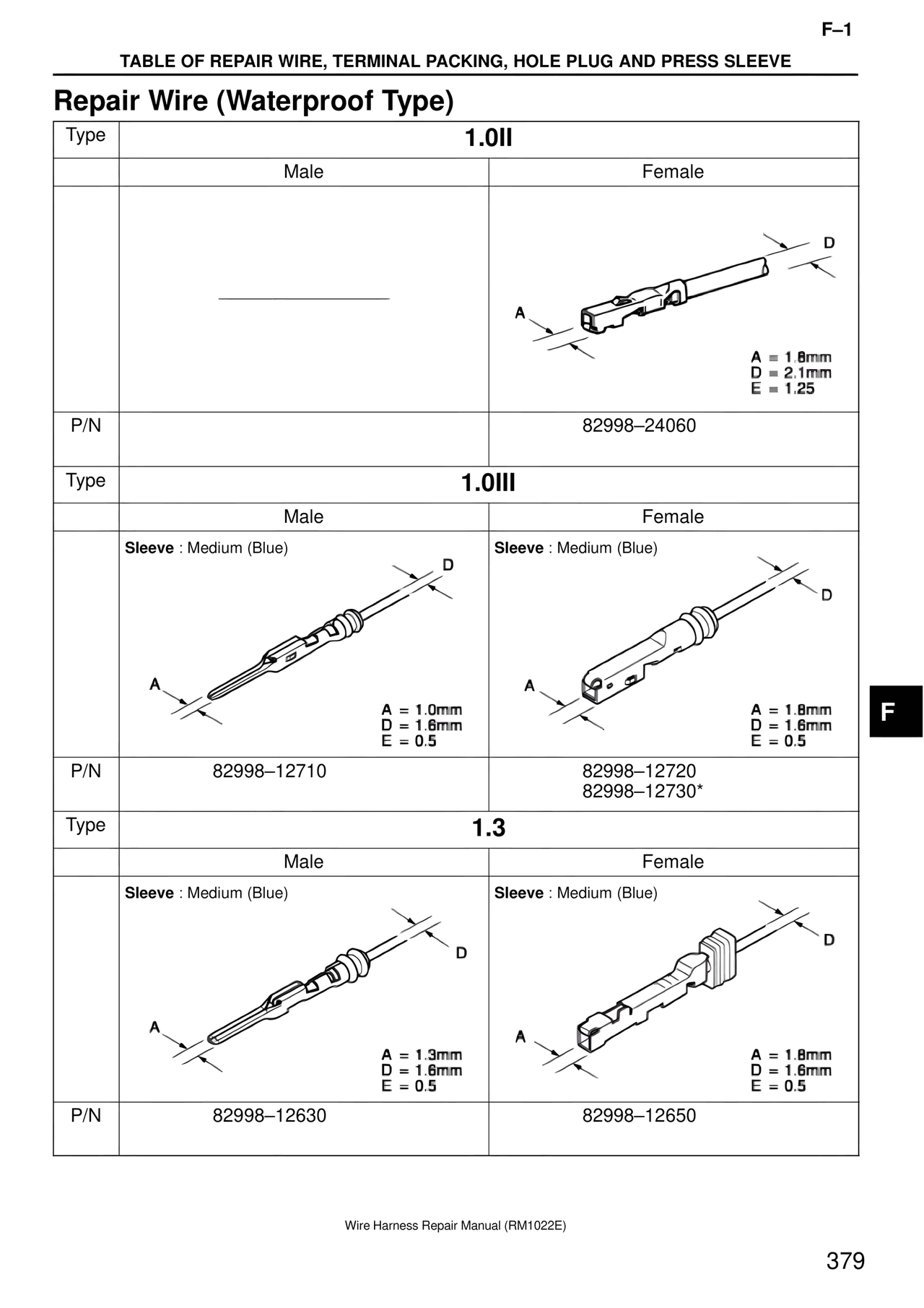

WH/Wire Harness — Repair Wire (Waterproof Type), page 379

F–1
TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Waterproof Type)

Type    1.0II
        Male                    Female

                                A = 1.8mm
                                D = 2.1mm
                                E = 1.25

P/N                             82998–24060

Type    1.0III
        Male                    Female
Sleeve : Medium (Blue)          Sleeve : Medium (Blue)

        A = 1.0mm               A = 1.8mm
        D = 1.6mm               D = 1.6mm
        E = 0.5                 E = 0.5

P/N     82998–12710             82998–12720
                                82998–12730*

Type    1.3
        Male                    Female
Sleeve : Medium (Blue)          Sleeve : Medium (Blue)

        A = 1.3mm               A = 1.8mm
        D = 1.6mm               D = 1.6mm
        E = 0.5                 E = 0.5

P/N     82998–12630             82998–12650

F
