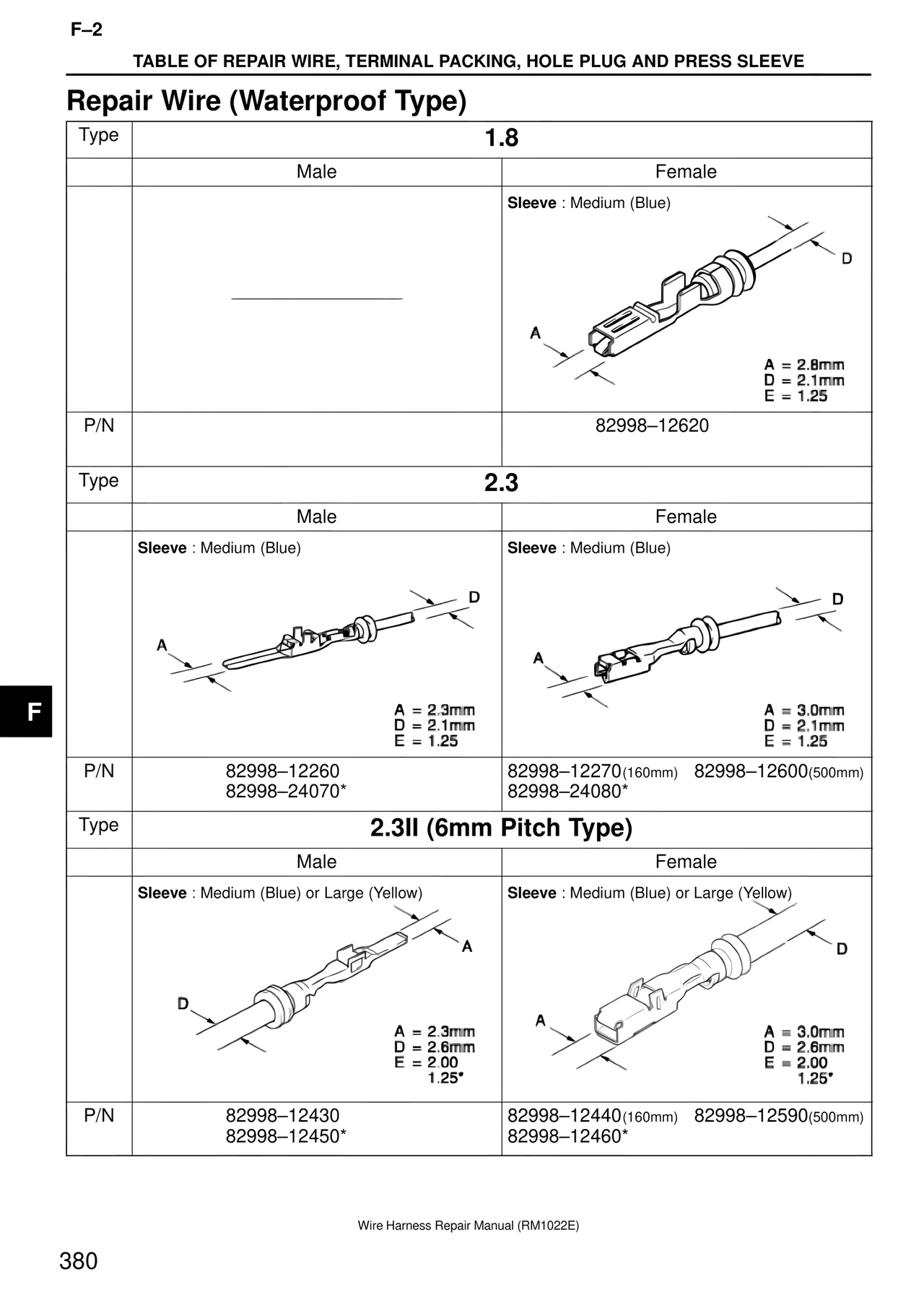

WH/Wire Harness — Repair Wire (Waterproof Type), page 380

F–2
TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Waterproof Type)

Type                                    1.8
         Male                                        Female
                                    Sleeve : Medium (Blue)

                                    A = 2.8mm
                                    D = 2.1mm
                                    E = 1.25

P/N                                         82998–12620

Type                                    2.3
         Male                                        Female
Sleeve : Medium (Blue)              Sleeve : Medium (Blue)

A = 2.3mm                               A = 3.0mm
D = 2.1mm                               D = 2.1mm
E = 1.25                                E = 1.25

P/N      82998–12260                82998–12270(160mm)    82998–12600(500mm)
         82998–24070*               82998–24080*

Type                              2.3II (6mm Pitch Type)
         Male                                        Female
Sleeve : Medium (Blue) or Large (Yellow)    Sleeve : Medium (Blue) or Large (Yellow)

A = 2.3mm                               A = 3.0mm
D = 2.6mm                               D = 2.6mm
E = 2.00                                E = 2.00
     1.25*                                   1.25*

P/N      82998–12430                82998–12440(160mm)    82998–12590(500mm)
         82998–12450*               82998–12460*

F

Wire Harness Repair Manual (RM1022E)
380
