F–3

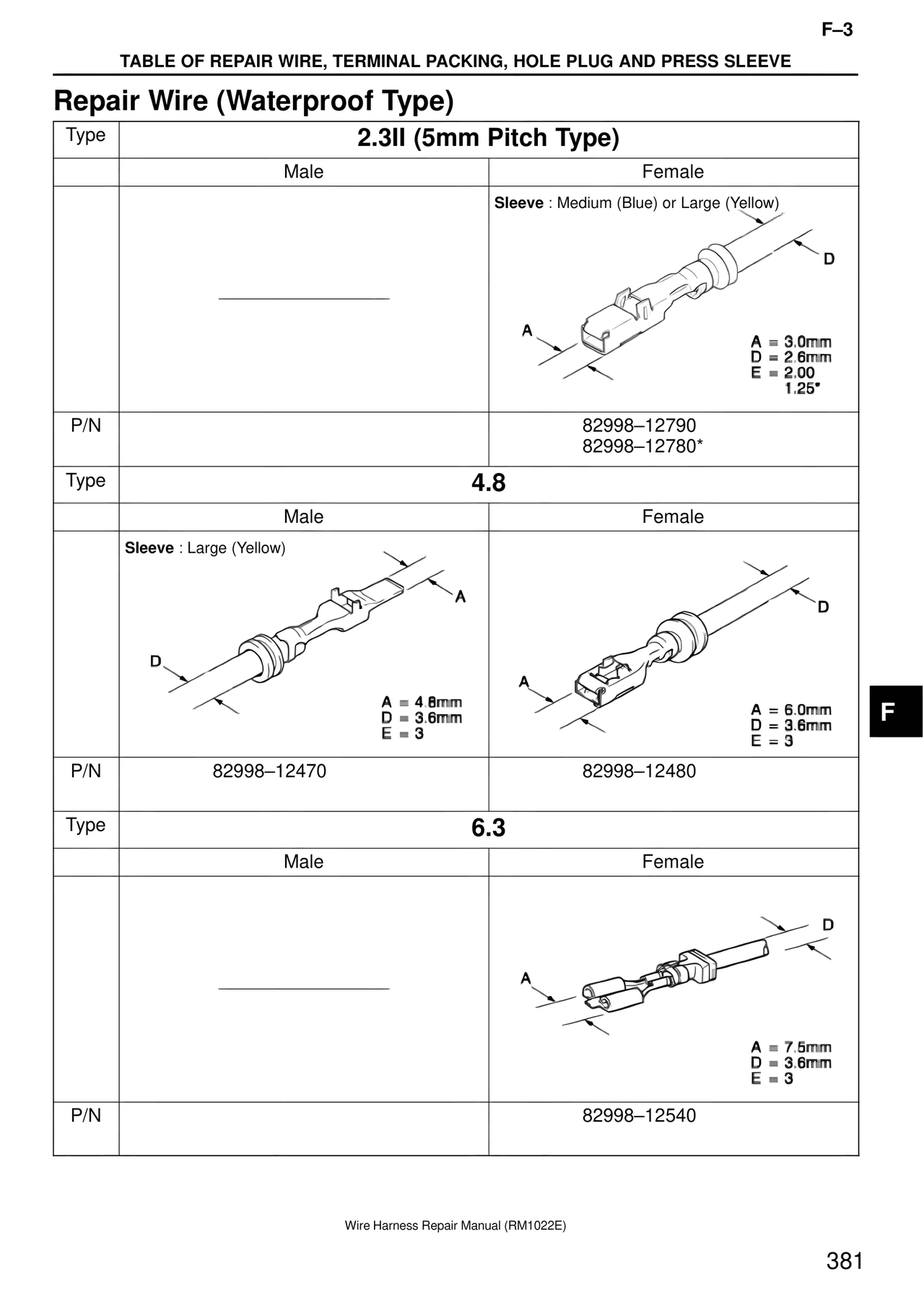

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Waterproof Type)

Type | 2.3II (5mm Pitch Type)
Male | Female
Sleeve : Medium (Blue) or Large (Yellow)
A = 3.0mm
D = 2.6mm
E = 2.00
1.25*
A
D

P/N | 82998–12790
82998–12780*

Type | 4.8
Male | Female
Sleeve : Large (Yellow)
A = 4.8mm
D = 3.6mm
E = 3
A
D

A = 6.0mm
D = 3.6mm
E = 3
A
D

P/N | 82998–12470 | 82998–12480

Type | 6.3
Male | Female

A = 7.5mm
D = 3.6mm
E = 3
A
D

P/N | 82998–12540

Wire Harness Repair Manual (RM1022E)
381
