F–4

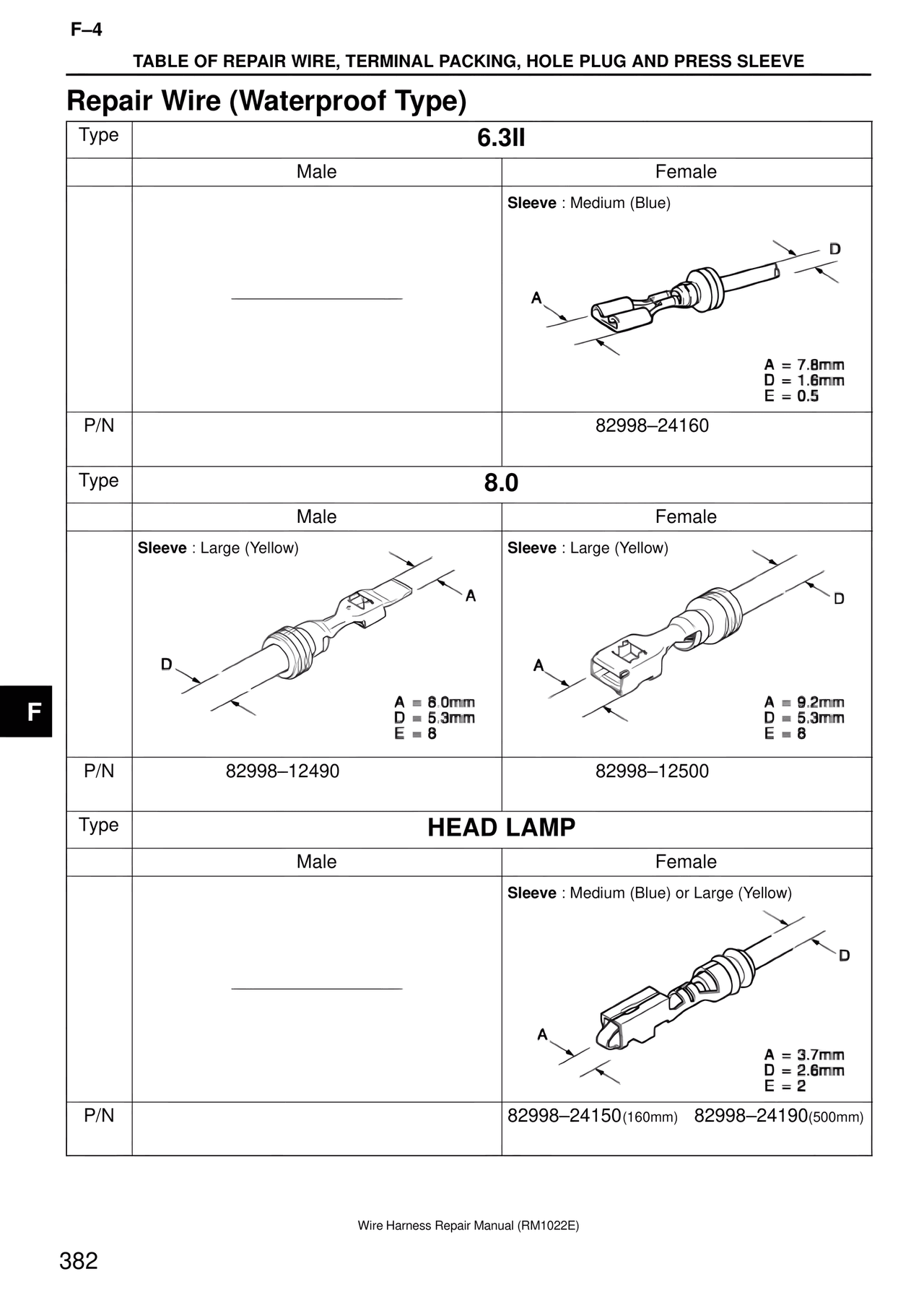

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Waterproof Type)

Type                          6.3II

                Male                              Female
                                  Sleeve : Medium (Blue)

                                  A
                                                              D

                                  A = 7.8mm
                                  D = 1.6mm
                                  E = 0.5

P/N                                               82998–24160

Type                          8.0

                Male                              Female
Sleeve : Large (Yellow)              Sleeve : Large (Yellow)

                              A                                            D

D                                        A

                A = 8.0mm                         A = 9.2mm
                D = 5.3mm                         D = 5.3mm
                E = 8                             E = 8

P/N         82998–12490                        82998–12500

Type                        HEAD LAMP

                Male                              Female
                                  Sleeve : Medium (Blue) or Large (Yellow)

                                                              D

                                  A

                                  A = 3.7mm
                                  D = 2.6mm
                                  E = 2

P/N                    82998–24150(160mm)    82998–24190(500mm)

F

Wire Harness Repair Manual (RM1022E)
382
