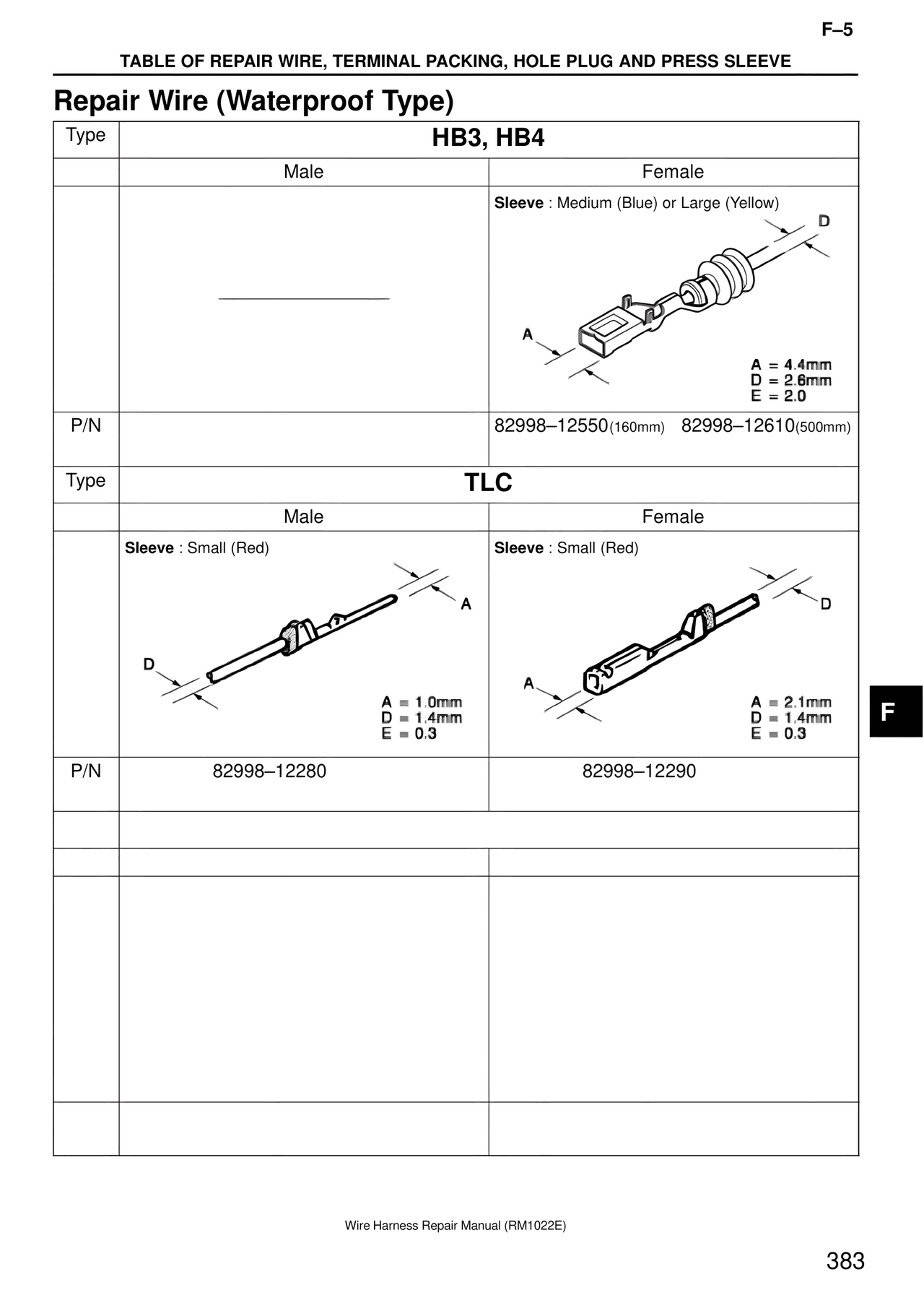

F–5 TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE Repair Wire (Waterproof Type) Type HB3, HB4 Male Female Sleeve : Medium (Blue) or Large (Yellow) D A A = 4.4mm D = 2.6mm E = 2.0 P/N 82998–12550(160mm) 82998–12610(500mm) Type TLC Male Female Sleeve : Small (Red) Sleeve : Small (Red) A D D A A = 1.0mm A = 2.1mm D = 1.4mm D = 1.4mm E = 0.3 E = 0.3 P/N 82998–12280 82998–12290 F Wire Harness Repair Manual (RM1022E) 383
