F–6

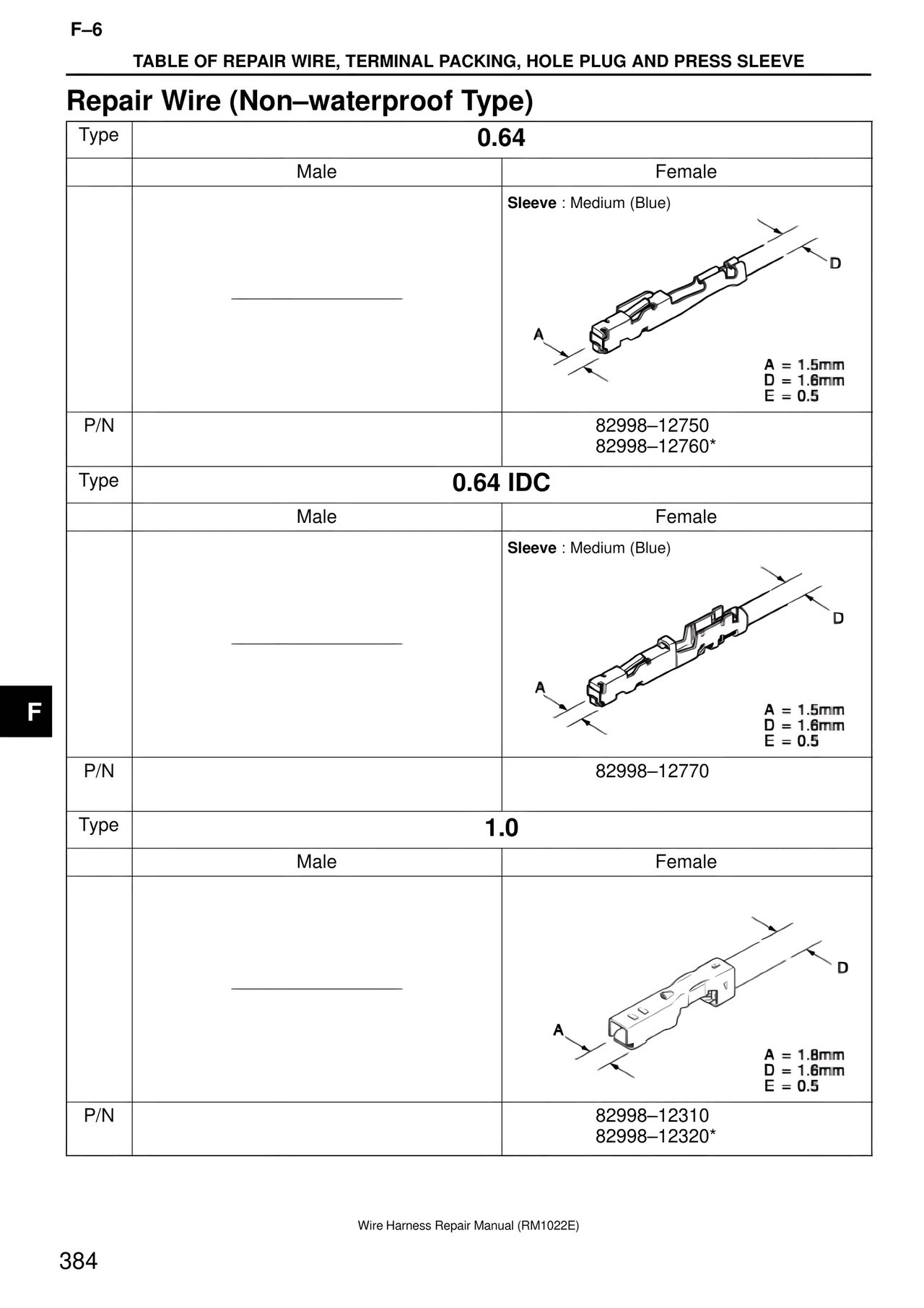

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type	0.64
Male	Female
Sleeve : Medium (Blue)
A
D
A = 1.5mm
D = 1.6mm
E = 0.5
P/N	82998–12750
82998–12760*

Type	0.64 IDC
Male	Female
Sleeve : Medium (Blue)
A
D
A = 1.5mm
D = 1.6mm
E = 0.5
P/N	82998–12770

Type	1.0
Male	Female
A
D
A = 1.8mm
D = 1.6mm
E = 0.5
P/N	82998–12310
82998–12320*

F

Wire Harness Repair Manual (RM1022E)
384
