F–7

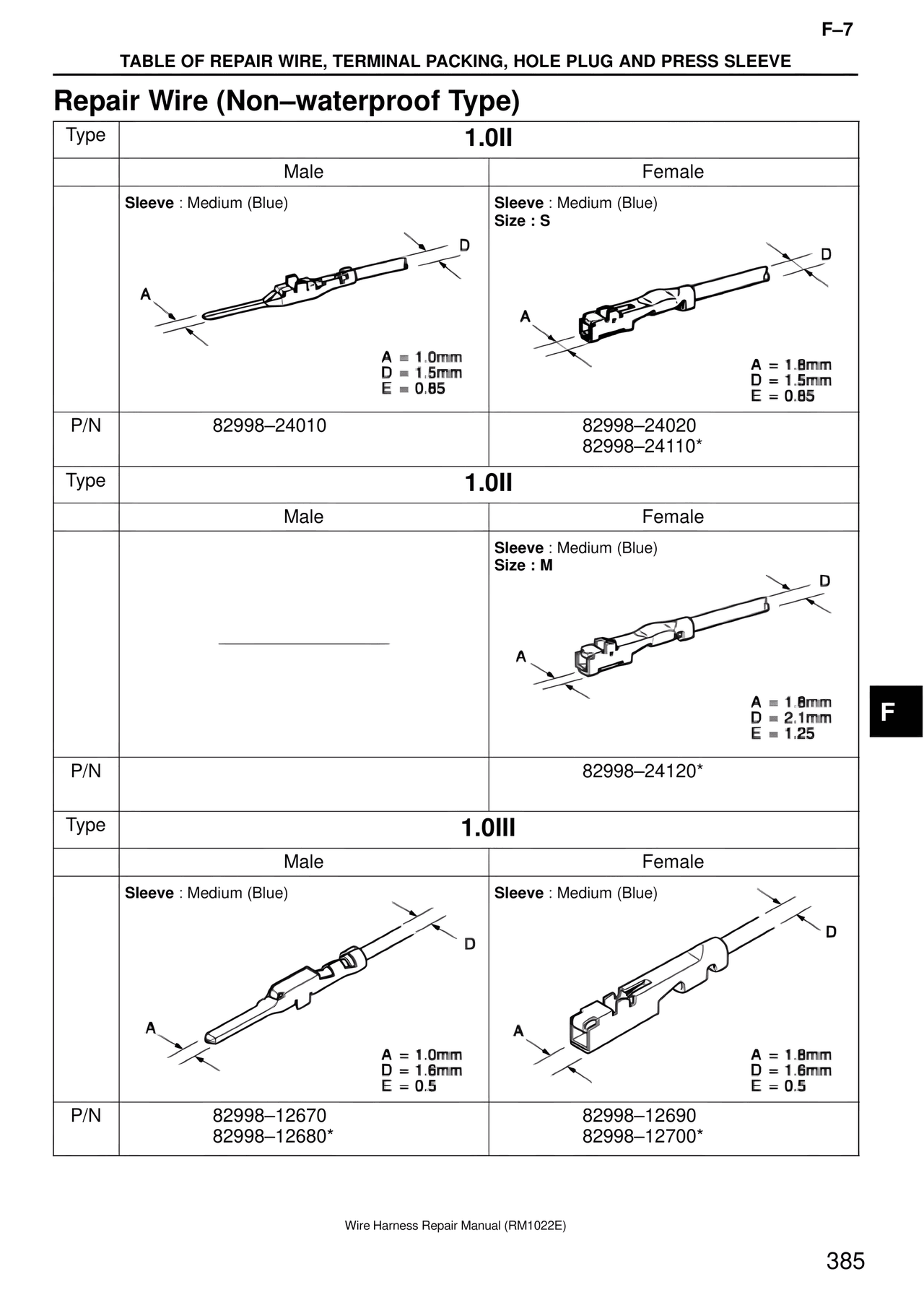

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type    1.0II

Male    Female

Sleeve : Medium (Blue)    Sleeve : Medium (Blue)
                          Size : S

A = 1.0mm    A = 1.8mm
D = 1.5mm    D = 1.5mm
E = 0.85     E = 0.85

P/N    82998–24010    82998–24020
                      82998–24110*

Type    1.0II

Male    Female

              Sleeve : Medium (Blue)
              Size : M

              A = 1.8mm
              D = 2.1mm
              E = 1.25

P/N              82998–24120*

Type    1.0III

Male    Female

Sleeve : Medium (Blue)    Sleeve : Medium (Blue)

A = 1.0mm    A = 1.8mm
D = 1.6mm    D = 1.6mm
E = 0.5      E = 0.5

P/N    82998–12670    82998–12690
       82998–12680*   82998–12700*

F

Wire Harness Repair Manual (RM1022E)

385
