F–8

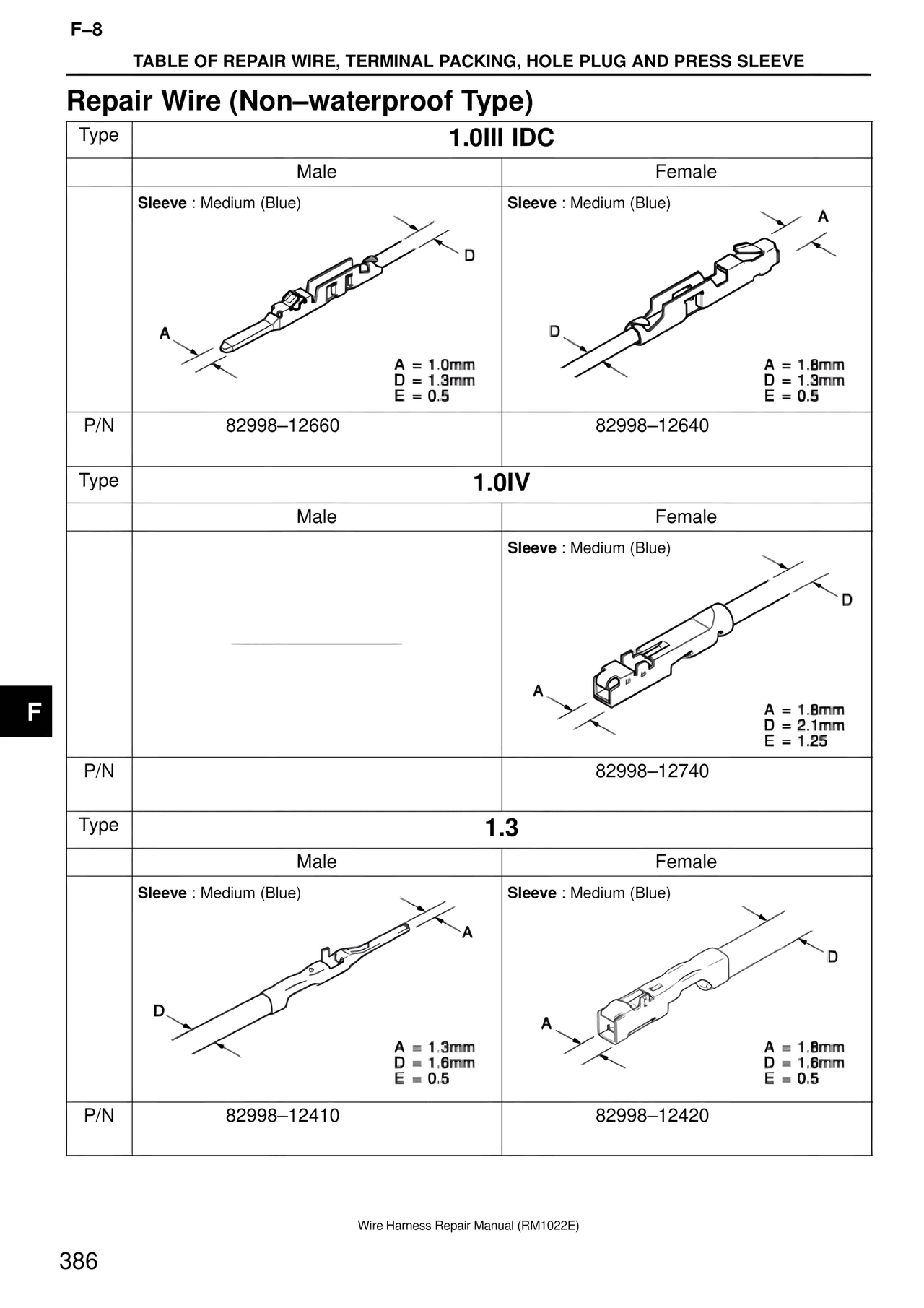

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE
Repair Wire (Non–waterproof Type)
Type 1.0III IDC
Male Female
Sleeve : Medium (Blue) Sleeve : Medium (Blue)
A
D A
D
A = 1.0mm A = 1.8mm
D = 1.3mm D = 1.3mm
E = 0.5 E = 0.5
P/N 82998–12660 82998–12640
Type 1.0IV
Male Female
Sleeve : Medium (Blue)
D
A
A = 1.8mm
D = 2.1mm
E = 1.25
P/N 82998–12740
Type 1.3
Male Female
Sleeve : Medium (Blue) Sleeve : Medium (Blue)
A D
D A
A = 1.3mm A = 1.8mm
D = 1.6mm D = 1.6mm
E = 0.5 E = 0.5
P/N 82998–12410 82998–12420
Wire Harness Repair Manual (RM1022E)
386
