F–9

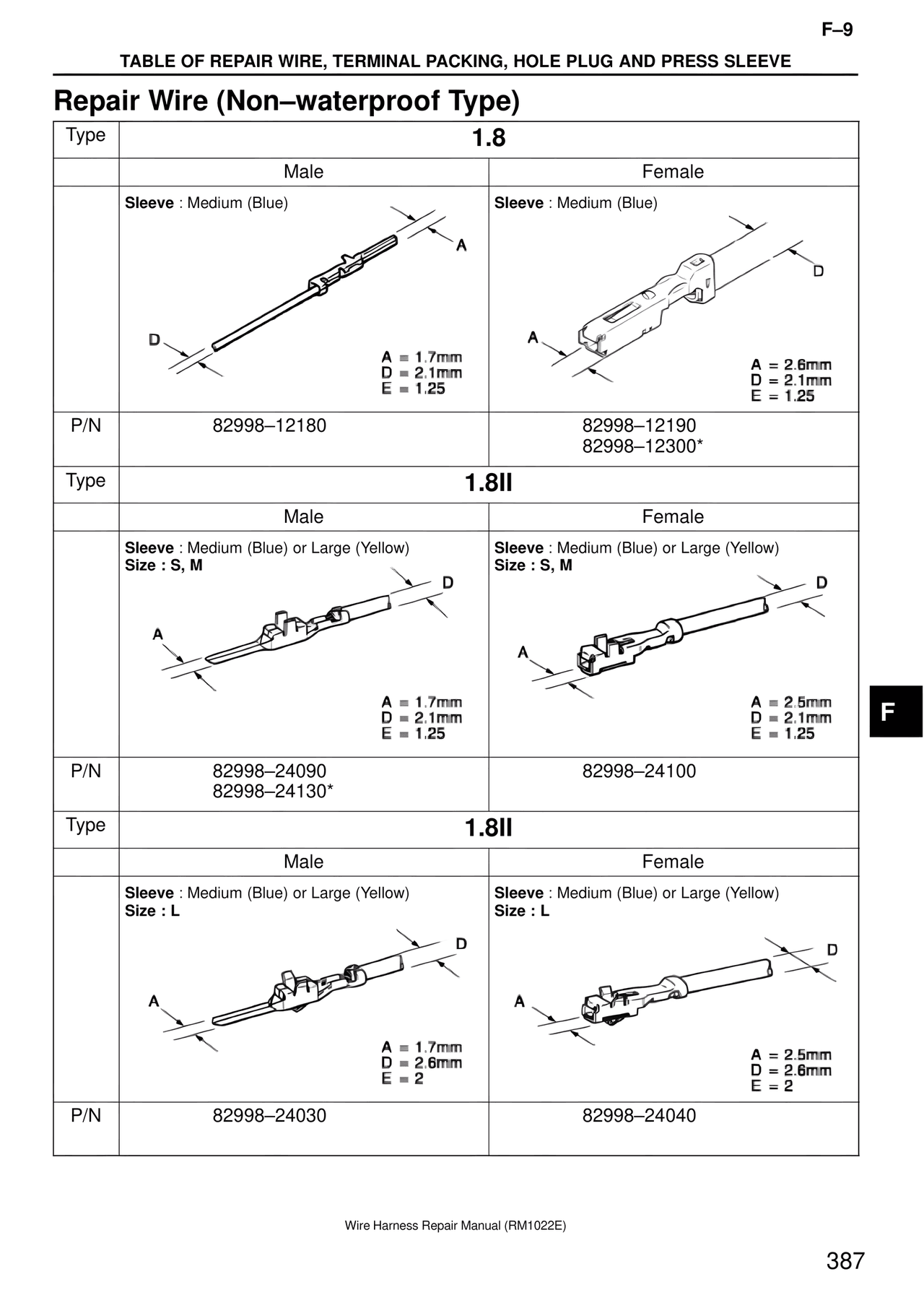

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type    1.8

Male    Female

Sleeve : Medium (Blue)    Sleeve : Medium (Blue)

A
D
A = 1.7mm
D = 2.1mm
E = 1.25

A
D
A = 2.6mm
D = 2.1mm
E = 1.25

P/N    82998–12180    82998–12190
82998–12300*

Type    1.8II

Male    Female

Sleeve : Medium (Blue) or Large (Yellow)    Sleeve : Medium (Blue) or Large (Yellow)
Size : S, M    Size : S, M

A
D
A = 1.7mm
D = 2.1mm
E = 1.25

A
D
A = 2.5mm
D = 2.1mm
E = 1.25

P/N    82998–24090
82998–24130*    82998–24100

Type    1.8II

Male    Female

Sleeve : Medium (Blue) or Large (Yellow)    Sleeve : Medium (Blue) or Large (Yellow)
Size : L    Size : L

A
D
A = 1.7mm
D = 2.6mm
E = 2

A
D
A = 2.5mm
D = 2.6mm
E = 2

P/N    82998–24030    82998–24040

F

Wire Harness Repair Manual (RM1022E)
387
