F–10

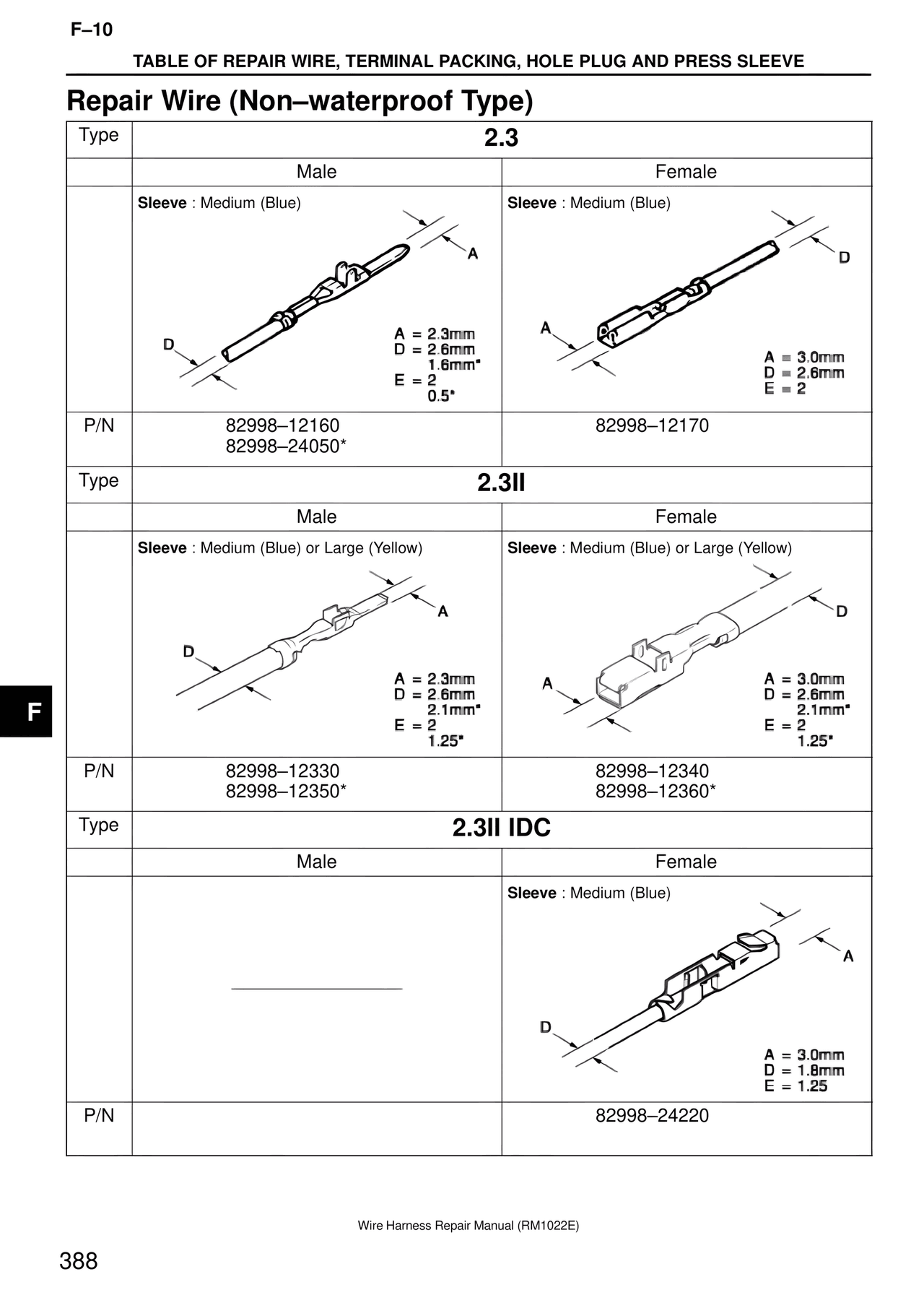

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type	2.3

Male	Female

Sleeve : Medium (Blue)				Sleeve : Medium (Blue)

A = 2.3mm
D = 2.6mm
1.6mm*
E = 2
0.5*
				A = 3.0mm
D = 2.6mm
E = 2

P/N	82998–12160
82998–24050*				82998–12170

Type	2.3II

Male	Female

Sleeve : Medium (Blue) or Large (Yellow)				Sleeve : Medium (Blue) or Large (Yellow)

A = 2.3mm
D = 2.6mm
2.1mm*
E = 2
1.25*
				A = 3.0mm
D = 2.6mm
2.1mm*
E = 2
1.25*

P/N	82998–12330
82998–12350*				82998–12340
82998–12360*

Type	2.3II IDC

Male	Female

Sleeve : Medium (Blue)

A = 3.0mm
D = 1.8mm
E = 1.25

P/N				82998–24220

F

388
Wire Harness Repair Manual (RM1022E)
