WH/Wire Harness — Repair Wire (Non–waterproof Type), page 389

F–11

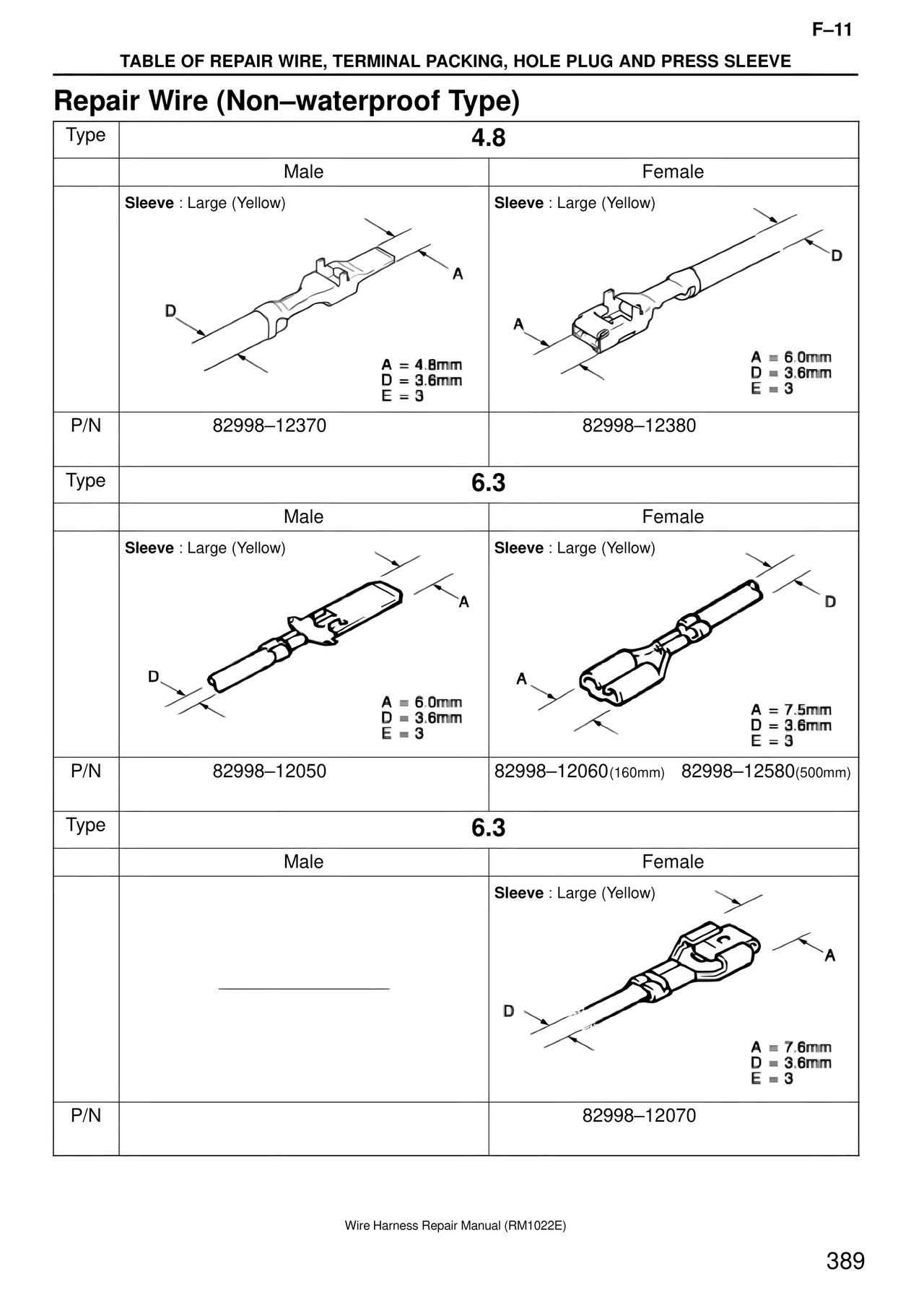

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type    4.8

Male                                    Female
Sleeve : Large (Yellow)                 Sleeve : Large (Yellow)

A                                       D
D
                                        A
A = 4.8mm                               A = 6.0mm
D = 3.6mm                               D = 3.6mm
E = 3                                   E = 3

P/N     82998–12370                     82998–12380

Type    6.3

Male                                    Female
Sleeve : Large (Yellow)                 Sleeve : Large (Yellow)

A                                       D
D
                                        A
A = 6.0mm                               A = 7.5mm
D = 3.6mm                               D = 3.6mm
E = 3                                   E = 3

P/N     82998–12050                     82998–12060(160mm)    82998–12580(500mm)

Type    6.3

Male                                    Female
                                        Sleeve : Large (Yellow)

                                        A
                                        D
                                        A = 7.6mm
                                        D = 3.6mm
                                        E = 3

P/N                                     82998–12070

Wire Harness Repair Manual (RM1022E)
389
