F–12

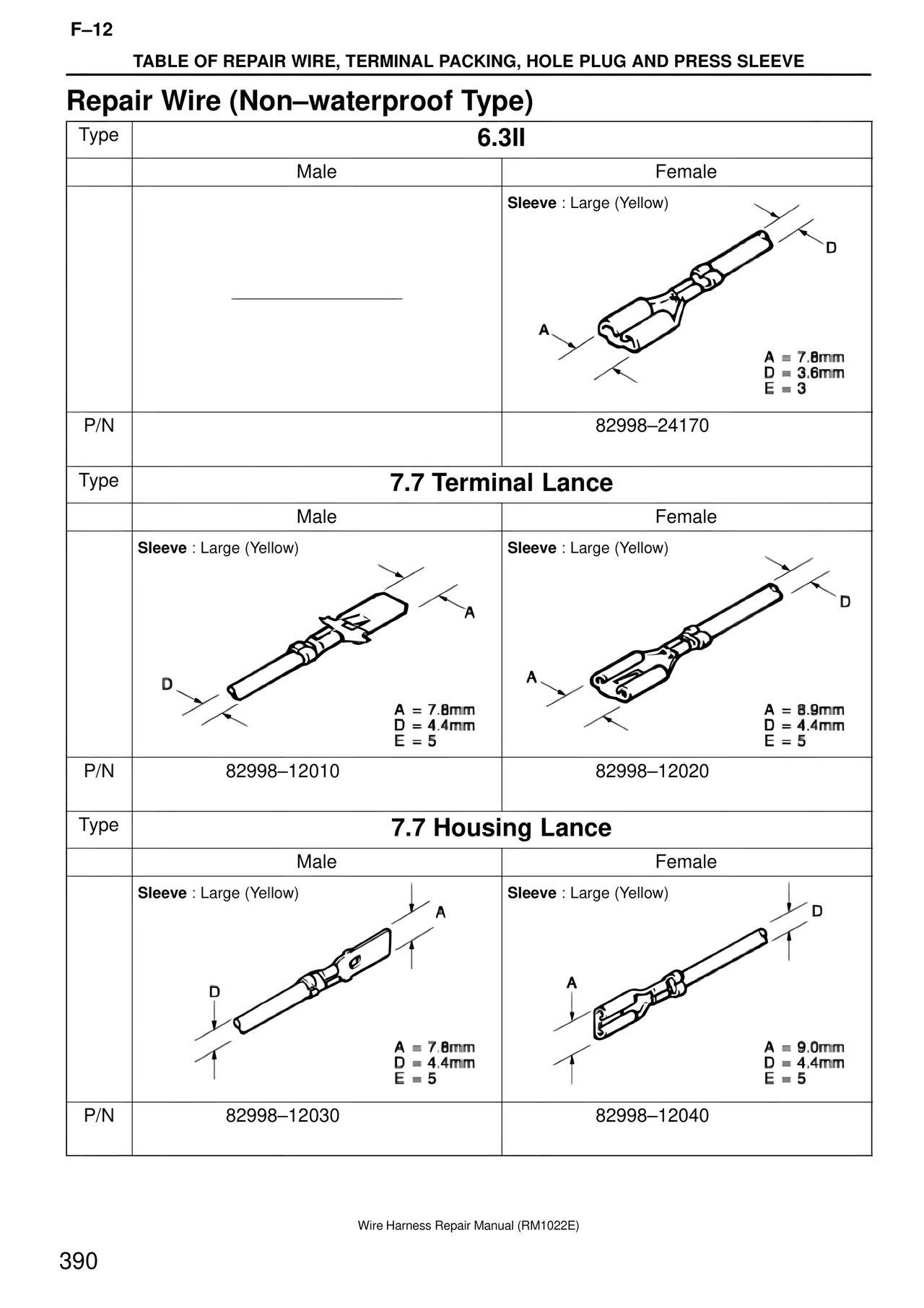

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type    6.3II

Male    Female
Sleeve : Large (Yellow)
A = 7.8mm
D = 3.6mm
E = 3

P/N    82998–24170

Type    7.7 Terminal Lance

Male    Female
Sleeve : Large (Yellow)    Sleeve : Large (Yellow)
A = 7.8mm
D = 4.4mm
E = 5
A = 8.9mm
D = 4.4mm
E = 5

P/N    82998–12010    82998–12020

Type    7.7 Housing Lance

Male    Female
Sleeve : Large (Yellow)    Sleeve : Large (Yellow)
A = 7.8mm
D = 4.4mm
E = 5
A = 9.0mm
D = 4.4mm
E = 5

P/N    82998–12030    82998–12040

Wire Harness Repair Manual (RM1022E)

390
