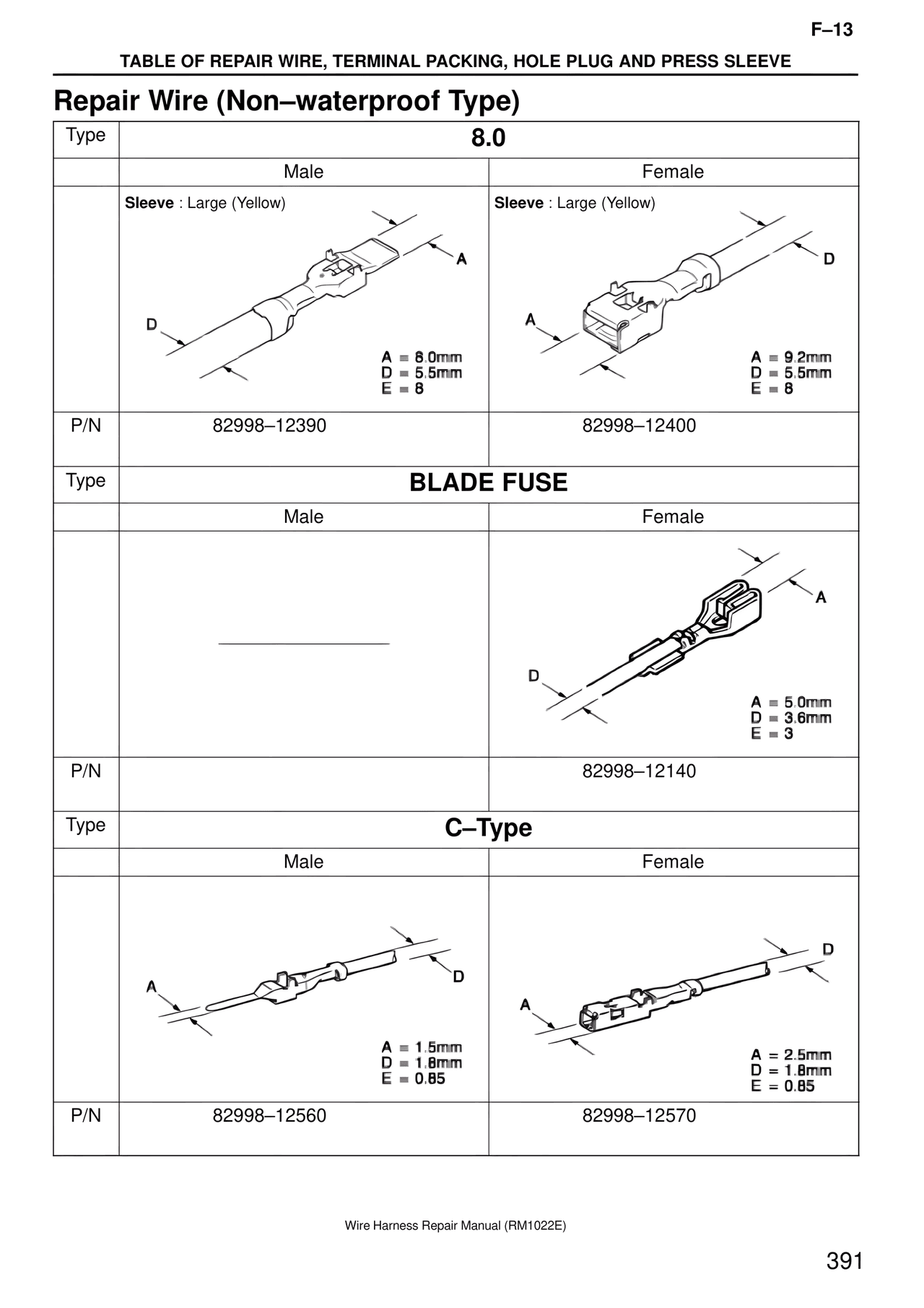

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE
Repair Wire (Non–waterproof Type)
Type | 8.0
Male | Female
Sleeve : Large (Yellow)
A
D
A = 8.0mm
D = 5.5mm
E = 8
Sleeve : Large (Yellow)
D
A
A = 9.2mm
D = 5.5mm
E = 8
P/N | 82998–12390 | 82998–12400
Type | BLADE FUSE
Male | Female
A
D
A = 5.0mm
D = 3.6mm
E = 3
P/N | | 82998–12140
Type | C–Type
Male | Female
A
D
A = 1.5mm
D = 1.8mm
E = 0.85
A
D
A = 2.5mm
D = 1.8mm
E = 0.85
P/N | 82998–12560 | 82998–12570
