F–14

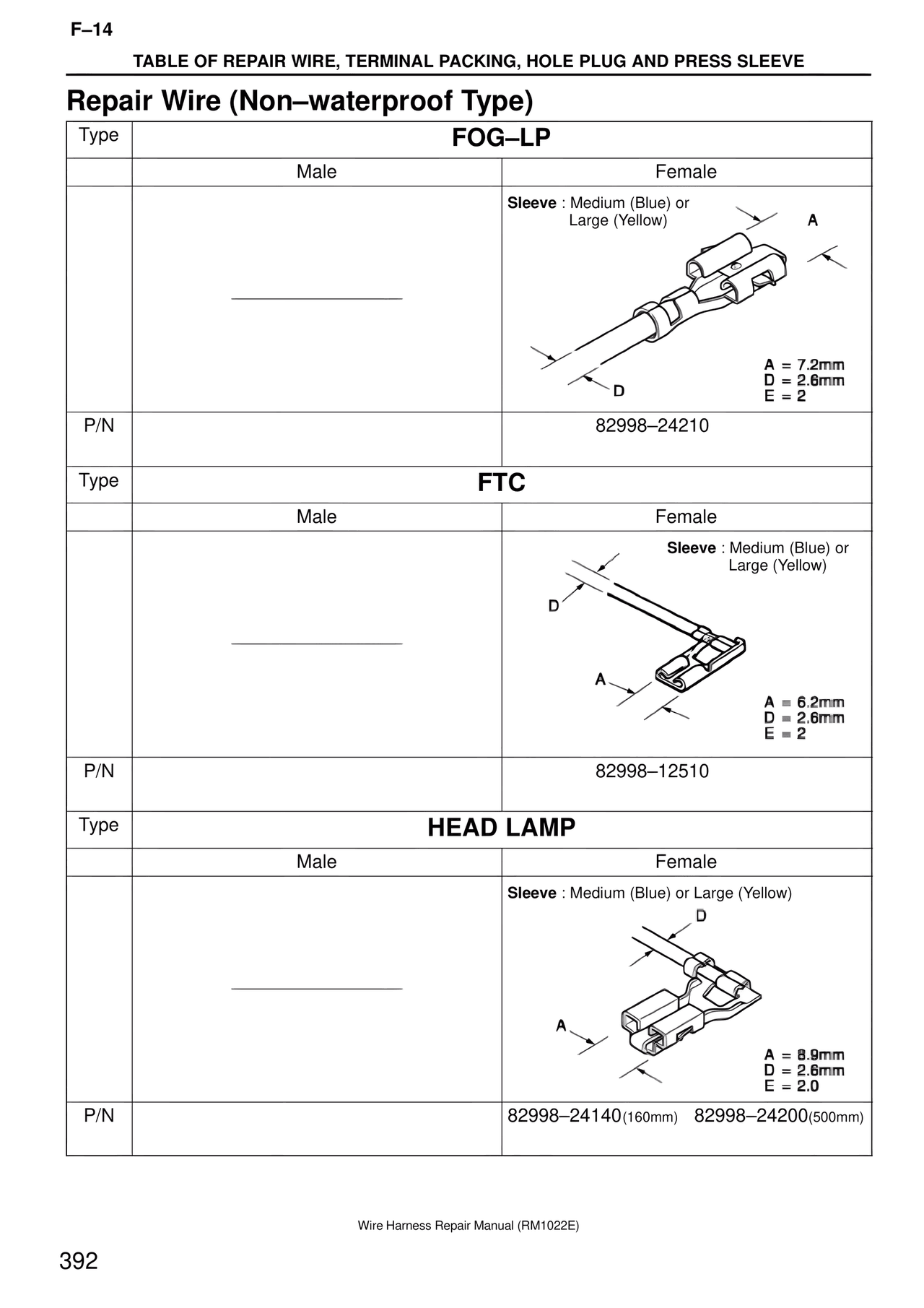

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE
Repair Wire (Non–waterproof Type)
Type FOG–LP
Male Female
Sleeve : Medium (Blue) or Large (Yellow)
A
A = 7.2mm
D = 2.6mm
E = 2
D
P/N 82998–24210
Type FTC
Male Female
Sleeve : Medium (Blue) or Large (Yellow)
D
A = 6.2mm
D = 2.6mm
E = 2
A
P/N 82998–12510
Type HEAD LAMP
Male Female
Sleeve : Medium (Blue) or Large (Yellow)
D
A
A = 8.9mm
D = 2.6mm
E = 2.0
P/N 82998–24140(160mm) 82998–24200(500mm)
Wire Harness Repair Manual (RM1022E)
392
