F–15

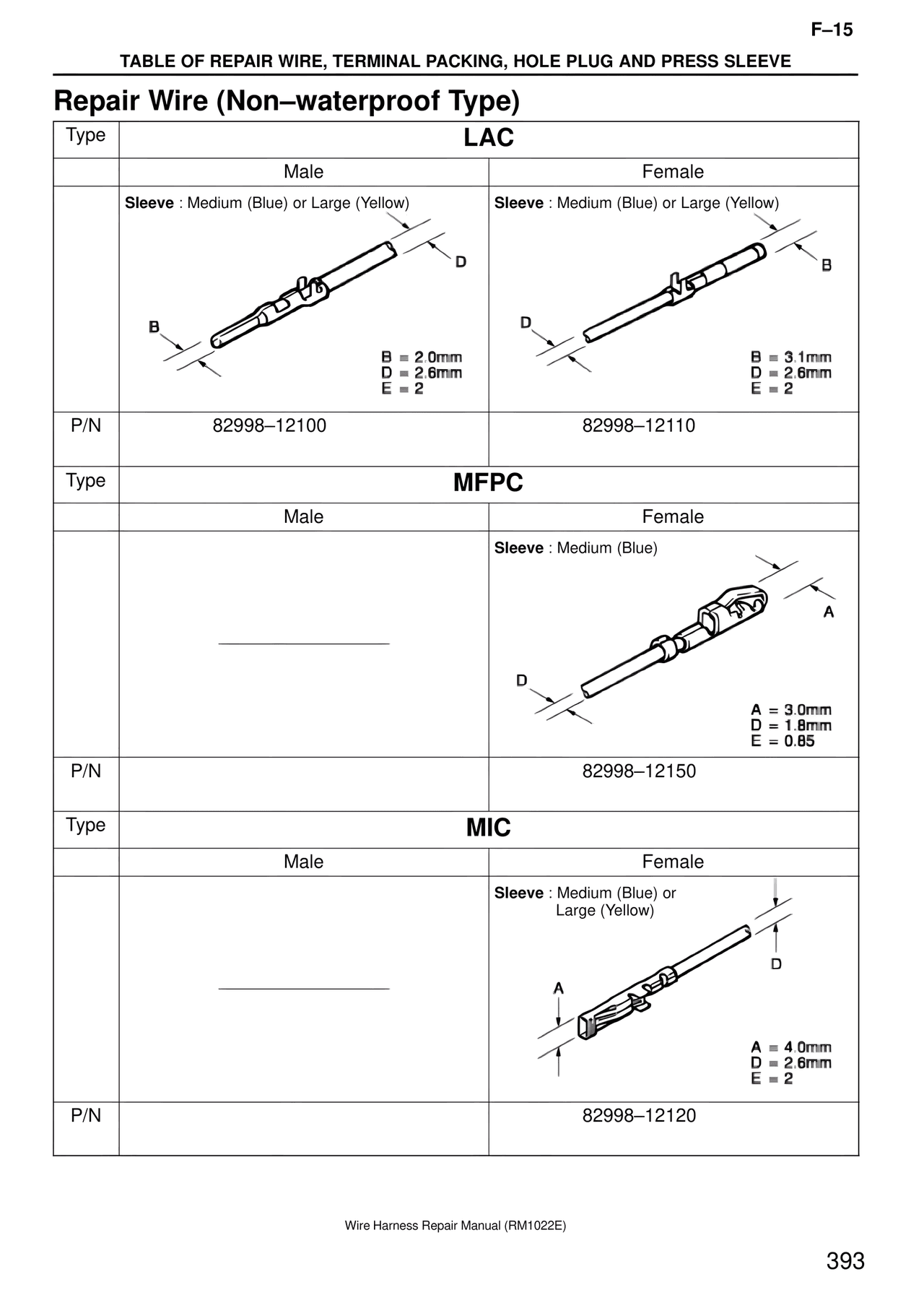

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type    LAC

Male    Female

Sleeve : Medium (Blue) or Large (Yellow)    Sleeve : Medium (Blue) or Large (Yellow)

B = 2.0mm
D = 2.6mm
E = 2

B = 3.1mm
D = 2.6mm
E = 2

P/N    82998–12100    82998–12110

Type    MFPC

Male    Female

Sleeve : Medium (Blue)

A = 3.0mm
D = 1.8mm
E = 0.85

P/N    82998–12150

Type    MIC

Male    Female

Sleeve : Medium (Blue) or
Large (Yellow)

A = 4.0mm
D = 2.6mm
E = 2

P/N    82998–12120

Wire Harness Repair Manual (RM1022E)

393
