F–16

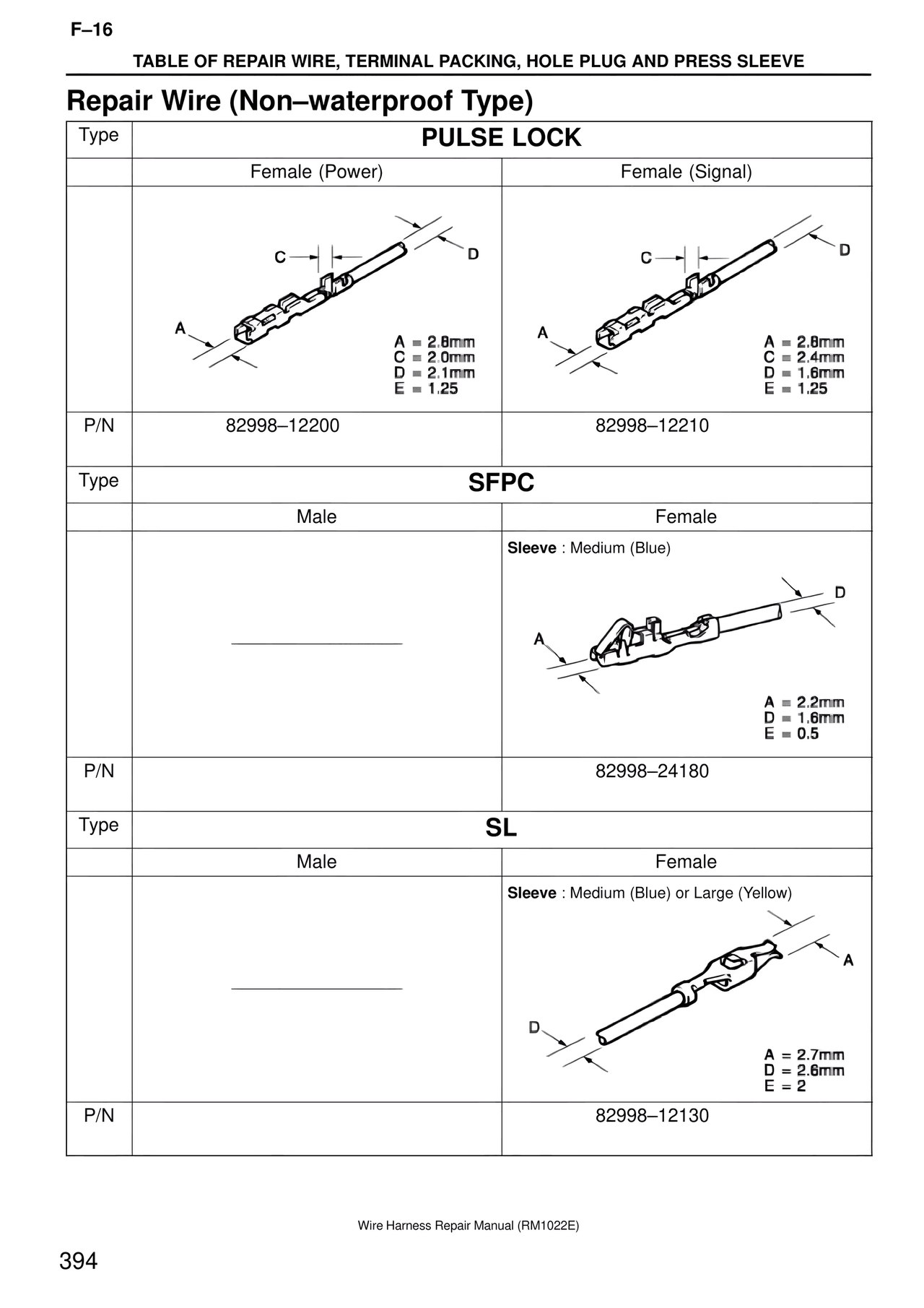

TABLE OF REPAIR WIRE, TERMINAL PACKING, HOLE PLUG AND PRESS SLEEVE

Repair Wire (Non–waterproof Type)

Type | PULSE LOCK

Female (Power) | Female (Signal)

C | D
A
A = 2.8mm
C = 2.0mm
D = 2.1mm
E = 1.25

C | D
A
A = 2.8mm
C = 2.4mm
D = 1.6mm
E = 1.25

P/N | 82998–12200 | 82998–12210

Type | SFPC

Male | Female

Sleeve : Medium (Blue)

A | D
A = 2.2mm
D = 1.6mm
E = 0.5

P/N | | 82998–24180

Type | SL

Male | Female

Sleeve : Medium (Blue) or Large (Yellow)

A
D
A = 2.7mm
D = 2.6mm
E = 2

P/N | | 82998–12130

Wire Harness Repair Manual (RM1022E)

394
