C–3

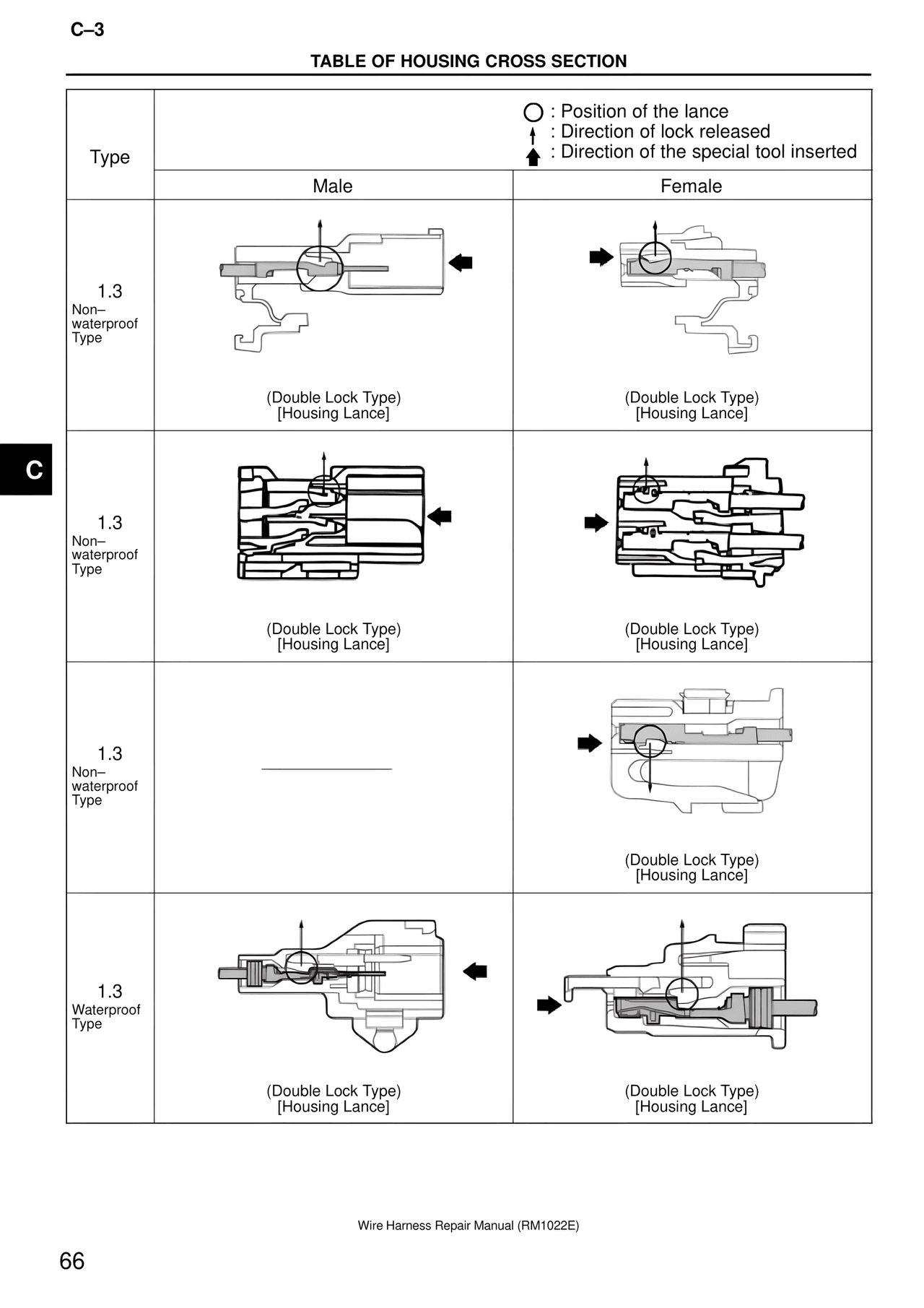

TABLE OF HOUSING CROSS SECTION

○ : Position of the lance
↕ : Direction of lock released
➤ : Direction of the special tool inserted

Type

Male                                          Female

1.3
Non–
waterproof
Type

(Double Lock Type)
[Housing Lance]

(Double Lock Type)
[Housing Lance]

1.3
Non–
waterproof
Type

(Double Lock Type)
[Housing Lance]

(Double Lock Type)
[Housing Lance]

1.3
Non–
waterproof
Type

(Double Lock Type)
[Housing Lance]

1.3
Waterproof
Type

(Double Lock Type)
[Housing Lance]

(Double Lock Type)
[Housing Lance]

C

Wire Harness Repair Manual (RM1022E)

66
