WH/Wire Harness — Table of Housing Cross Section, page 67

C–4

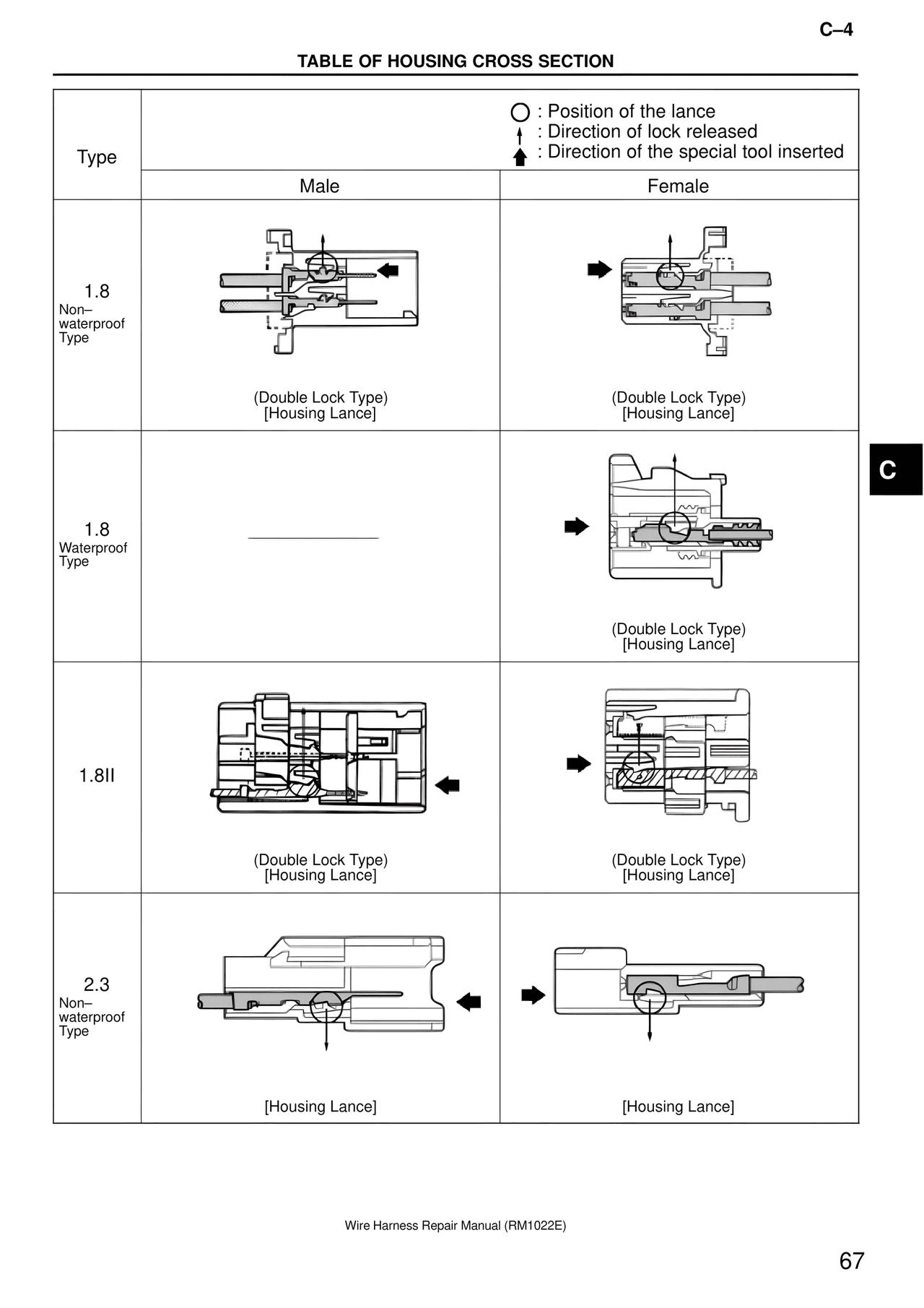

TABLE OF HOUSING CROSS SECTION

○ : Position of the lance
↑ : Direction of lock released
↑ : Direction of the special tool inserted

Type

Male                                    Female

1.8
Non–
waterproof
Type

(Double Lock Type)          (Double Lock Type)
[Housing Lance]                [Housing Lance]

1.8
Waterproof
Type

(Double Lock Type)
[Housing Lance]

1.8II

(Double Lock Type)          (Double Lock Type)
[Housing Lance]                [Housing Lance]

2.3
Non–
waterproof
Type

[Housing Lance]                [Housing Lance]

C

Wire Harness Repair Manual (RM1022E)

67
