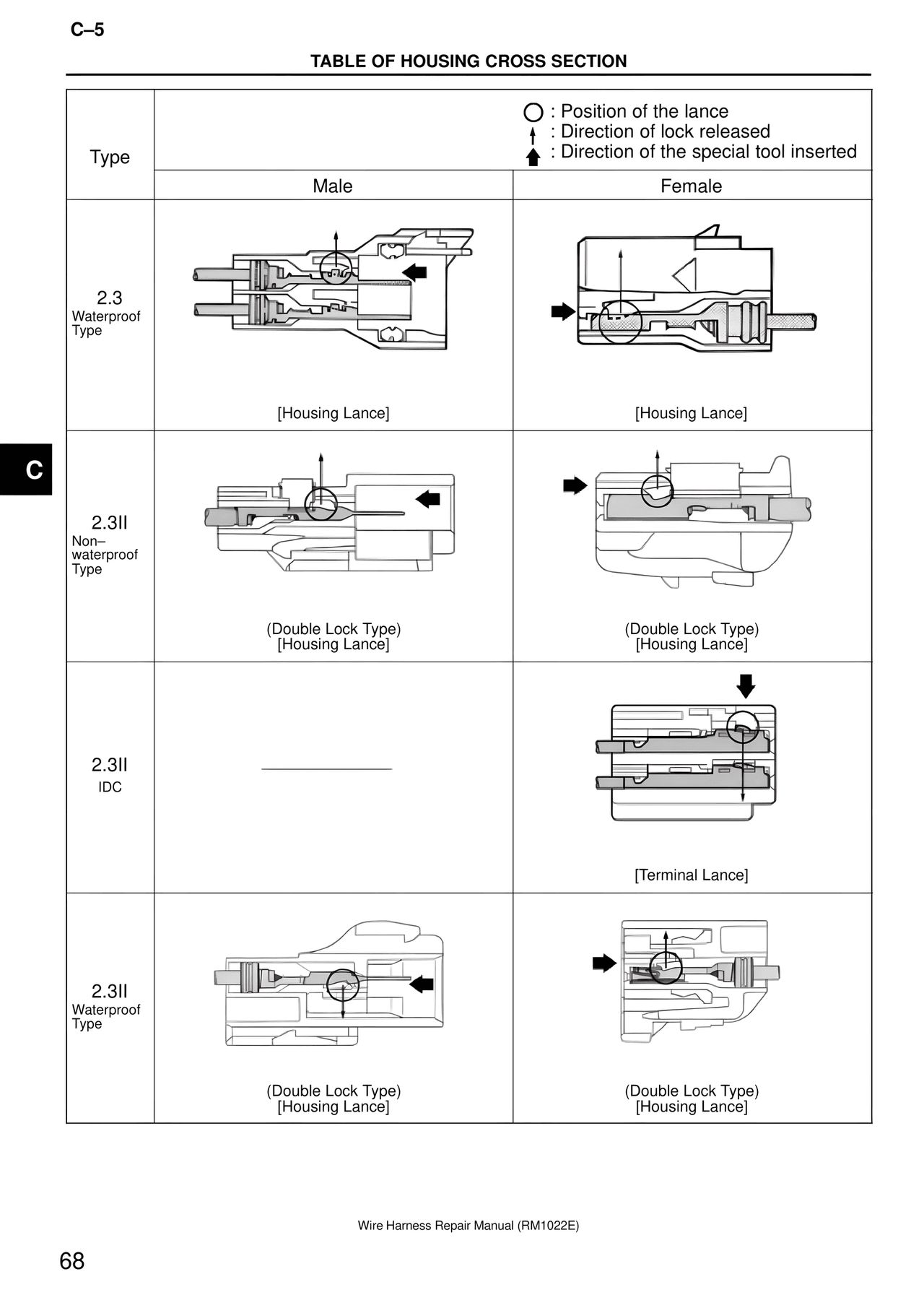

C–5 TABLE OF HOUSING CROSS SECTION ○ : Position of the lance ↑ : Direction of lock released ↑ : Direction of the special tool inserted Type Male Female 2.3 Waterproof Type [Housing Lance] [Housing Lance] 2.3II Non– waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] 2.3II IDC [Terminal Lance] 2.3II Waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] C Wire Harness Repair Manual (RM1022E) 68
