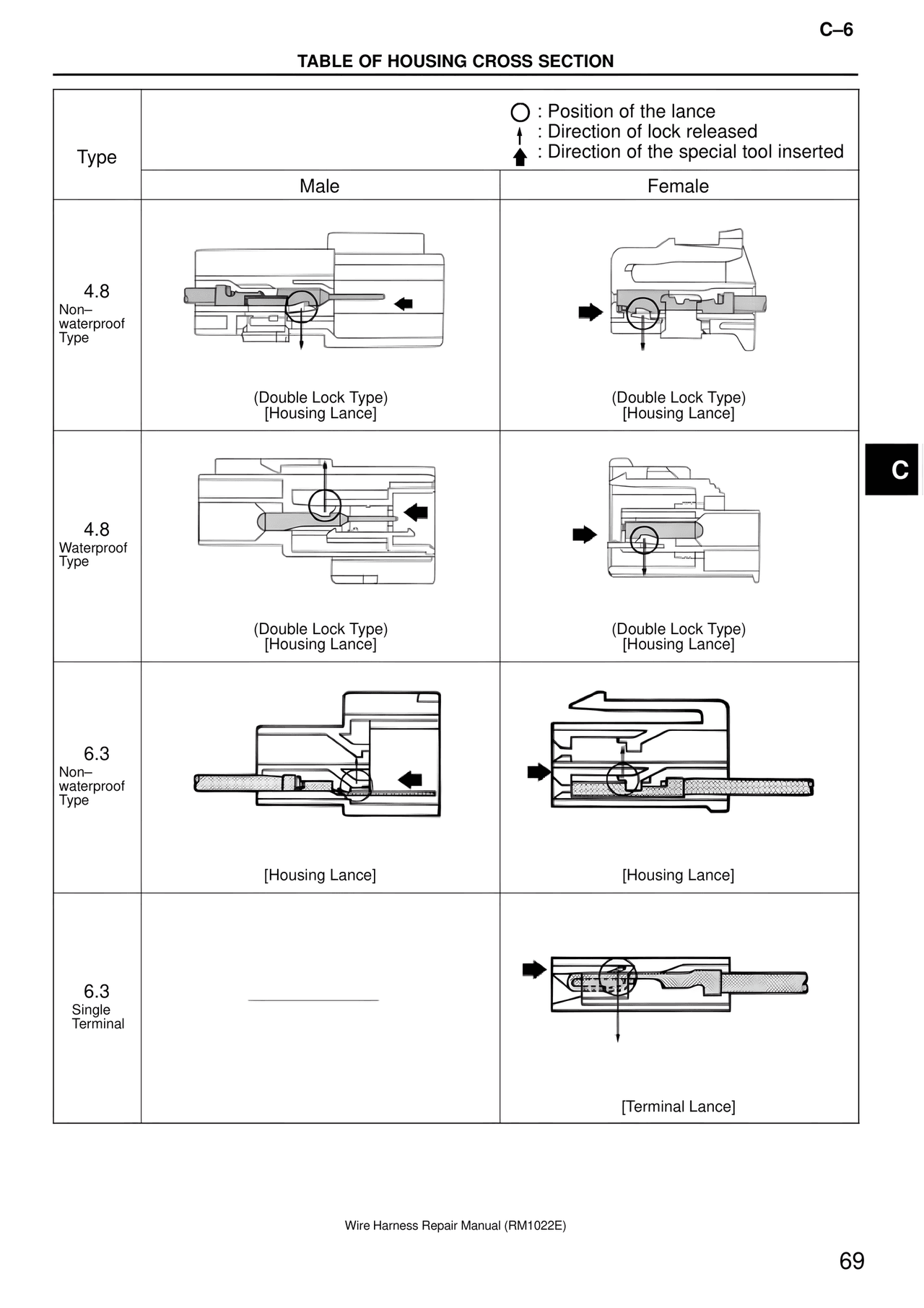

C–6 TABLE OF HOUSING CROSS SECTION ○ : Position of the lance ↕ : Direction of lock released ↑ : Direction of the special tool inserted Type Male Female 4.8 Non– waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] C 4.8 Waterproof Type (Double Lock Type) [Housing Lance] (Double Lock Type) [Housing Lance] 6.3 Non– waterproof Type [Housing Lance] [Housing Lance] 6.3 Single Terminal [Terminal Lance] Wire Harness Repair Manual (RM1022E) 69
