C–7

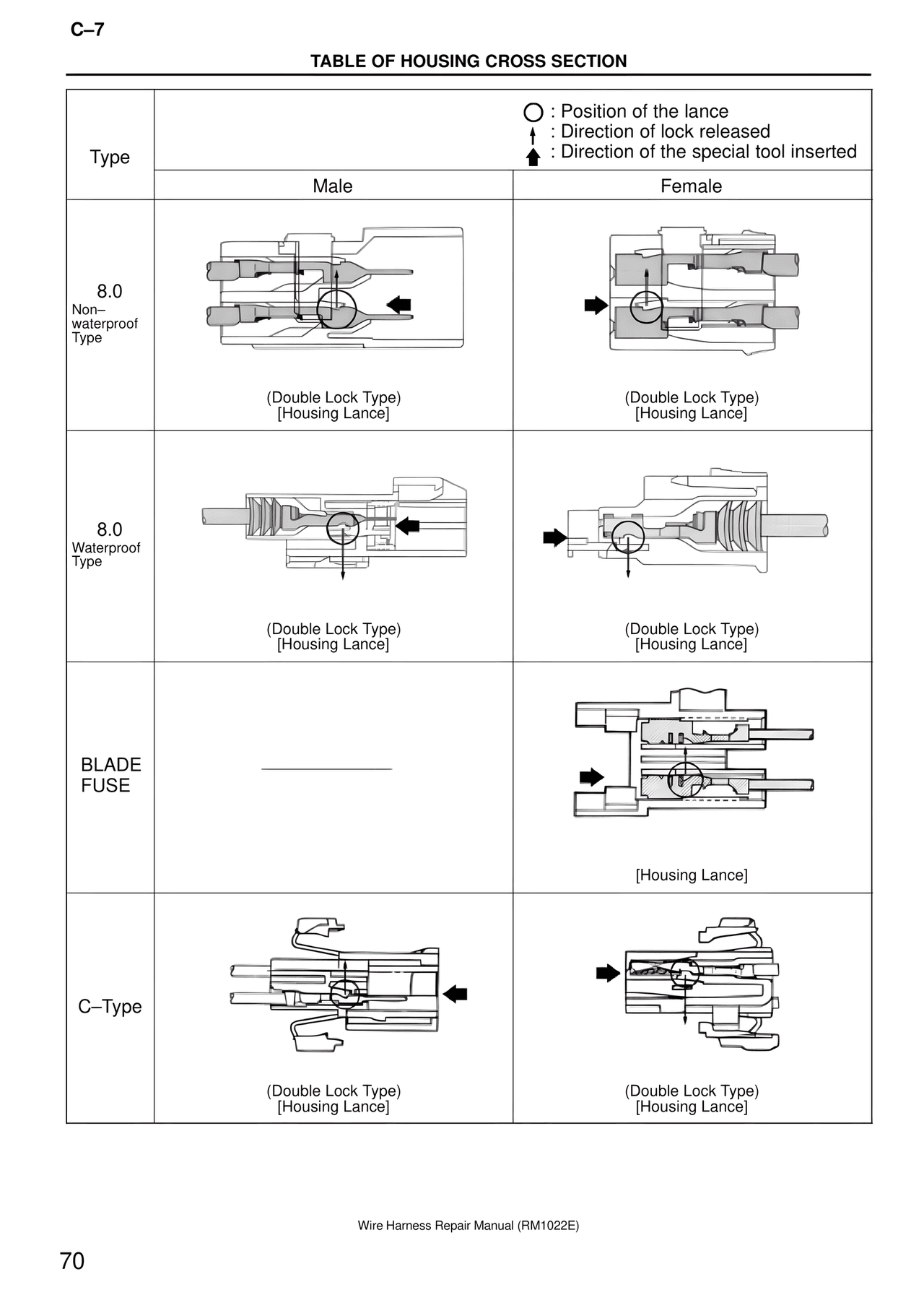

TABLE OF HOUSING CROSS SECTION
○ : Position of the lance
↑ : Direction of lock released
↑ : Direction of the special tool inserted
Type
Male Female
8.0
Non–
waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
8.0
Waterproof
Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
BLADE
FUSE
[Housing Lance]
C–Type
(Double Lock Type)
[Housing Lance]
(Double Lock Type)
[Housing Lance]
Wire Harness Repair Manual (RM1022E)
70
