WH/Wire Harness — Table of Housing Cross Section, page 71

C–8

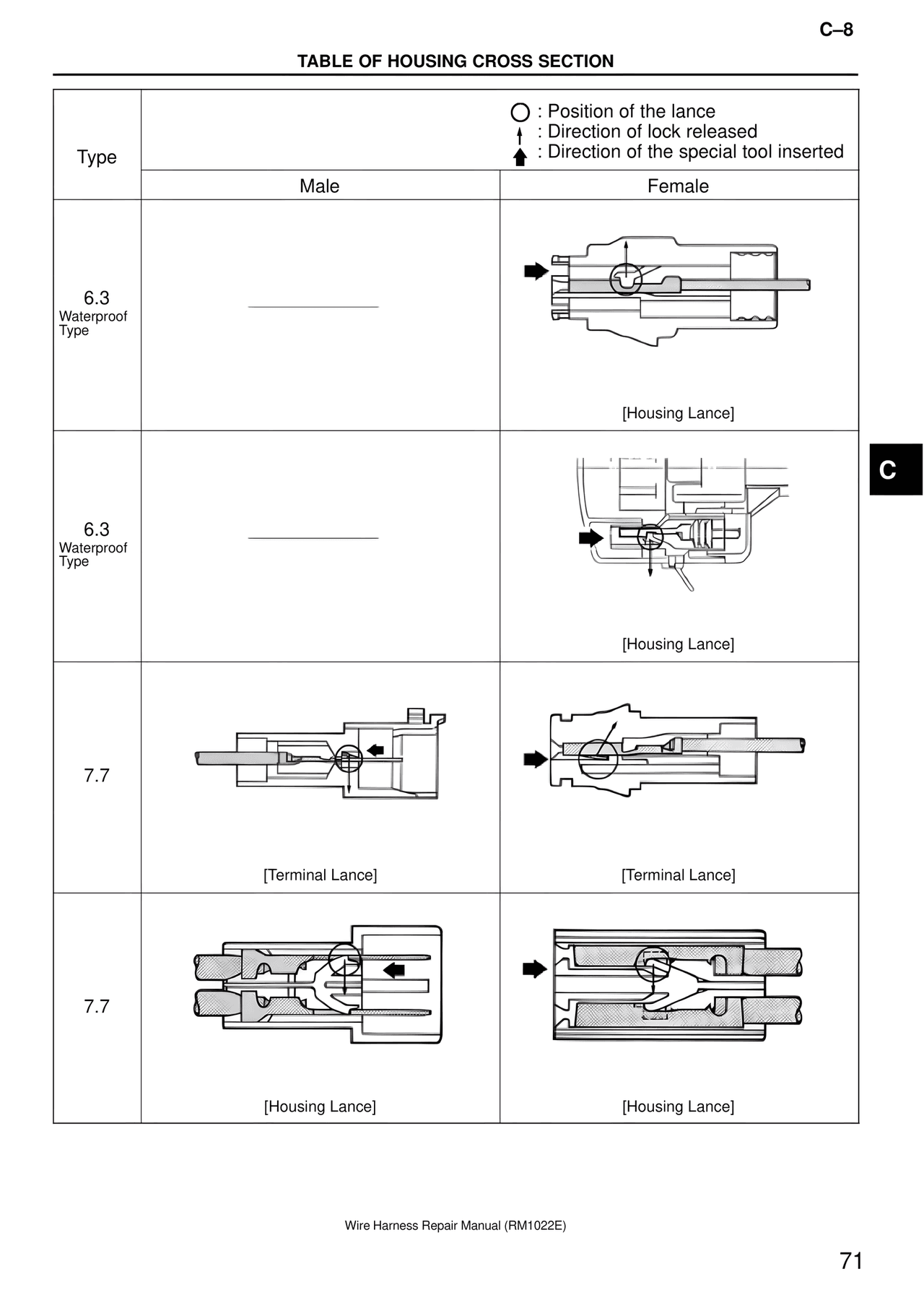

TABLE OF HOUSING CROSS SECTION

○ : Position of the lance
↕ : Direction of lock released
▲ : Direction of the special tool inserted

Type
Male                          Female

6.3
Waterproof
Type

[Housing Lance]

6.3
Waterproof
Type

[Housing Lance]

7.7

[Terminal Lance]              [Terminal Lance]

7.7

[Housing Lance]               [Housing Lance]
