WH/Wire Harness — <female> 12P Waterproof Type, page 95

D–20

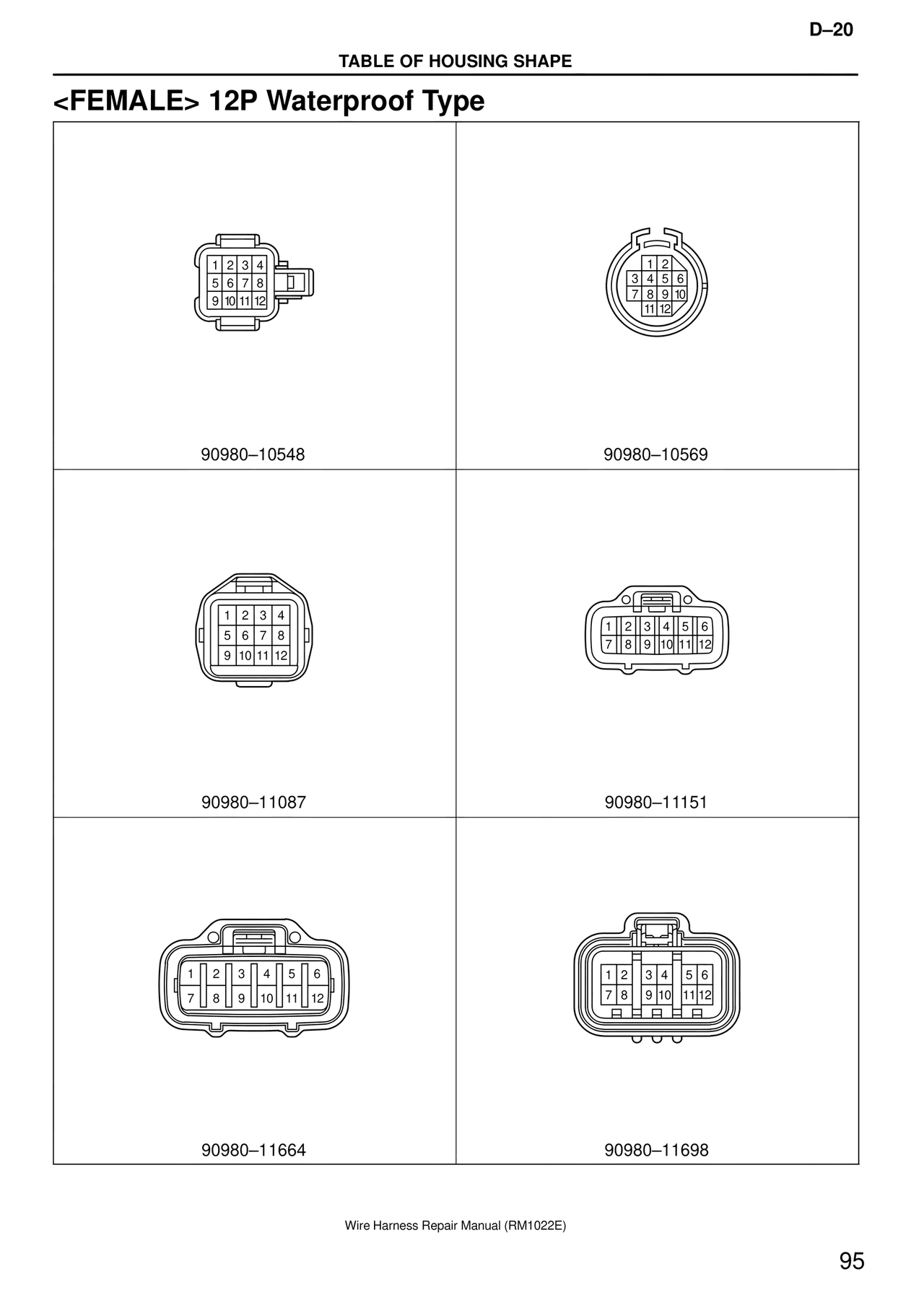

TABLE OF HOUSING SHAPE

<FEMALE> 12P Waterproof Type

1 2 3 4
5 6 7 8
9 10 11 12

90980–10548

1 2
3 4 5 6
7 8 9 10
11 12

90980–10569

1 2 3 4
5 6 7 8
9 10 11 12

90980–11087

1 2 3 4 5 6
7 8 9 10 11 12

90980–11151

1 2 3 4 5 6
7 8 9 10 11 12

90980–11664

1 2 3 4 5 6
7 8 9 10 11 12

90980–11698

Wire Harness Repair Manual (RM1022E)
