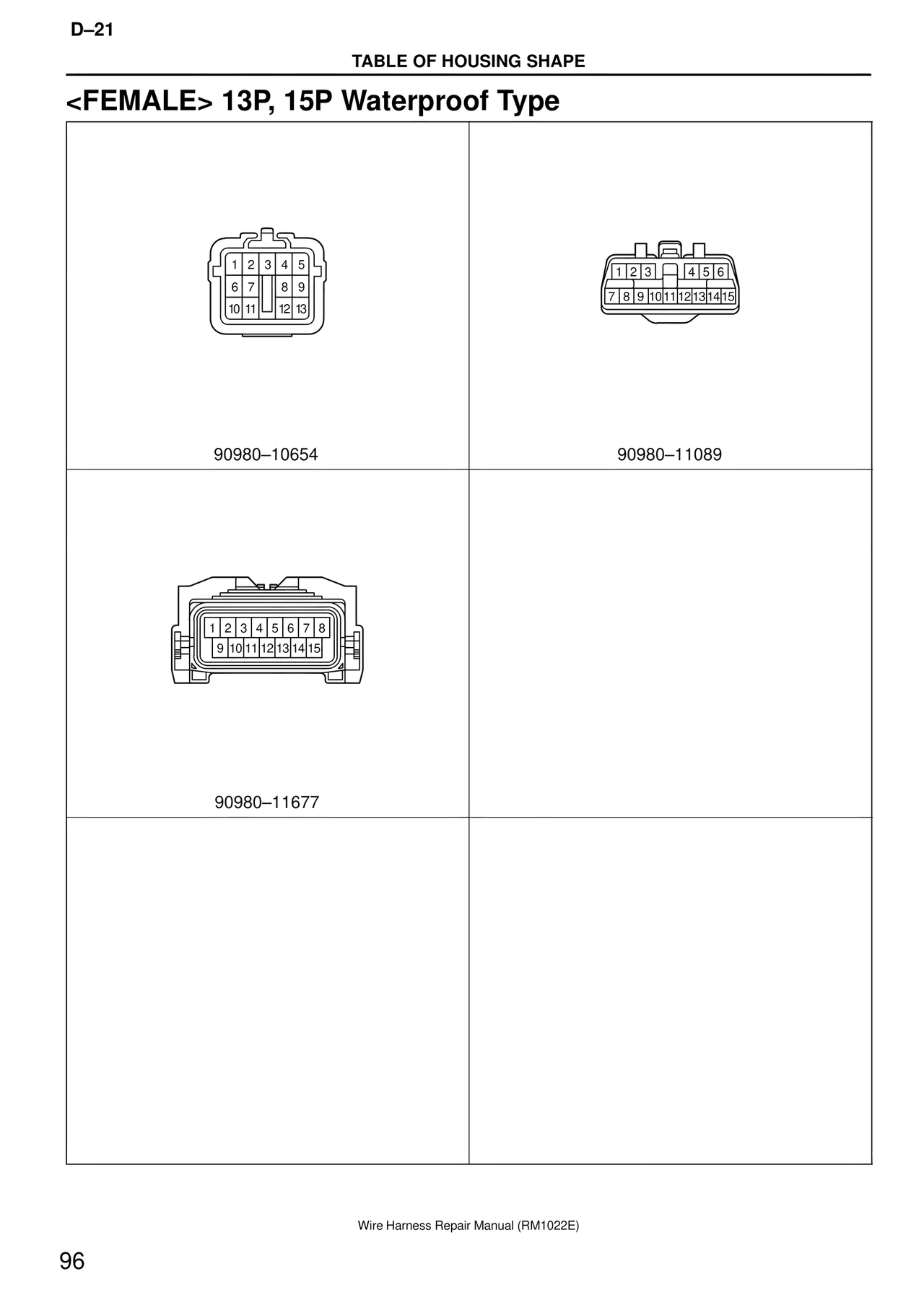

D–21 TABLE OF HOUSING SHAPE <FEMALE> 13P, 15P Waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 90980–10654 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11089 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 90980–11677 Wire Harness Repair Manual (RM1022E) 96
