D–22

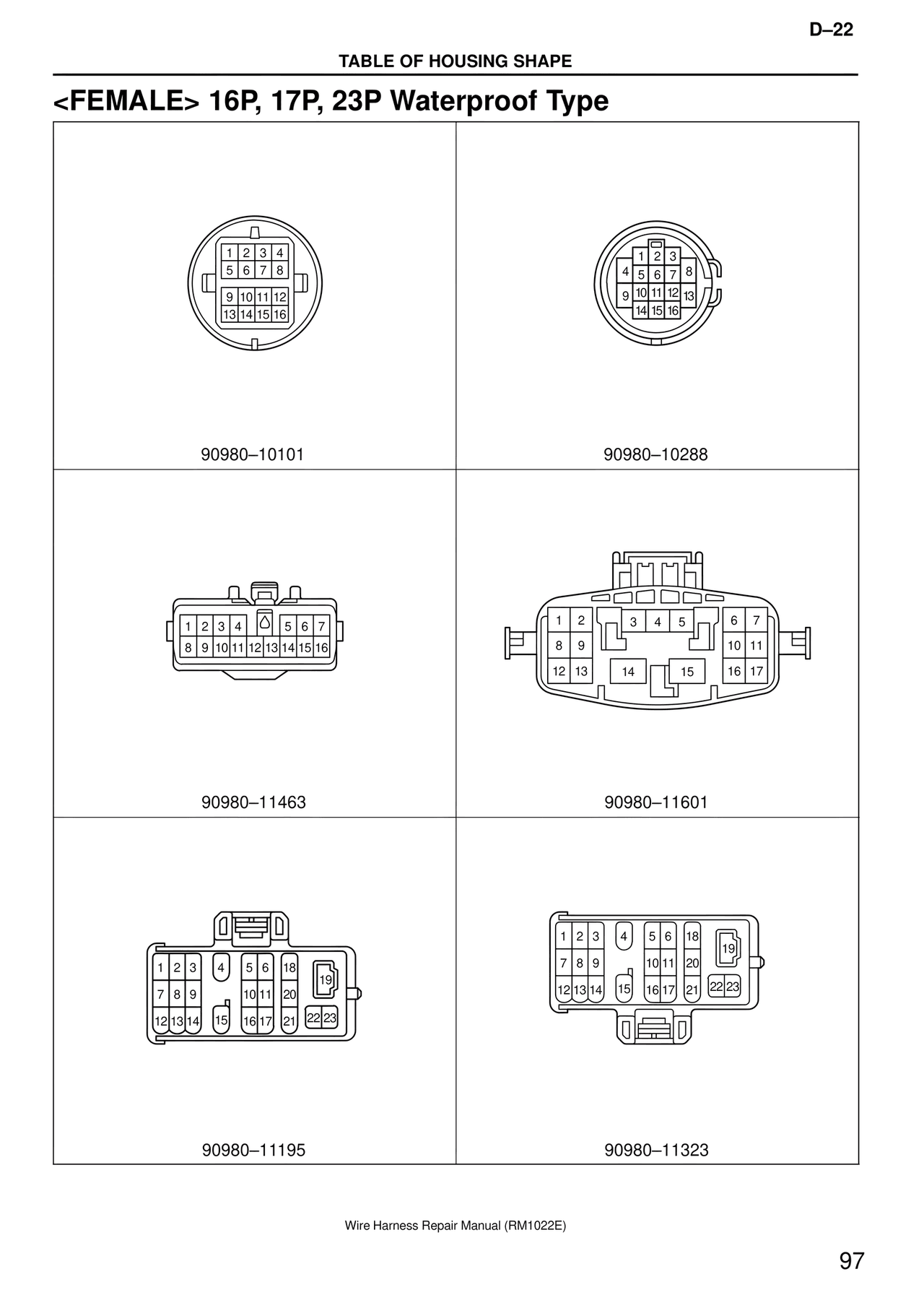

TABLE OF HOUSING SHAPE

<FEMALE> 16P, 17P, 23P Waterproof Type

1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16

90980–10101

1 2 3
4 5 6 7 8
9 10 11 12 13
14 15 16

90980–10288

1 2 3 4  5 6 7
8 9 10 11 12 13 14 15 16

90980–11463

1 2  3 4 5  6 7
8 9        10 11
12 13  14  15  16 17

90980–11601

1 2 3  4  5 6 18    19
7 8 9    10 11 20
12 13 14  15  16 17 21  22 23

90980–11195

1 2 3  4  5 6 18    19
7 8 9    10 11 20
12 13 14  15  16 17 21  22 23

90980–11323

Wire Harness Repair Manual (RM1022E)

97
