<FEMALE> 24P, 25P Waterproof Type — MK4 Supra Wire Harness, page 98
100%

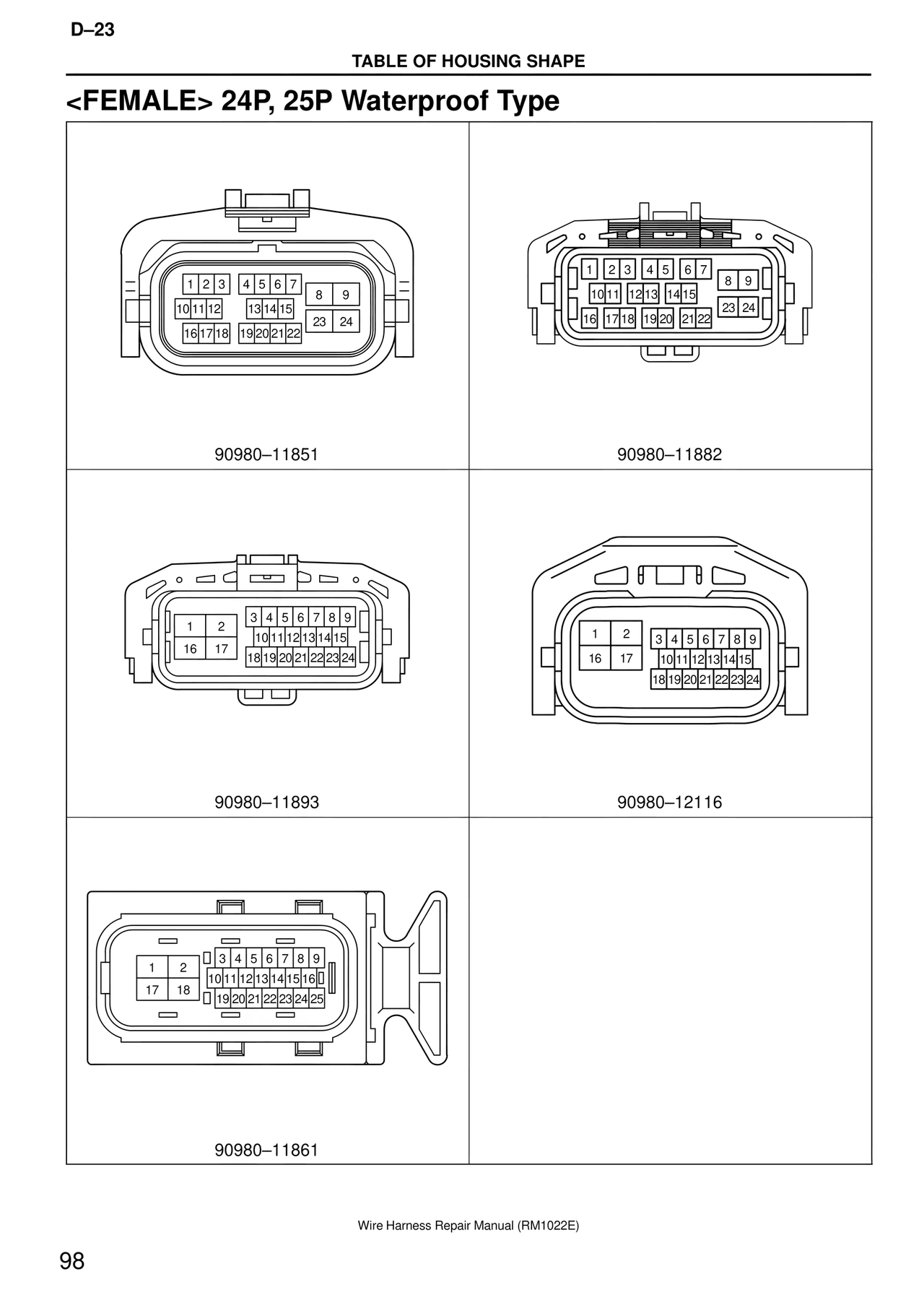

D–23 TABLE OF HOUSING SHAPE <FEMALE> 24P, 25P Waterproof Type 1 2 3 4 5 6 7 10 11 12 13 14 15 8 9 16 17 18 19 20 21 22 23 24 90980–11851 1 2 3 4 5 6 7 10 11 12 13 14 15 8 9 16 17 18 19 20 21 22 23 24 90980–11882 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–11893 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–12116 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 90980–11861 Wire Harness Repair Manual (RM1022E) 98
