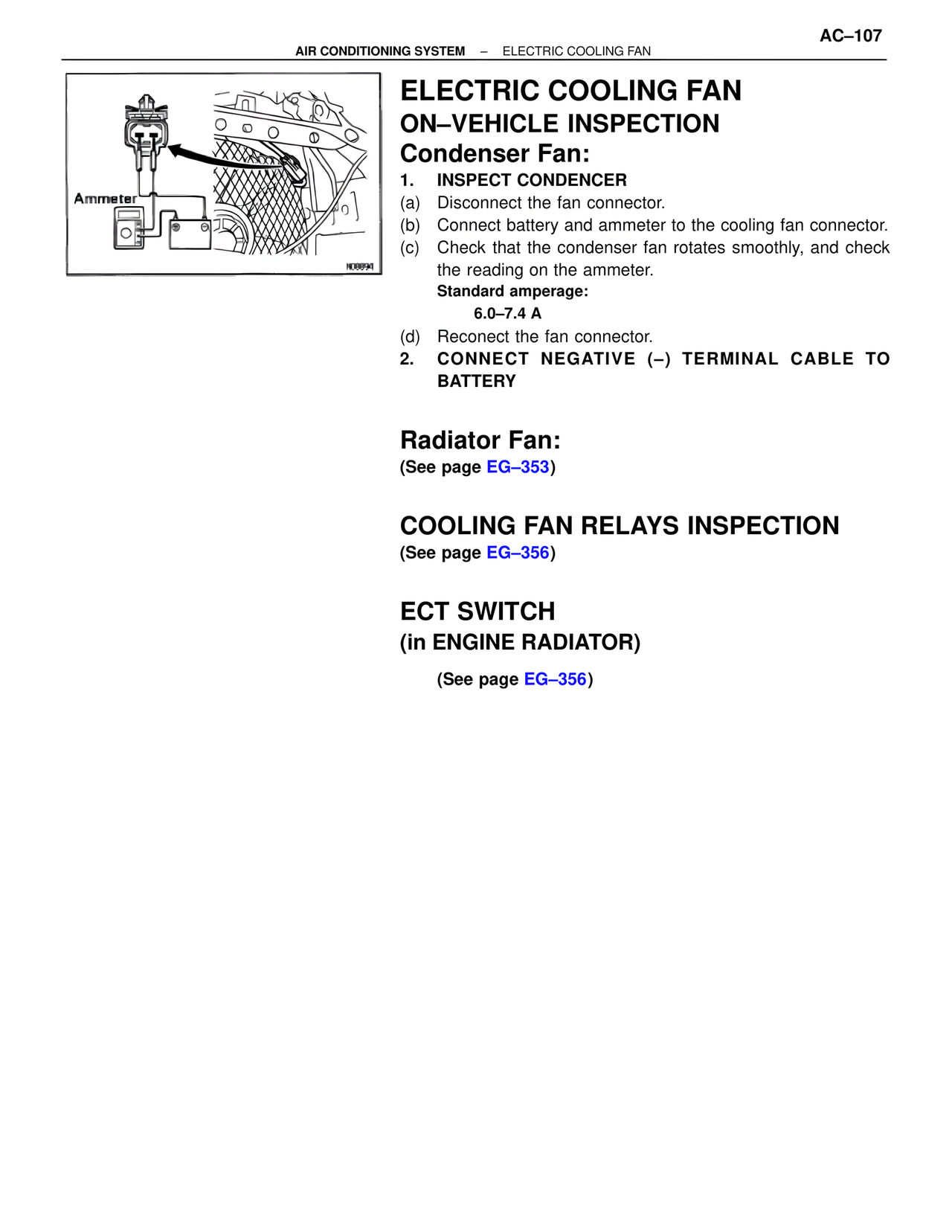

ELECTRIC COOLING FAN ON–VEHICLE INSPECTION Condenser Fan: 1. INSPECT CONDENCER (a) Disconnect the fan connector. (b) Connect battery and ammeter to the cooling fan connector. (c) Check that the condenser fan rotates smoothly, and check the reading on the ammeter. Standard amperage: 6.0–7.4 A (d) Reconect the fan connector. 2. CONNECT NEGATIVE (–) TERMINAL CABLE TO BATTERY Radiator Fan: (See page EG–353) COOLING FAN RELAYS INSPECTION (See page EG–356) ECT SWITCH (in ENGINE RADIATOR) (See page EG–356) Ammeter N08891
