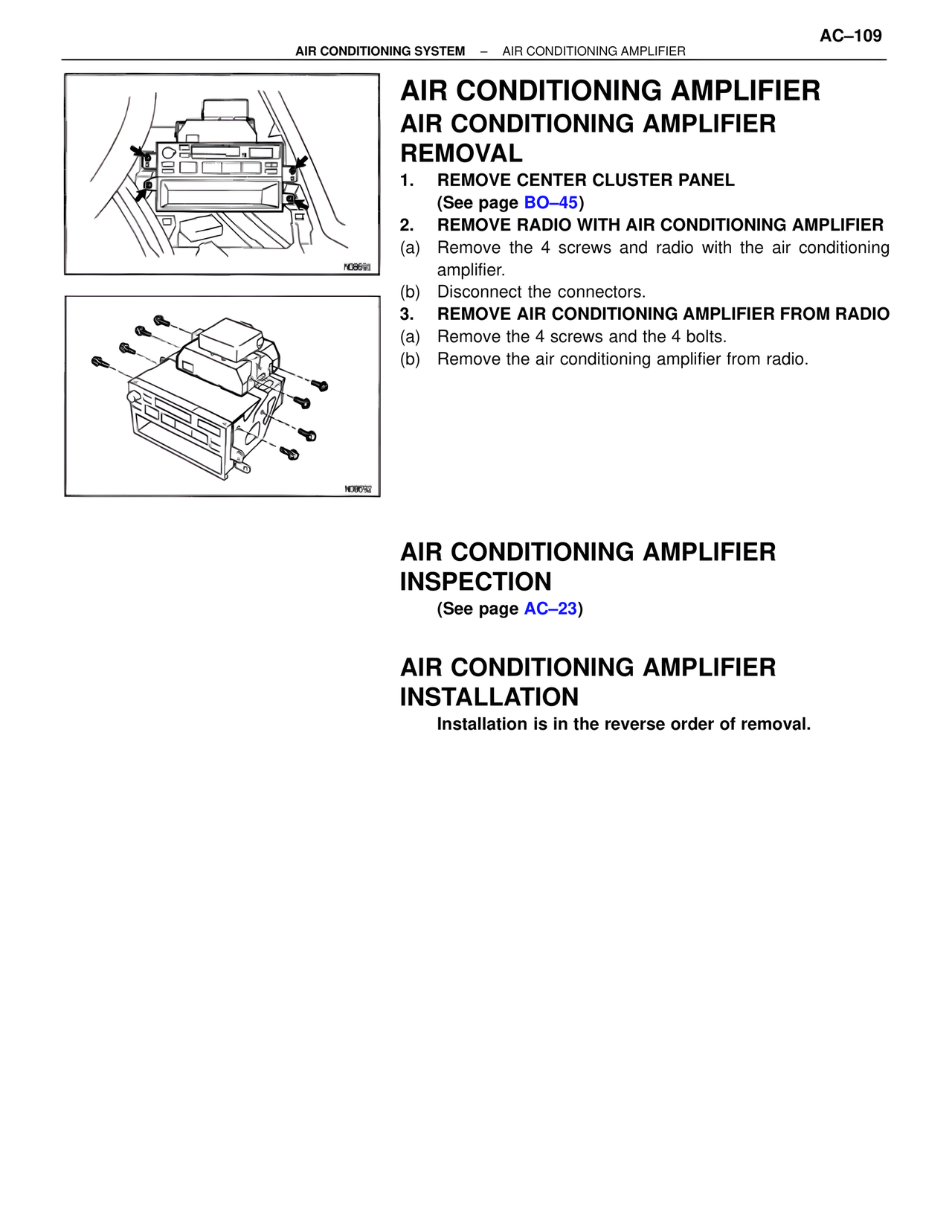

AIR CONDITIONING AMPLIFIER AIR CONDITIONING AMPLIFIER REMOVAL 1. REMOVE CENTER CLUSTER PANEL (See page BO–45) 2. REMOVE RADIO WITH AIR CONDITIONING AMPLIFIER (a) Remove the 4 screws and radio with the air conditioning amplifier. (b) Disconnect the connectors. 3. REMOVE AIR CONDITIONING AMPLIFIER FROM RADIO (a) Remove the 4 screws and the 4 bolts. (b) Remove the air conditioning amplifier from radio. AIR CONDITIONING AMPLIFIER INSPECTION (See page AC–23) AIR CONDITIONING AMPLIFIER INSTALLATION Installation is in the reverse order of removal. N08699 N08692
