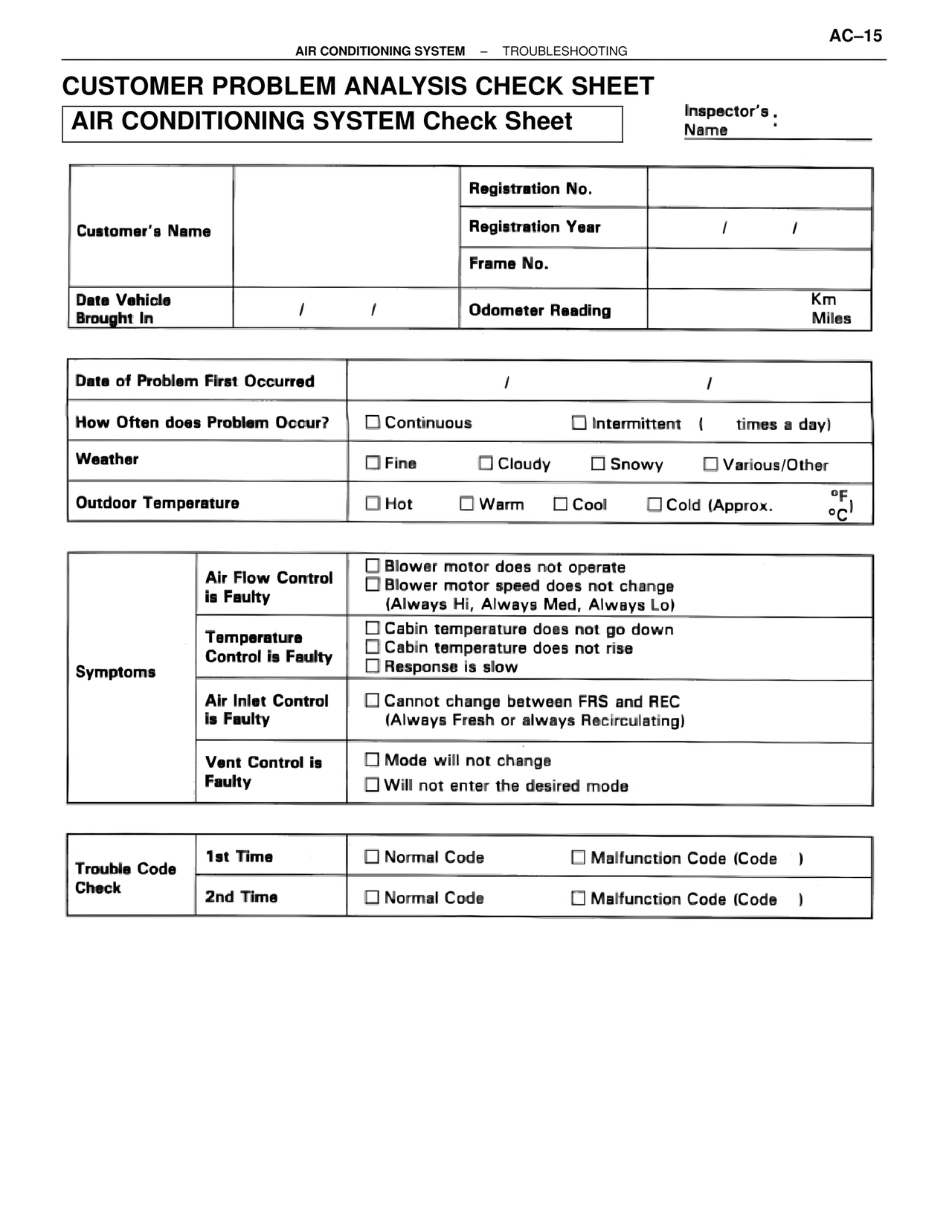

AC–15 AIR CONDITIONING SYSTEM – TROUBLESHOOTING CUSTOMER PROBLEM ANALYSIS CHECK SHEET AIR CONDITIONING SYSTEM Check Sheet Inspector's Name: Customer's Name Registration No. Registration Year / / Frame No. Date Vehicle Brought In / / Odometer Reading Km Miles Date of Problem First Occurred / / How Often does Problem Occur? □ Continuous □ Intermittent ( times a day) Weather □ Fine □ Cloudy □ Snowy □ Various/Other Outdoor Temperature □ Hot □ Warm □ Cool □ Cold (Approx. °F °C) Symptoms Air Flow Control is Faulty □ Blower motor does not operate □ Blower motor speed does not change (Always Hi, Always Med, Always Lo) Temperature Control is Faulty □ Cabin temperature does not go down □ Cabin temperature does not rise □ Response is slow Air Inlet Control is Faulty □ Cannot change between FRS and REC (Always Fresh or always Recirculating) Vent Control is Faulty □ Mode will not change □ Will not enter the desired mode Trouble Code Check 1st Time □ Normal Code □ Malfunction Code (Code ) 2nd Time □ Normal Code □ Malfunction Code (Code )
